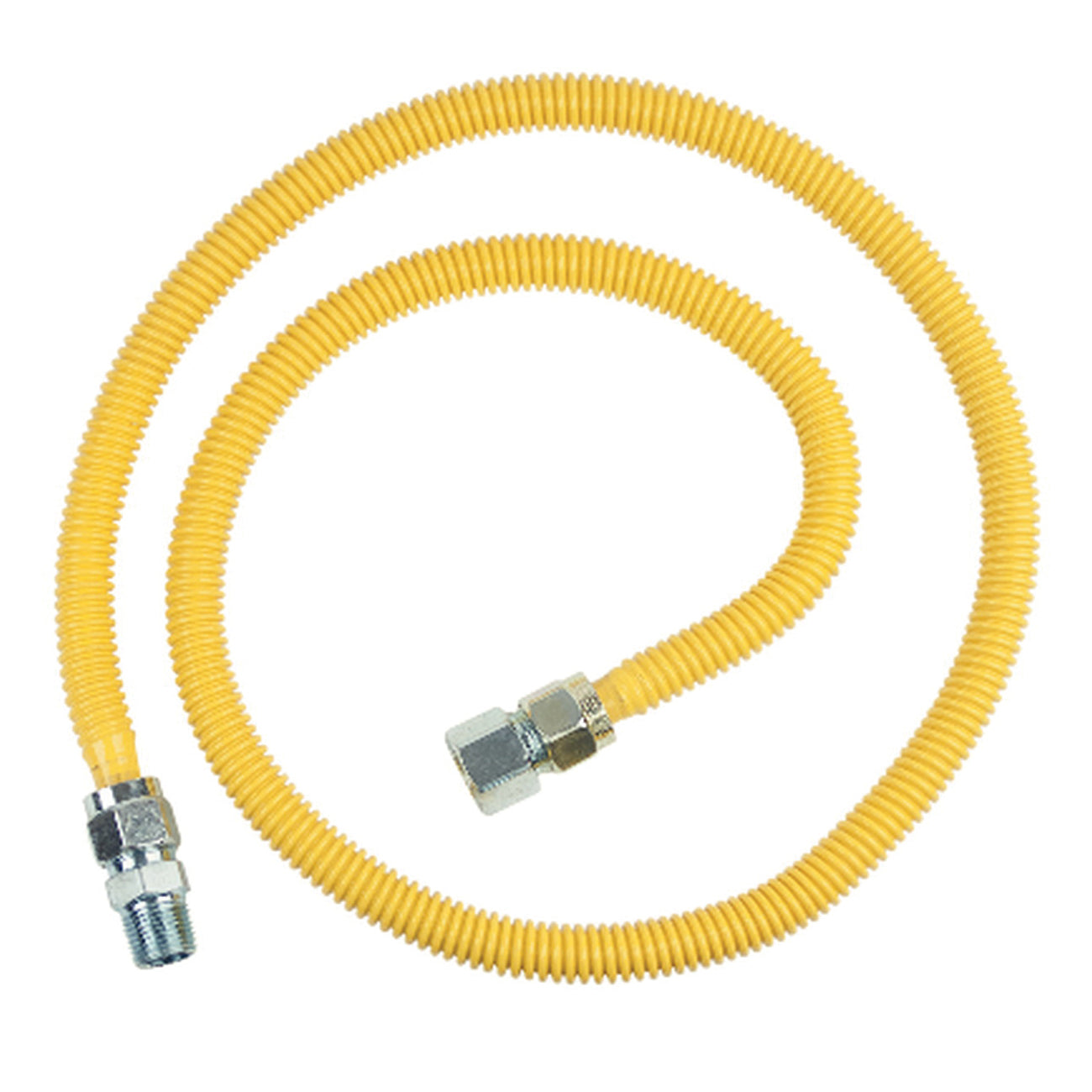

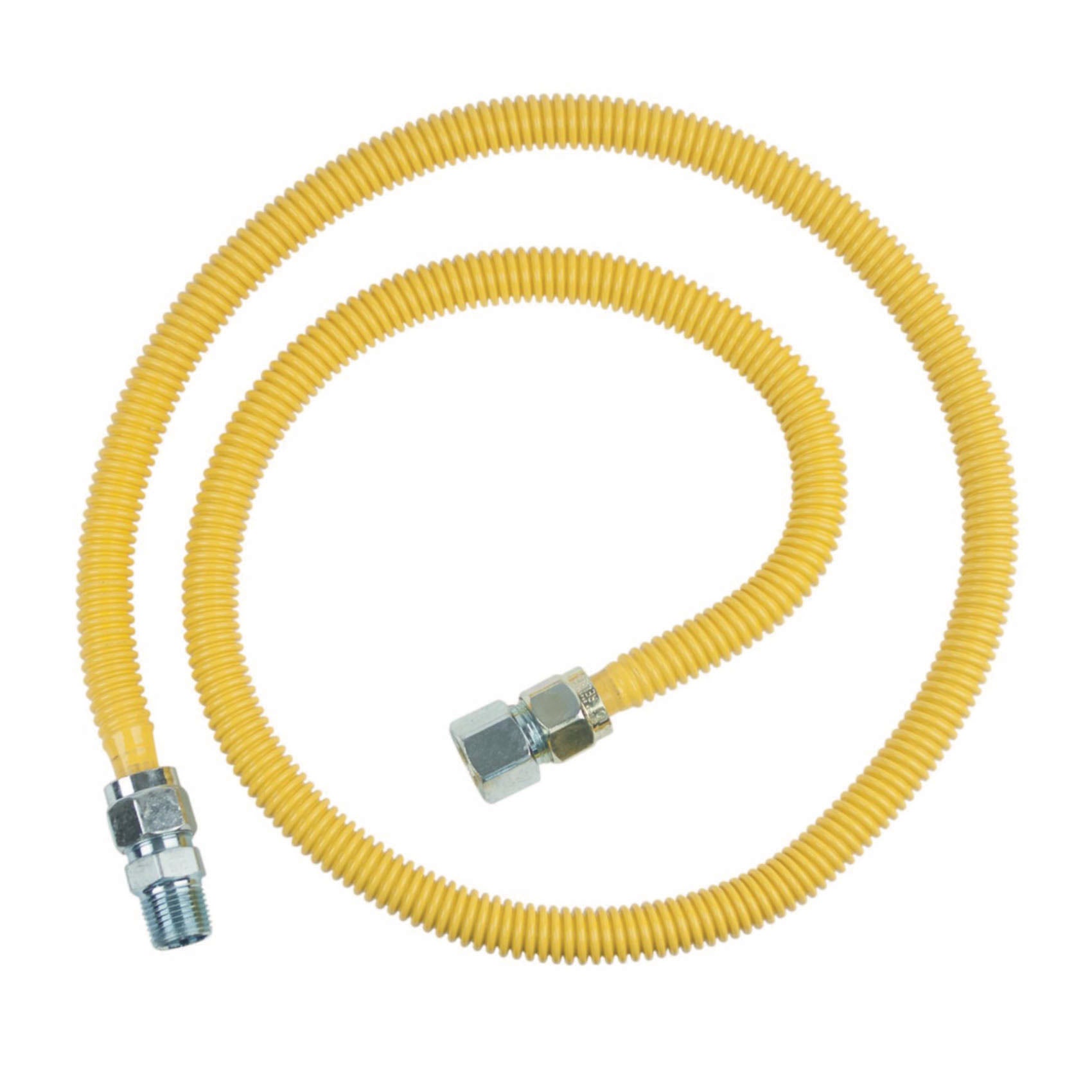

Dormont cssc24-60 Ss Gas Connector 3/4x1/2 Mnpt Fnpt 60in

Product Description

The DORMONT cssc24-60 is a corrugated stainless steel gas connector designed for residential and light-commercial gas appliance installations. It features a proprietary polymer coating applied via advanced powder-coat technology, baked directly onto the connector surface at high temperatures after 100% leak testing. This process delivers uniform corrosion resistance across the full 60-inch length. The 3/4 x 1/2 inch nominal connector uses male NPT (MNPT) to female NPT (FNPT) end fittings, with a 5/8-inch outside diameter. Licensed plumbers and gas fitters are the primary installers on this type of connector.

This gas connector is suited for connecting natural gas or liquid propane appliances — such as ranges, dryers, and water heaters — to the supply line in residential applications. The 60-inch length provides adequate reach for appliances that sit away from the wall or require routing around cabinetry. The protective polymer coating is engineered to resist prolonged exposure to household chemicals, UV rays, and salt, making it well suited for installations in coastal environments or utility areas where cleaning chemicals are commonly used.

Key Features

• Proprietary polymer coating baked onto connector surface after 100% leak testing for uniform, complete corrosion resistance
• Corrugated stainless steel construction for flexibility and durability in gas line connections
• 60-inch length accommodates appliances requiring extended reach from the gas supply point
• MNPT x FNPT end style for direct connection to standard NPT gas supply fittings
• Coating engineered to resist household chemicals, UV exposure, and salt environments
• Domestically manufactured

Compatibility

Designed as an OEM-style replacement or new-installation gas connector for residential gas appliances using standard NPT threaded supply connections in the 3/4 x 1/2 inch nominal size range.

Installation Notes

Gas connector installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the meter or main valve before disconnecting or connecting any gas line components. Apply an approved pipe thread sealant or PTFE tape rated for gas service on all threaded connections, and verify all joints with a leak-detection solution or approved meter after restoring gas pressure. Do not kink, over-bend, or use this connector as a permanent rigid pipe substitute.

Technical Specifications

• Series: CSSC24
• Nominal Size: 3/4 x 1/2 inches
• End Style: MNPT x FNPT
• Outside Diameter: 5/8 inches
• Length: 60 inches
• Material: Stainless Steel
• Finish: Coated (Polymer ProCoat)
• Country of Origin: Domestic

Standard Information

• Brand: DORMONT
• Manufacturer Part Number: cssc24-60
