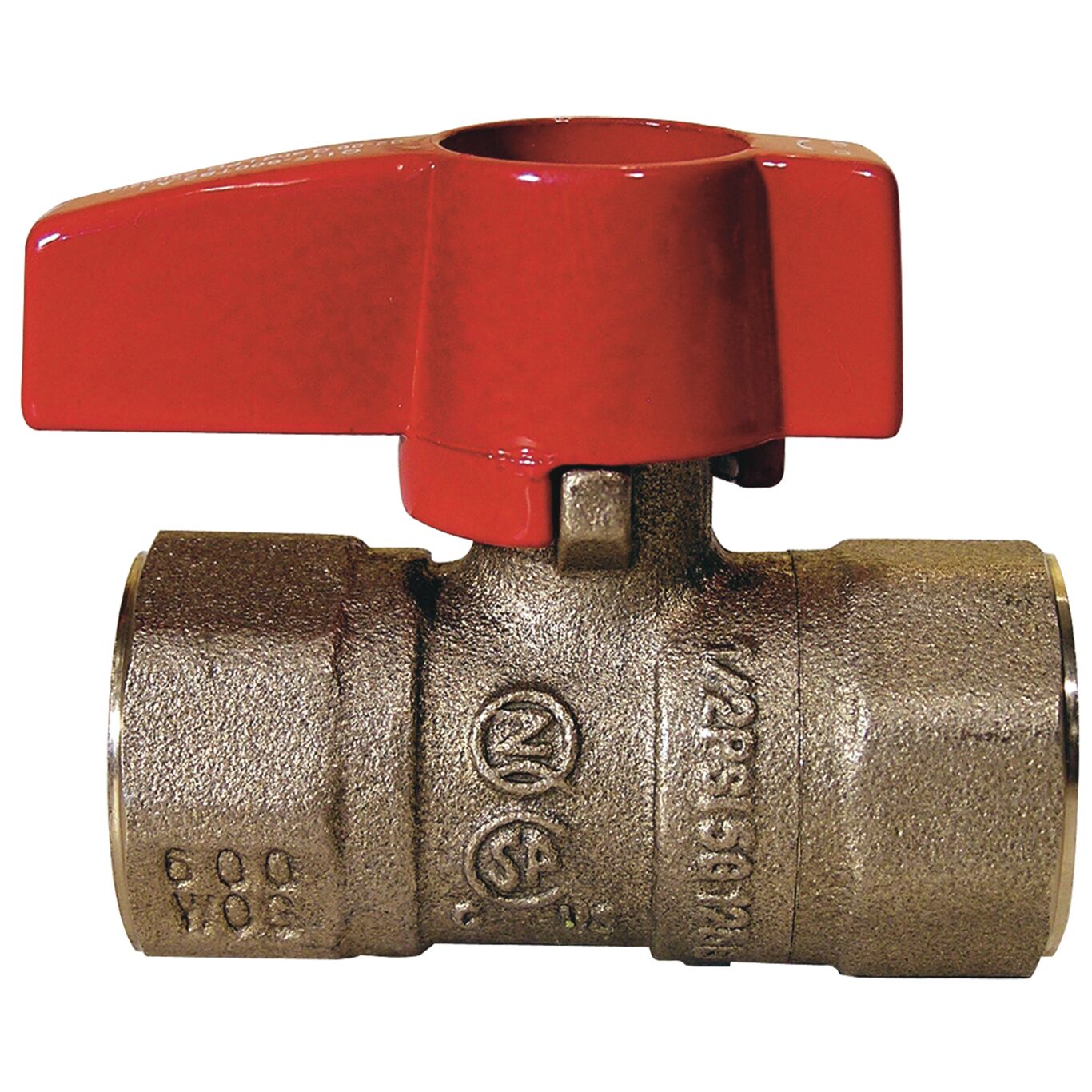

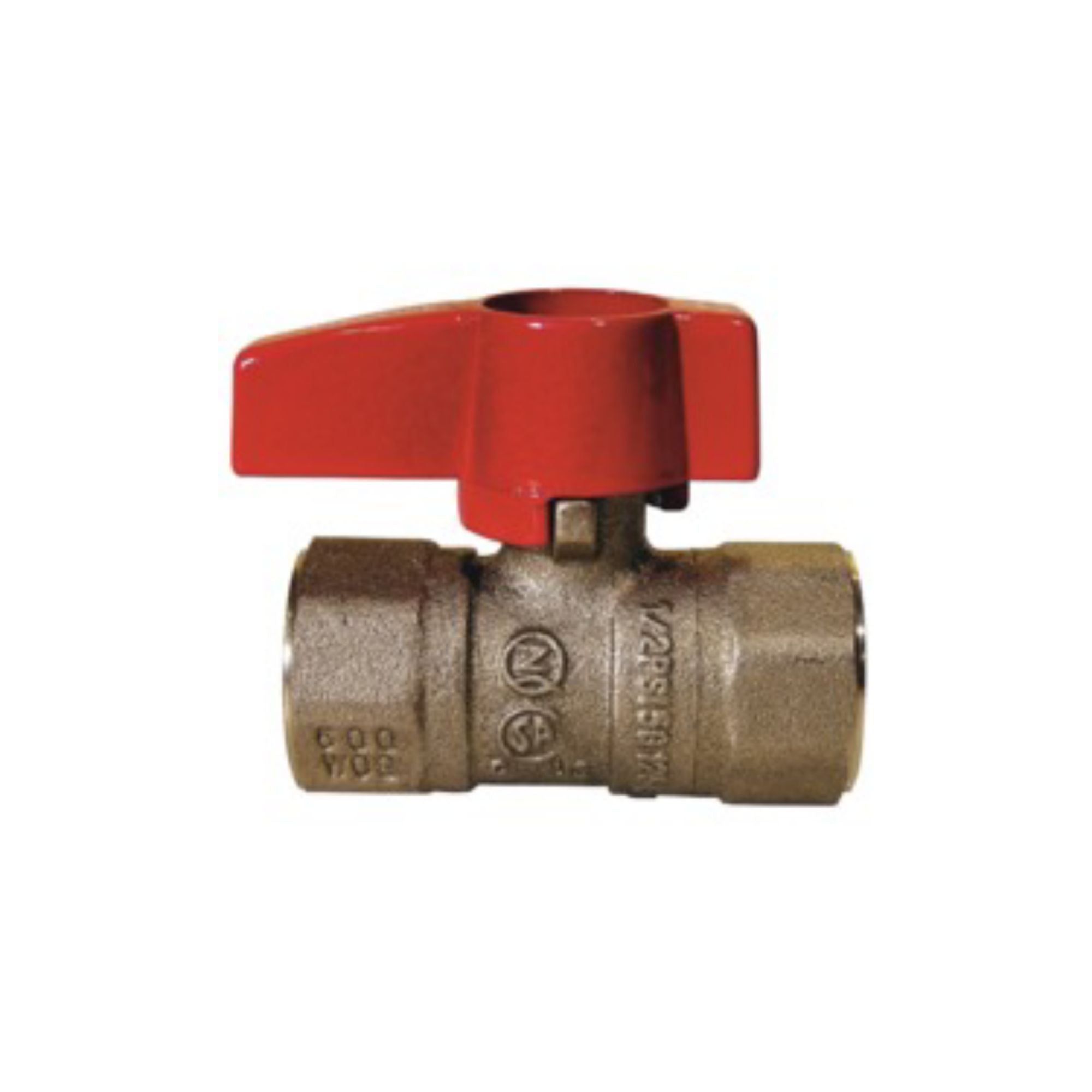

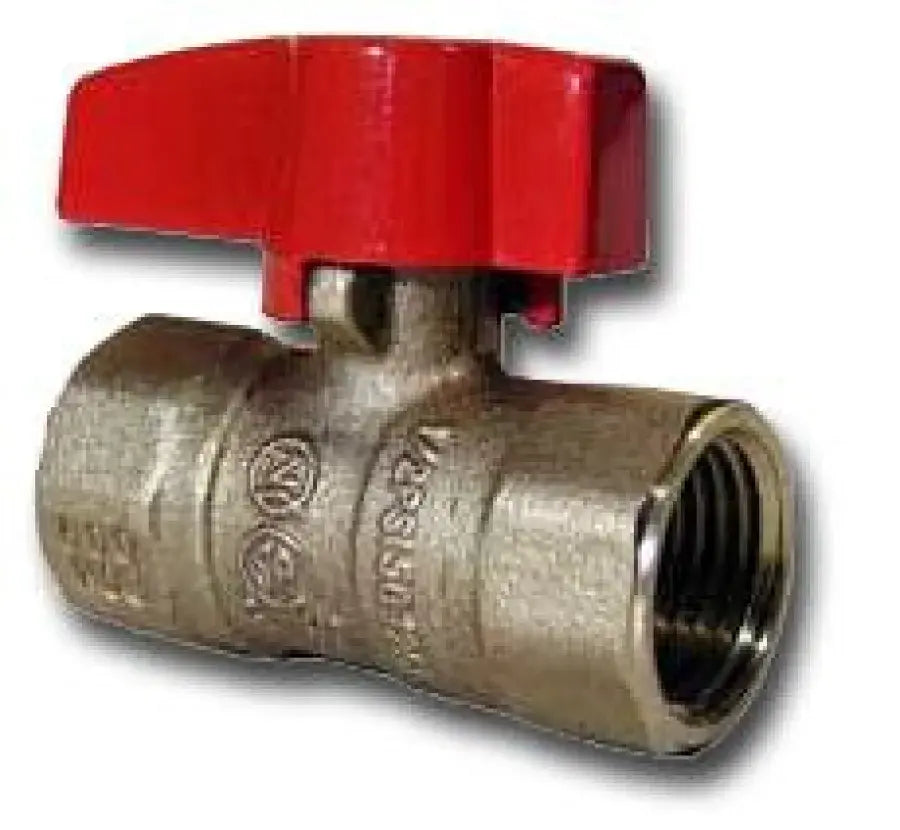

Dormont 92-3232 Gas Shutoff Valve 1/2 inches FIP x 1/2 inches FIP

Product Description

The DORMONT 92-3232 gas shutoff valve features a 1/2" FIP x 1/2" FIP connection. Constructed with a forged brass body, this valve is designed to eliminate potential leaks. It is approved and design certified by CSA for use with various gases. The valve is also 100% factory leak tested.

• Quarter turn handle design for easy on and off operation
• Large wrench flats allow for quick and easy installation
• Forged brass body

Product Highlights

This straight gas shutoff valve is suitable for use with natural, manufactured, mixed liquefied petroleum gases, and LP gas-air mixtures.

Product Information

Standard Information

• Brand: DORMONT
• Manufacturer Part Number: 92-3232

Technical Specifications

• EAN: 0662447000267
• UPC: 662447000267
• Size: 1/2" FIP x 1/2" FIP
• Type: Gas Ball Valve
• Brand: Dormont
• Prop 65: Yes
• Composition: Brass
• For Use With: Ranges and Furnaces
• Connection Size: 1/2"
• Pressure Rating: 600 WOG
• Maximum Pressure (PSI): 600 WOG
• Finish: Brass
• Fitting Name: Gas Shutoff Valve
• Inlet Connection Size: 1/2 IN
• Inlet Connection Size-Metric: 13 MM
• Inlet Connection Type: Female Threaded
• Inlet Material: Brass
• Inlet Thread Type: IPS
• Material: Brass
• Outlet Connection Size: 1/2 IN
• Outlet Connection Size-Metric: 13 MM
• Outlet Connection Type: Female Threaded
• Outlet Material: Brass
• Outlet Thread Type: IPS
• Product Market Application: Residential
• Suitable for Gas Service: Yes
• Manufacturers: Watts Water Technologies
• MPN: 92-3232
• Size (In.): 1/2 x 1/2
