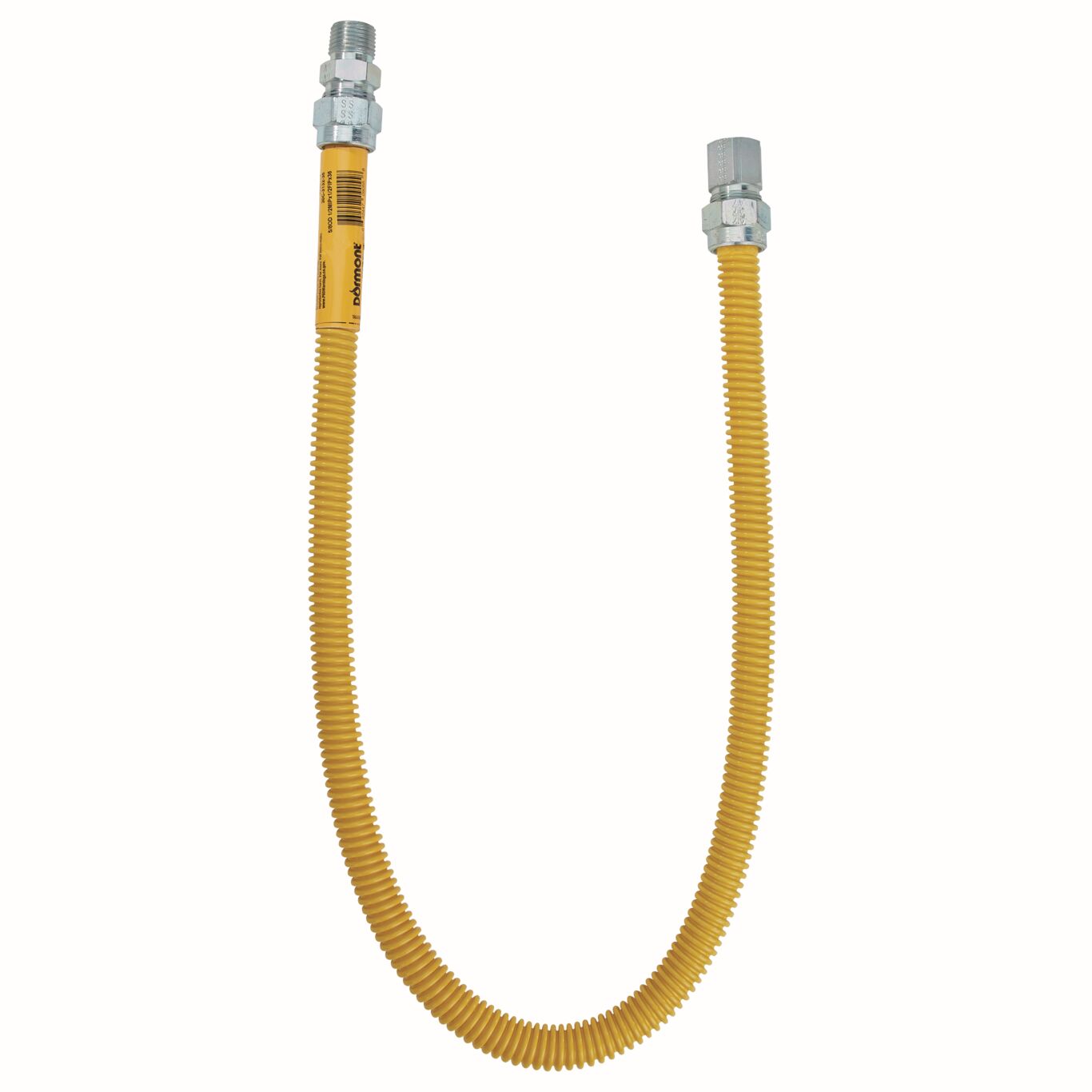

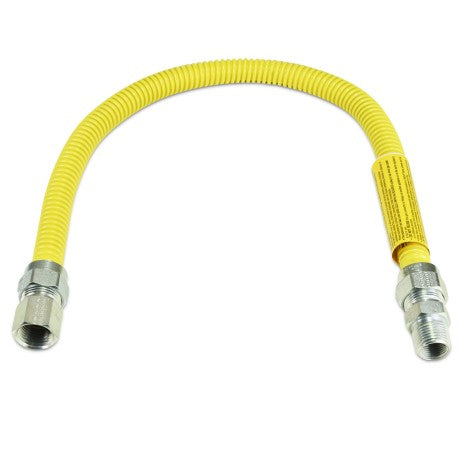

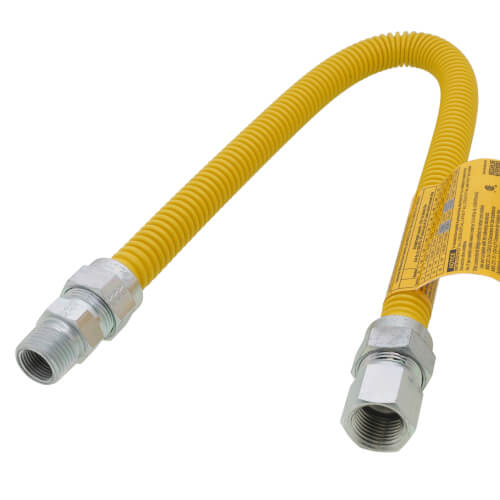

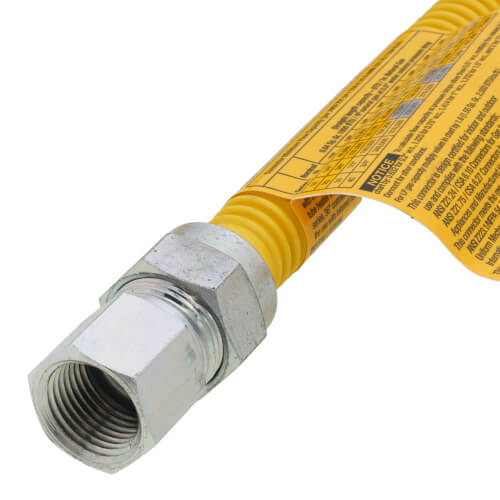

DORMONT 30C-3132-24 Gas Connector 1/2 ID x 5/8 OD 24 Length

Product Description

The Dormont 30C-3132-24 is a gas connector made from durable stainless steel. This connector measures 24 inches in length and has a connection type of 1/2 inch MIP and 1/2 inch FIP. It features a yellow coating for added corrosion protection and is suitable for both indoor and outdoor use. It is commonly installed with appliances such as gas ranges and furnaces.

• Made from annealed 304 stainless steel
• Capable of supporting heating systems with BTU ratings of up to 240,000 for LPG and 150,000 for natural gas
• CSA certified for safety

Product Highlights

This gas connector is designed for residential applications, ensuring safe and efficient gas flow. Its robust material and design make it suitable for various heating needs.

Product Information

Standard Information

• Brand: Dormont
• Material: Stainless Steel

Technical Specifications

• Connection Type: FIP x MIP
• Length: 24 inches
• NG Capacity: 150000 BTU
• LP Capacity: 240000 BTU
• Inner Diameter: 1/2 inches
• Outer Diameter: 5/8 inches
• Application: Heating, Furnace
• Temperature Rating: -40°F to 150°F
• Maximum Pressure: Up to 1/2 PSI
