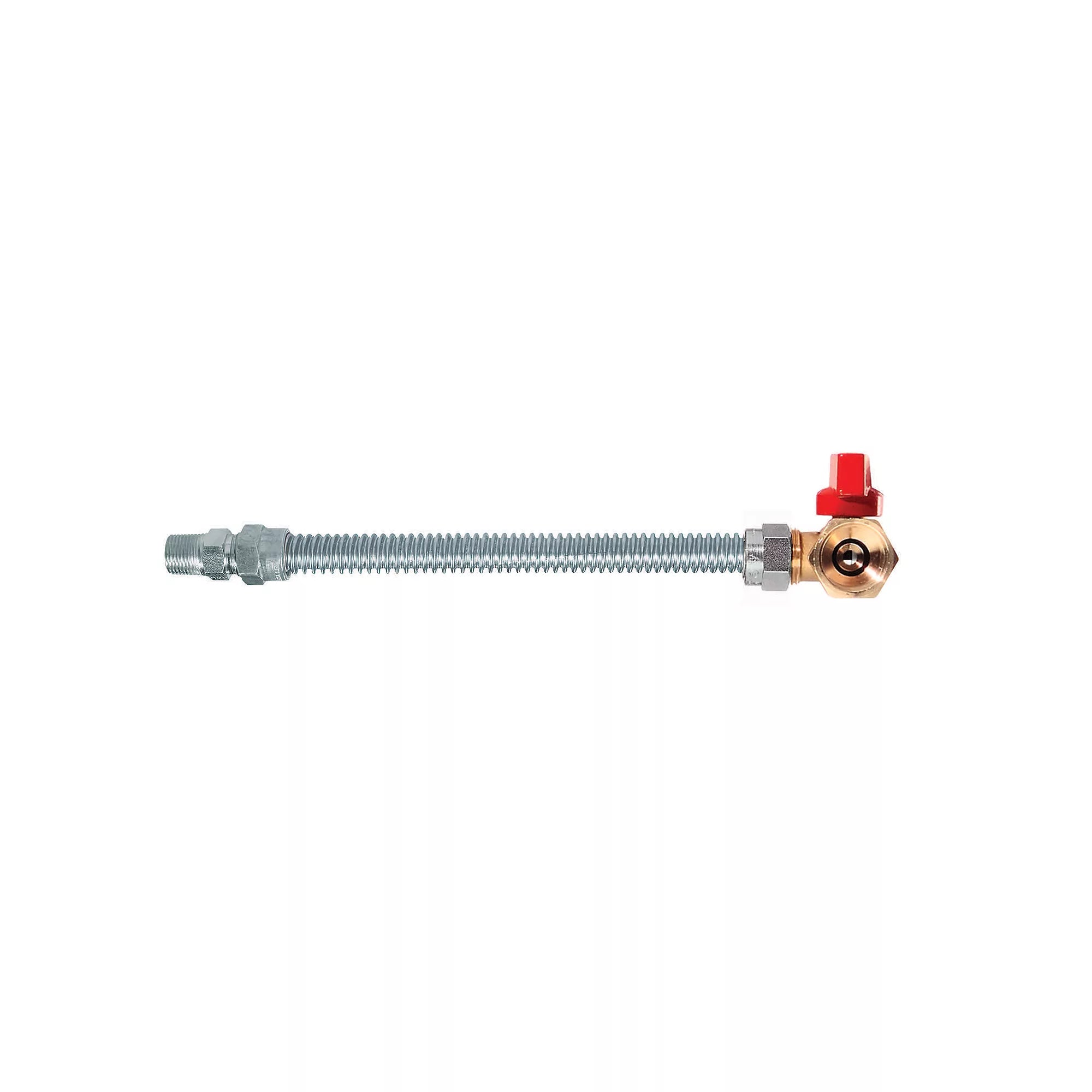

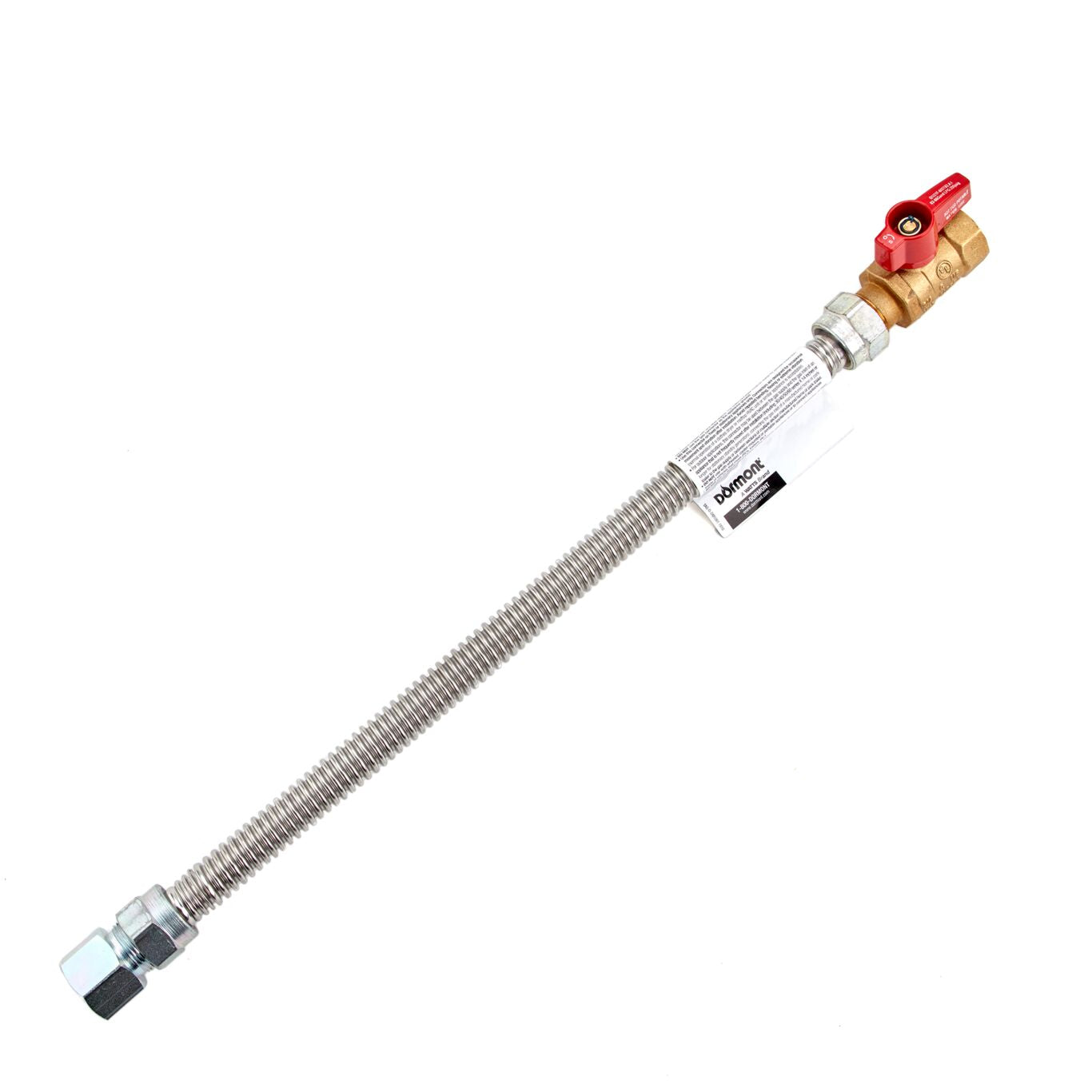

Dormont 30-4245-36 5/8 inches OD, 1/2 inches ID Stainless Steel Gas Connector, 3/4 inches FIP x 3/4 inches FIP Ball Valve, 36 inches Length

Product Description

The Dormont 30-4245-36 is a 5/8" OD, 1/2" ID stainless steel gas connector with a 3/4" FIP x 3/4" FIP ball valve and a 36" length. Constructed from 304 stainless steel, it is suitable for use with ranges and furnaces. This gas connector has a flow rate of 125,000 BTU/Hour and a maximum pressure of 0.5 PSI.

• Designed and certified by CSA for indoor and outdoor use
• Durable and corrosion resistant
• 304 Stainless steel

Product Highlights

This stainless steel gas connector is designed for durability and safety, commonly used for installing home appliances like gas ranges and furnaces.

Product Information

Standard Information

• Brand: DORMONT
• Manufacturer Part Number: 30-4245-36
• Country of Origin: USA

Technical Specifications

• Brand: Dormont
• Composition: 304 Stainless Steel
• Connection Size: 1/2" x 3/4"
• Diameter: .625"
• Flow Rate: 125,000 BTU/Hour
• For Use With: Ranges and Furnaces
• Inside Diameter: 1/2"
• Length: 36 IN
• Maximum Pressure (PSI): 0.5
• Outside Diameter: 5/8"
• Overall Length: 36"
• Pressure Rating: 0.5" Water Column Pressure Drop
• Prop 65: Yes
• Tube Size: 5/8"
• UPC: 662447017043
• Country of Origin: USA
• UL Listed: No
• Application: Built-In BBQ Grill|Range|Oven|Cooktop|Furnace|Infrared Tube Heater
• Body Material: Stainless Steel
• Buy American Act Compliant: NO
• Coating: Uncoated
• Design Certification: ANSI Z21.24/CSA 6.10, ANSI Z21.75/CSA 6.27
• End Connection 1 Size: 3/4 IN
• End Connection 1 Style: Flare Fitting
• End Connection 1 Thread Type: IPS
• End Connection 1 Type: Female Threaded
• End Connection 2 Size: 3/4 IN
• End Connection 2 Style: Straight Valve
• End Connection 2 Thread Type: IPS
• End Connection 2 Type: Female Threaded
• Inner Diameter: 1/2 IN
• Lead Free: Not In Scope
• Product Market Application: Residential
