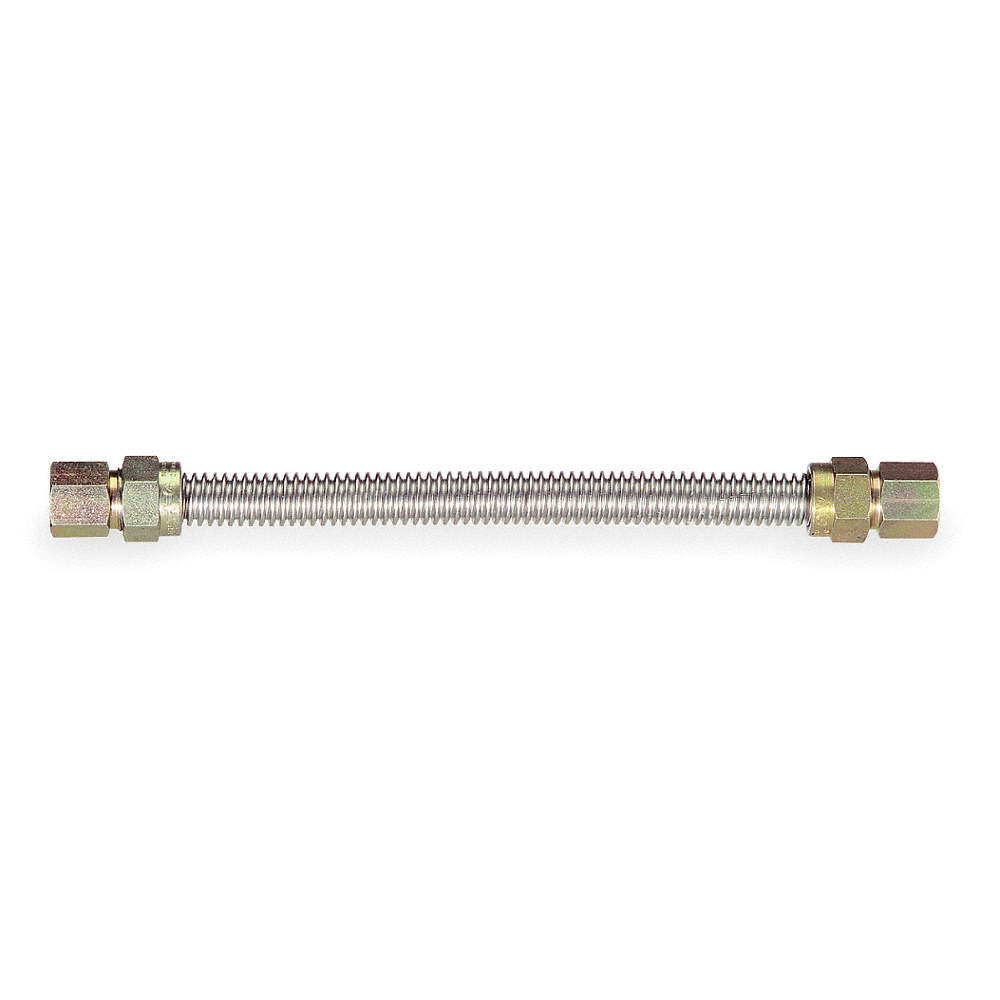

DORMONT 30-4242-48 Gas Connector

Product Description

The Dormont 30-4242-48 is a gas connector measuring forty-eight inches in length with an outer diameter of five-eighths inch and an inner diameter of one-half inch. This connector is made from ASTM A240 annealed 304 stainless steel and has brass and plated steel end fittings. It is ideal for both residential and commercial uses, including gas ranges, furnaces, ovens, cooktops, and built-in BBQ grills. The connector features three-fourths inch female pipe thread (FPT) end connections on both sides with flare fittings and IPS thread types. It meets the ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27 certifications and supports a flow capacity of one hundred six thousand BTU per hour for natural gas and one hundred sixty-nine thousand six hundred BTU per hour for propane. Its operating temperature ranges from negative forty to one hundred fifty degrees Fahrenheit.

• Constructed from durable 304 stainless steel to resist corrosion.
• Flared end adapters ensure a secure metal-to-metal seal.
• Certified for safe use in both indoor and outdoor applications.

Product Highlights

The Dormont 30-4242-48 gas connector is designed for reliability and versatility in various gas appliance installations.

Product Information

Standard Information

• Application: Residential, Commercial, Indoor, Outdoor, Built-In BBQ Grill, Range, Oven, Cooktop, Furnace
• Manufacturer Name: Dormont

Technical Specifications

• First End Connection: 3/4 FPT
• Length: 48 inches
• Outside Diameter: 5/8 inch
• Second End Connection: 3/4 FPT
• Type: Gas Range, Gas Furnace, Gas Connectors
• Applicable Standard: ANSI Z21.24/CSA 6.10, ANSI Z21.75/CSA 6.27
• Inside Diameter: 1/2 inch
• Temperature Rating: -40 to 150 degrees Fahrenheit
• Minimum Flow Capacity: 106000 BTU/HR (Natural Gas), 169600 BTU/HR (Propane Gas)
• Body Material: Stainless Steel
• MPN: 30-4242-48
• UPC: 662447004548
• Color: Multicolor
• Manufacturer Part #: 30-4242-48
