DORMONT 30-4242-18 Gas Connector - 1/2 ID, 5/8 OD, 3/4 FIP x 3/4 FIP, 18 Length

Product Description

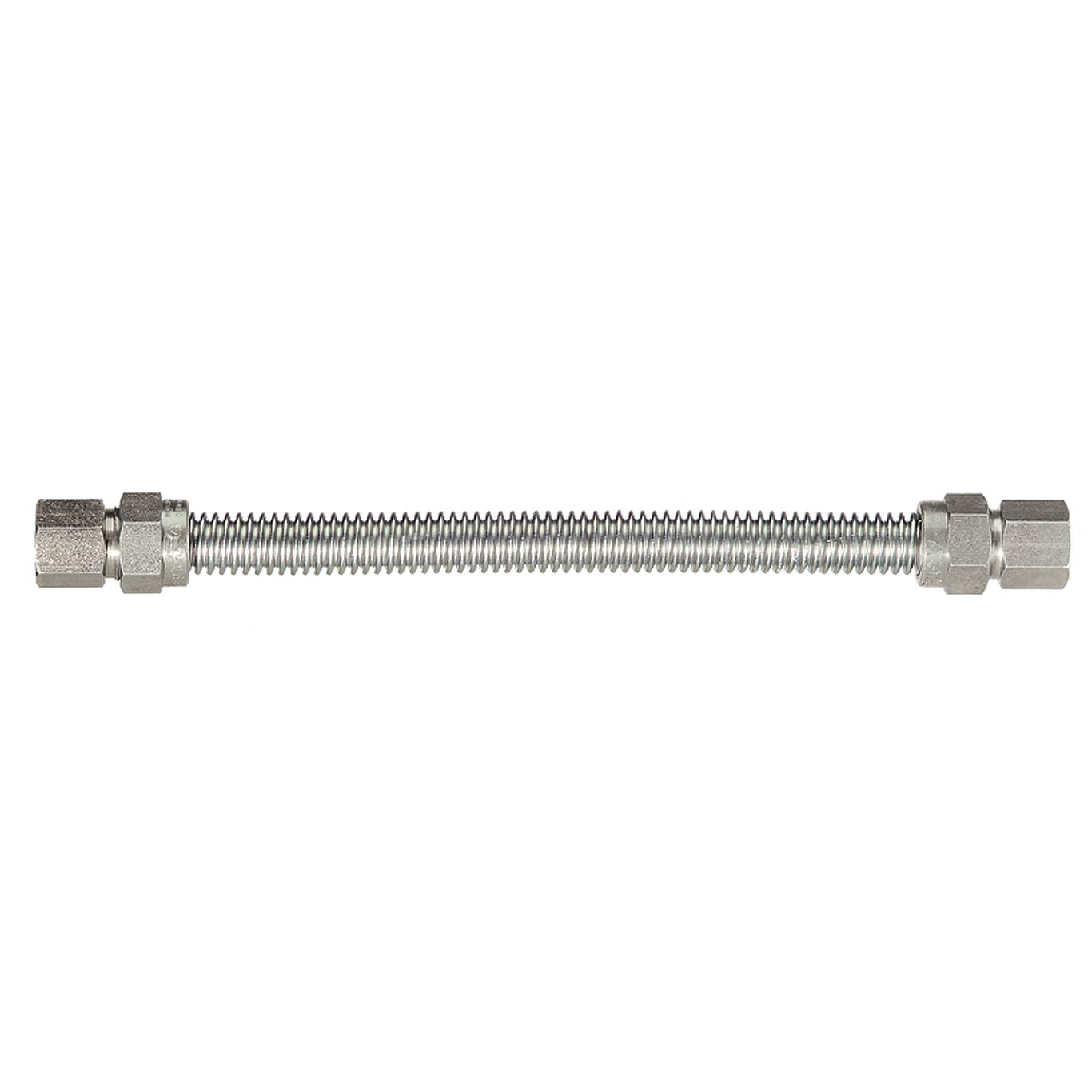

The DORMONT 30-4242-18 is an 18-inch gas connector designed for reliable connections in various residential applications. With a 1/2-inch inner diameter and a 5/8-inch outer diameter, it is built from ASTM A240 annealed 304 stainless steel, ensuring resistance to corrosion.

• Features a no-neck design for improved tubing flexibility.
• Constructed with durable 304 stainless steel.
• Certified for safety in both indoor and outdoor use.

Product Highlights

This gas connector is suitable for built-in BBQ grills, ranges, ovens, cooktops, and furnaces. Designed to meet ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27 standards, it ensures safety and compliance. The connector's temperature rating ranges from -40 to 150 degrees Fahrenheit, with a minimum flow capacity of 164200 BTU/HR for natural gas and 262720 BTU/HR for propane gas.

Product Information

Standard Information

• Item: Gas Connector
• Manufacturer Name: DORMONT

Technical Specifications

• Body Material: Stainless Steel
• Inside Diameter: 1/2 inches
• Length: 18 inches
• Outside Diameter: 5/8 inches
• First End Connection: 3/4 FPT
• Second End Connection: 3/4 FPT
• End Connection: 3/4 Female Threaded x 3/4 Female Threaded
• Temperature Rating: -40 to 150 degrees Fahrenheit
