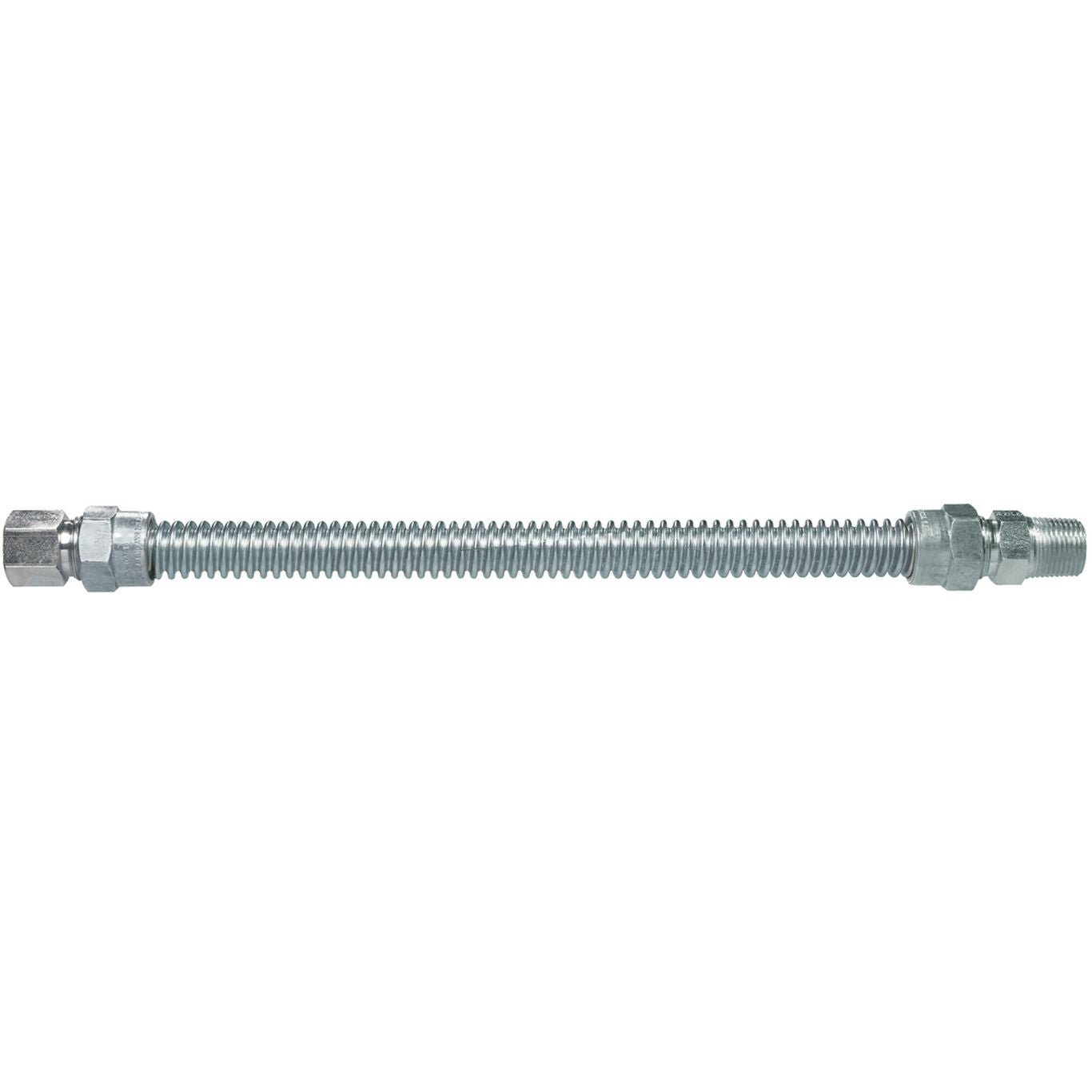

Dormont 30-3142-60 Gas Connector 60 Inch

Product Description

The DORMONT 30-3142-60 gas connector is a 60-inch hose with a 1/2 in inside diameter and 5/8 in outside diameter. Constructed from 304 stainless steel, it resists crushing, kinking, cracking, and corrosion. This connector is suitable for ranges, ovens, and furnaces, and adheres to ANSI and CSA standards.

• Hose Inside Dia. 1/2 in
• Hose Outside Dia. 5/8 in
• Hose Length 5 ft

Product Highlights

This stainless steel gas connector is ideal for gas appliance installation, offering durability and safety with its robust construction and compliance with industry standards.

Product Information

Standard Information

• Brand: DORMONT
• Manufacturer Part Number: 30-3142-60
• Country of Origin: United States

Technical Specifications

• Item: Gas Connector
• Size: 1/2" x 3/4"
• Resists: Crushing, Kinking, Cracking, Corrosion
• Standards: ANSI Z21.15, ANSI Z21.18/CSA 9.1, ANSI Z21.24, ANSI Z21.41, ANSI Z21.69, ANSI Z21.90, ANSI/UL 567, CSA 6.16, CSA 6.24. CSA 6.9, CSA 6.3
• Connection: MIP x FIP
• Hose Color: Silver
• Application: Ranges, Ovens, Furnaces
• Hose Length: 5 ft
• Temp. Range: -40 Degrees to 350 Degrees F
• BTU Capacity: 93,200
• Fitting Size: 1/2 in x 1/2 in
• Fitting Type: FNPT x FNPT
• For Use With: LP Gas Air Mixtures, LP Gas Systems, Manufactured Gas Air Mixtures, Natural Gas Air Mixtures
• Length (In.): 60
• Hose Fittings: 304 Stainless Steel 1/2 in FNPT x 304 Stainless Steel 1/2 in FNPT
• Hose Fitting A: 304 Stainless Steel 1/2 in MIP
• Hose Fitting B: 304 Stainless Steel 3/4 in FIP
• Fitting Material: 304 Stainless Steel x 304 Stainless Steel
• Hose Inside Dia.: 1/2 in
• Hose Outside Dia.: 5/8 in
• Hose Configuration: Coupled Assembly
• Hose Tube Material: 304 Stainless Steel
• Outside Dia. (In.): 5/8
• Hose Fitting A Size: 1/2 in
• Hose Fitting A Type: MIP
• Hose Fitting B Size: 3/4 in
• Hose Fitting B Type: FIP
• Connector Flow (Btu): 93,200
• Hose Fitting A Material: 304 Stainless Steel
• Hose Fitting B Material: 304 Stainless Steel
• Material of Construction: stainless steel
• Max. Working Pressure @ 70 F: 0.5 psi
• Country of Origin (subject to change): United States
• Connection Type: FIP x MIP
• NG Capacity (BTU): 93200
• LP Capacity (BTU): 149120
• OD: 5/8"
• ID: 1/2"
• Coating: Uncoated
• Material: Stainless Steel
• Appliance Location: Indoor;Outdoor
• End Connection 1 Size: 1/2 IN
• End Connection 1 Style: Fitting
• End Connection 1 Thread Type: IPS
• End Connection 1 Type: Male Threaded
• End Connection 2 Size: 3/4 IN
• End Connection 2 Style: Fitting
• End Connection 2 Thread Type: FPT
• End Connection 2 Type: Female Threaded
• Inner Diameter: 1/2 IN
• Lead Free: Not In Scope
• Outer Diameter: 5/8 IN
• Product Market Application: Residential
• Brand: DORMONT
• Type: Pipes, Valves & Fittings > Supply Lines > Flexible Gas Connectors
• Compatible Brand: DORMONT
• MPN: 30-3142-60
