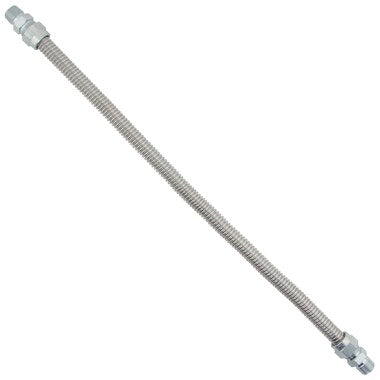

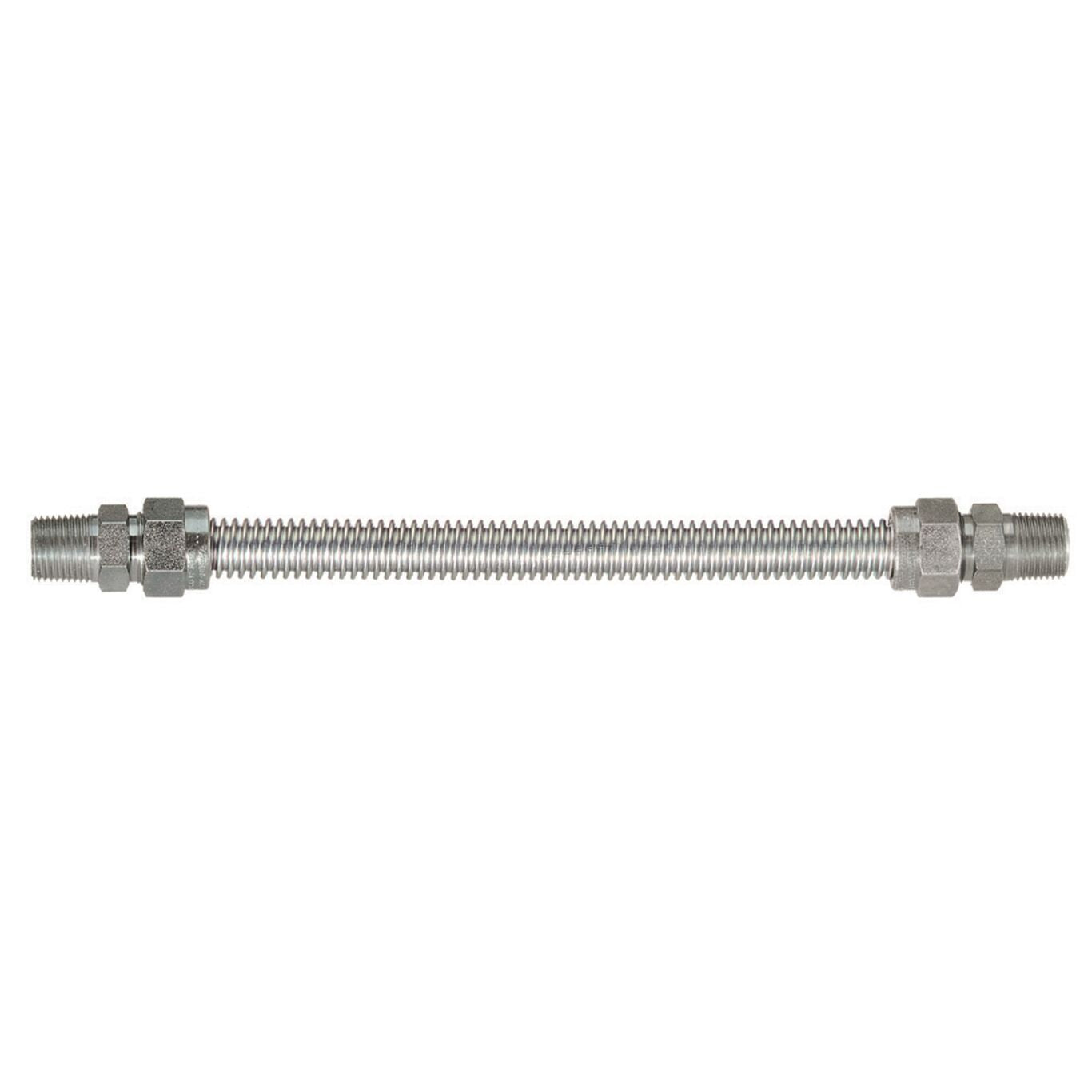

Dormont 30-3131-72 Gas Connector

Product Description

The Dormont 30-3131-72 gas connector is designed for reliable connections in residential applications. It features a construction of 304 stainless steel for corrosion resistance and durability. The connector has a length of 72 inches, with a 1/2-inch inner diameter and a 5/8-inch outer diameter. Each end is equipped with a 1/2-inch male threaded IPS fitting, suitable for various appliances like built-in BBQ grills, ranges, ovens, cooktops, and furnaces.

• Certified by CSA for indoor and outdoor usage.
• Resistant to corrosion with stainless steel material.
• 100% factory leak tested for safety.

Product Highlights

This gas connector is designed to operate efficiently in both high and low-temperature environments, with a temperature range from -40 to 350 degrees Fahrenheit. Adhering to ANSI and CSA standards ensures stability and peace of mind for users.

Product Information

Standard Information

• Brand: Dormont
• Application: Built-In BBQ Grill, Range, Oven, Cooktop, Furnace

Technical Specifications

• Body Material: Stainless Steel
• Design Certification: CSA certified to ANSI Z21.24/CSA 6.10; CSA certified to ANSI Z21.75/CSA 6.27
• Inner Diameter: 1/2 inches
• Outer Diameter: 5/8 inches
• Length: 72 inches
• Max Working Pressure: 0.5 psi at 70 degrees Fahrenheit
• Temperature Range: -40 degrees to 350 degrees Fahrenheit
• Hose Color: Silver
