Dormont 20C-3135-18 Model 3/8 inches Id (1/2 inches Od) Gas Connector 1/2 inches Mip X 1/2 inches Fip (18 inches Length)

Product Description

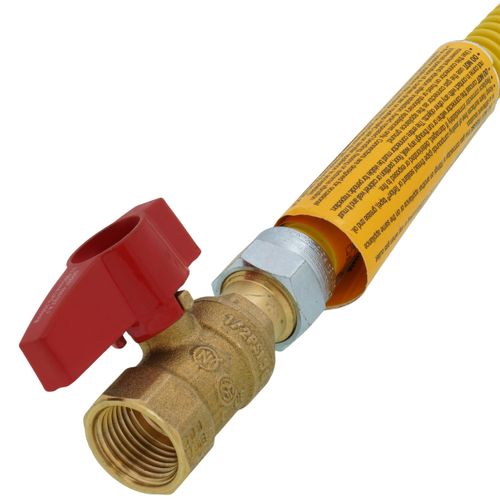

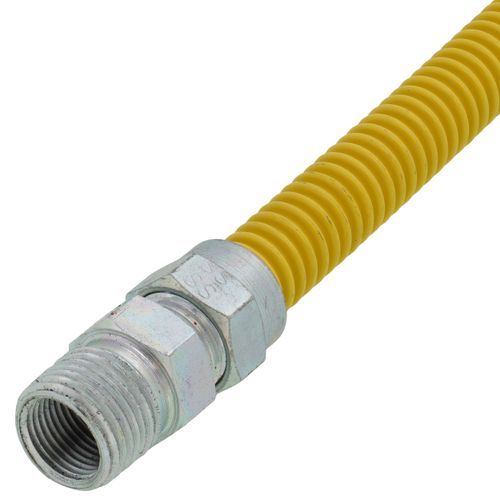

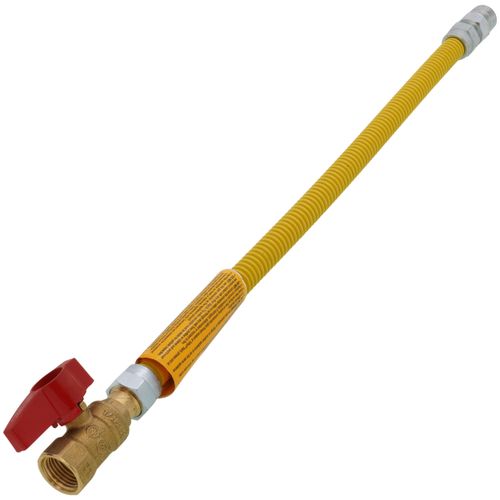

The DORMONT 20C-3135-18 is a 3/8" ID (1/2" OD) coated stainless steel gas connector with a 1/2" MIP x 1/2" FIP configuration and an 18" length. This durable, corrosion-resistant connector is CSA approved and features a yellow coating, the industry-recognized color for gas lines, providing extra protection against household chemicals. Commonly used for installing home appliances like gas dryers and water heaters.

• Tubing made of annealed, 304 stainless steel (ASTM A240)
• Approved for indoor and outdoor use
• 100% Factory leak tested

Product Highlights

Durable stainless steel gas connector with yellow coating for corrosion protection. Ideal for gas dryers and water heaters. CSA approved.

Product Information

Standard Information

• Brand: DORMONT
• Manufacturer Part Number: 20C-3135-18

Technical Specifications

• Connection Type: FIP x MIP
• Length (Inches): 18"
• NG Capacity (BTU): 93100
• Type: Corrugated
• LP Capacity (BTU): 148960
• Size: 1/2"
• ID: 3/8"
• OD: 1/2"
• Material: Stainless Steel
• Coating: Yellow Coated
• Application: Heating, Water Heater
• Appliance Location: Indoor;Outdoor
• Body Material: Stainless Steel
• Brand: Dormont
• Design Certification: CSA certified to ANSI Z21.24/CSA 6.10; CSA certified to ANSI Z21.75/CSA 6.27; CSA certified to ANSI Z21.15/CSA 9.1
• End Connection 1 Size: 1/2 IN
• End Connection 1 Style: Fitting
• End Connection 1 Thread Type: IPS
• End Connection 1 Type: Male Threaded
• End Connection 2 Size: 1/2 IN
• End Connection 2 Thread Type: FPT
• End Connection 2 Type: Female Threaded
• Inner Diameter: 3/8 IN
• Outer Diameter: 1/2 IN
• Product Market Application: Residential
