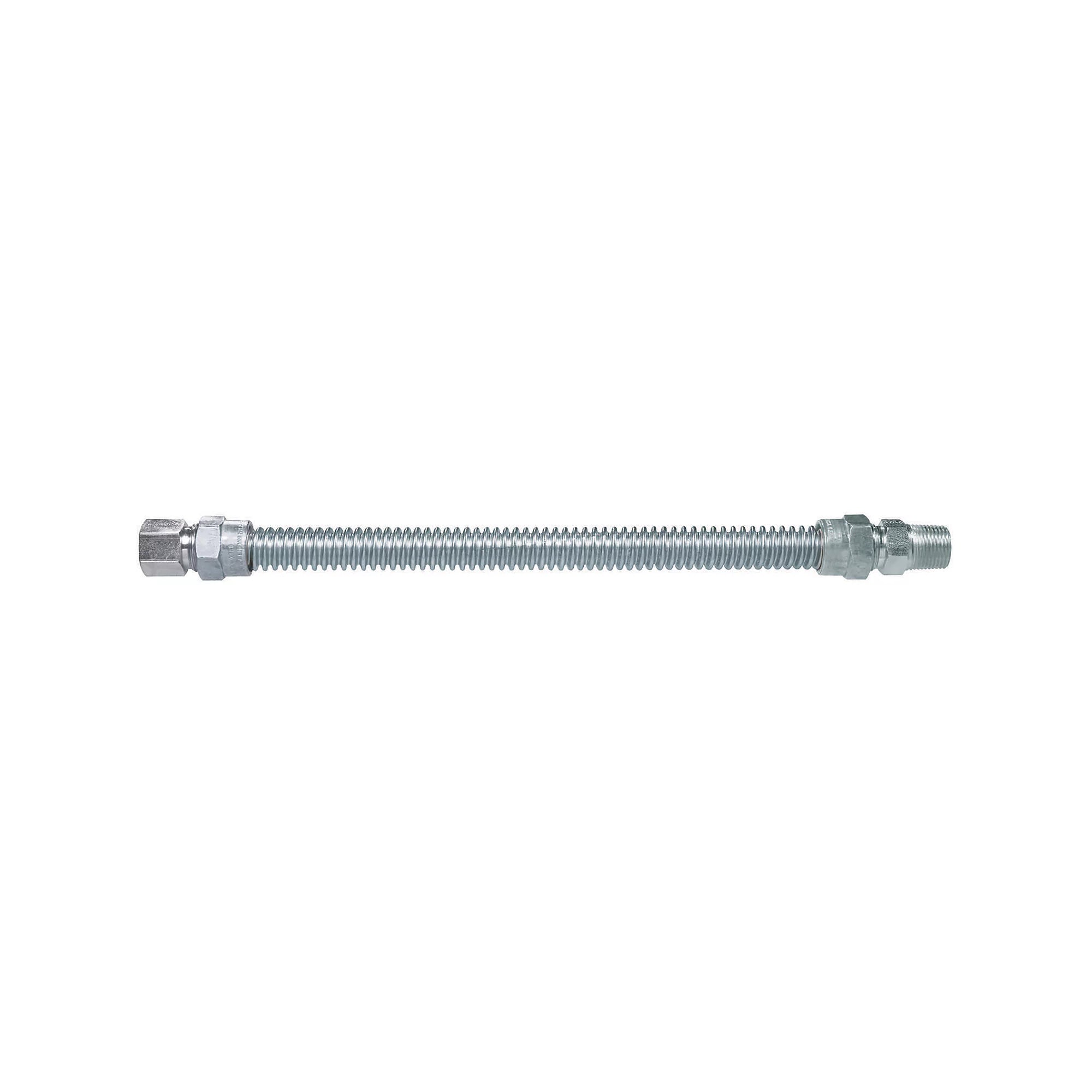

Dormont 20-3235-36 1/2 inches OD, 3/8 inches ID Stainless Steel Gas Connector, 1/2 inches FIP x 1/2 inches FIP Ball Valve, 36 inches Length

Product Description

The DORMONT 20-3235-36 is a 1/2" OD, 3/8" ID stainless steel gas connector configured with a 1/2" FIP x 1/2" FIP ball valve and a 36" length. This CSA approved gas connector is designed for safety and is commonly used for the installation of home appliances such as gas dryers and water heaters. It has a flow rate of 71,100 BTU/Hour.

• Durable
• Corrosion Resistant
• CSA Approved

Product Highlights

Durable and corrosion-resistant stainless steel gas connector with CSA approval, designed for safe installation of gas appliances.

Product Information

Standard Information

• Brand: DORMONT
• Manufacturer Part Number: 20-3235-36
• Country of Origin: USA

Technical Specifications

• Brand: Dormont
• Composition: 304 Stainless Steel
• Connection Size: 1/2"
• Diameter: .5"
• EAN: 0662447017814
• Flow Rate: 71,100 BTU/Hour
• For Use With: Dryer and water heaters
• Height: 1.87
• Inside Diameter: 3/8"
• Length: 36
• Maximum Pressure (PSI): 0.5
• Outside Diameter: 1/2"
• Overall Length: 36"
• Pressure Rating: 0.5" Water Column Pressure Drop
• Prop 65: Yes
• Tube Size: 1/2"
• UOM: EA
• UPC: 662447017814
• Width: 0.88
• Country of Origin: USA
• UL Listed: No
• Application: Fire Pit|Dryer|Tanked Water Heater|Gas Log|Fireplace
• Body Material: Stainless Steel
• Coating: Uncoated
• Design Certification: ANSI Z21.24/CSA 6.10, ANSI Z21.75/CSA 6.27
• End Connection 1 Size: 1/2 IN
• End Connection 1 Style: Flare Fitting
• End Connection 1 Thread Type: IPS
• End Connection 1 Type: Female Threaded
• End Connection 2 Size: 1/2 IN
• End Connection 2 Style: Straight Valve
• End Connection 2 Thread Type: IPS
• End Connection 2 Type: Female Threaded
• Environmental Product Declaration: No
• Inner Diameter: 3/8 IN
• Lead Free: Not In Scope
• Outer Diameter: 1/2 IN
• Product Market Application: Residential
• Fitting Size: 15/16" -16
