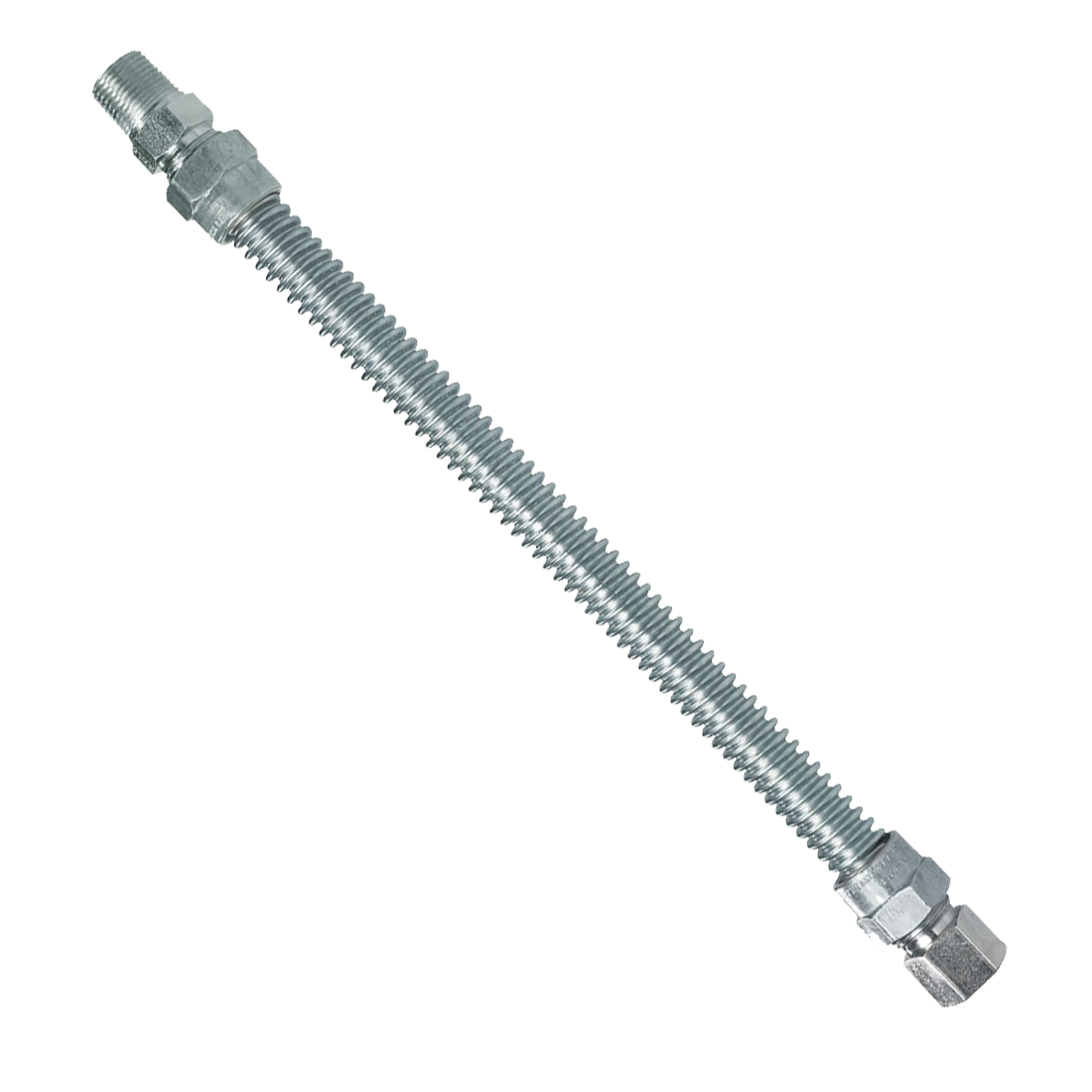

DORMONT 20-3122-60 Gas Connector Power 60 Inch

Product Description

The Dormont 20-3122-60 is a 60-inch gas connector designed for use in both residential and commercial settings. Constructed from 304 stainless steel, this connector ensures high durability and resistance to corrosion. It features a 1/2-inch outer diameter and a 3/8-inch inner diameter, making it suitable for various gas appliances.

• Constructed from 304 stainless steel for corrosion resistance
• Features brass/plated steel fittings for secure connections
• CSA approved for safe indoor and outdoor use

Product Highlights

This gas connector is ideal for gas dryers and water heaters, with a flow capacity of up to 53200 BTU/HR for natural gas and 85120 BTU/HR for propane. It is designed to meet ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27 standards, ensuring reliable performance.

Product Information

Standard Information

• Brand: Dormont
• MPN: 20-3122-60

Technical Specifications

• Material: 304 Stainless Steel
• Application: Indoor, Outdoor, Residential, Commercial
• Approval: CSA Approved
• First End Connection: 1/2 MPT
• Length: 60 inches
• Outside Diameter: 1/2 inch
• Second End Connection: 3/8 FPT
• Minimum Flow Capacity: 53200 BTU/HR (Natural Gas), 85120 BTU/HR (Propane Gas)
• Temperature Rating: -40 to 150 Deg F
• End Connection 1 Type: Male Threaded
• End Connection 2 Type: Female Threaded
• Design Certification: CSA certified to ANSI Z21.24/CSA 6.10; CSA certified to ANSI Z21.75/CSA 6.27
