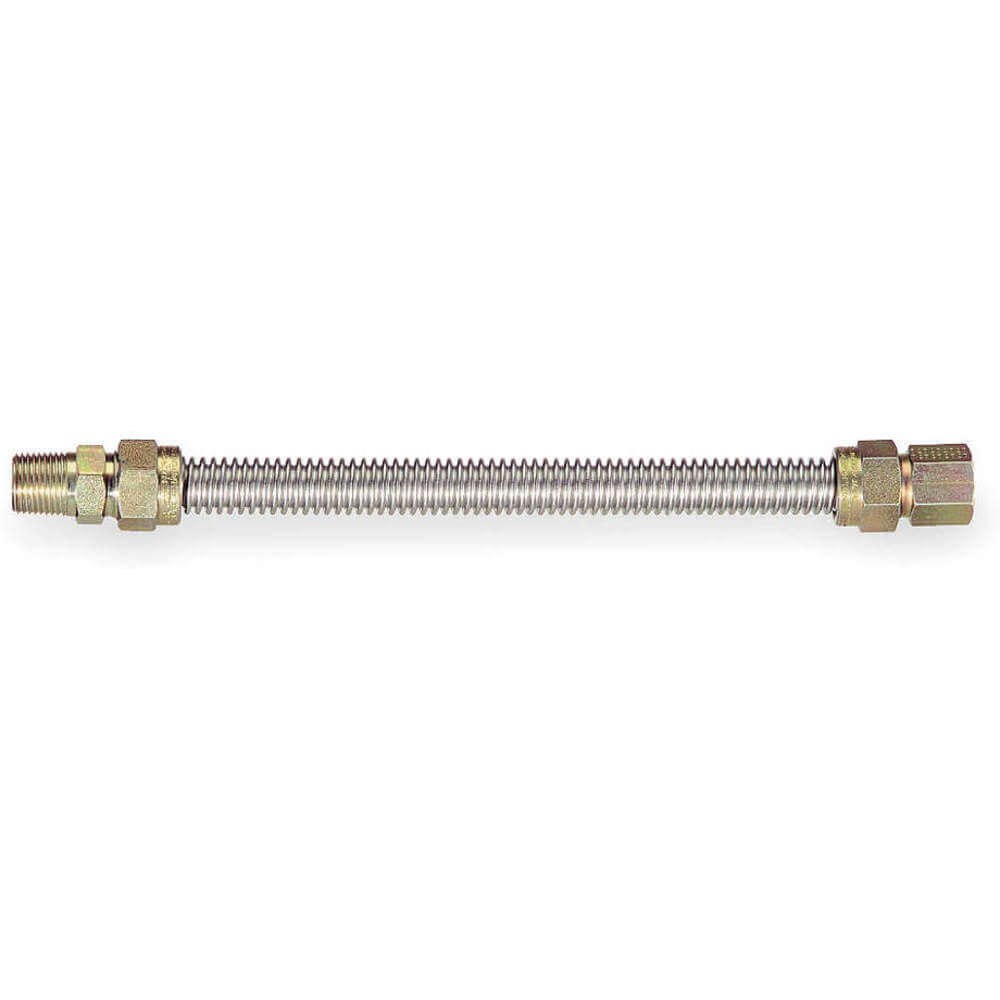

DORMONT 20-3122-48 Gas Connector - 1/2 in OD x 3/8 in ID, 48 in Length

Product Description

The DORMONT 20-3122-48 is a gas connector measuring forty-eight inches in length with a one-half inch outer diameter and a three-eighths inch inner diameter. It is made from stainless steel, which provides resistance to corrosion. This connector features a male threaded IPS end and a female threaded FPT end connection, making it versatile for various applications such as fire pits, dryers, tanked water heaters, and fireplaces. It is designed for both indoor and outdoor use and is CSA certified to meet ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27 standards.

• Constructed from stainless steel for durability.
• Features flared end adapters for a reliable seal.
• Suitable for both commercial and residential installations.

Product Highlights

The DORMONT gas connector offers flexibility in installation, ensuring secure connections for gas applications.

Product Information

Standard Information

• Brand: DORMONT
• Application: Fire Pit, Dryer, Tanked Water Heater, Gas Log, Fireplace

Technical Specifications

• Appliance Location: Indoor, Outdoor
• Body Material: Stainless Steel
• Length: 48 inches
• Outer Diameter: 1/2 inch
• Inner Diameter: 3/8 inch
• Temperature Rating: -40 to 150 degrees Fahrenheit
• Minimum Flow Capacity: 60500 BTU/HR (Natural Gas), 96800 BTU/HR (Propane Gas)
• End Connection: 1/2 Male Threaded x 3/8 Female Threaded
• Standards: ANSI Z21.24, ANSI Z21.75, CSA
