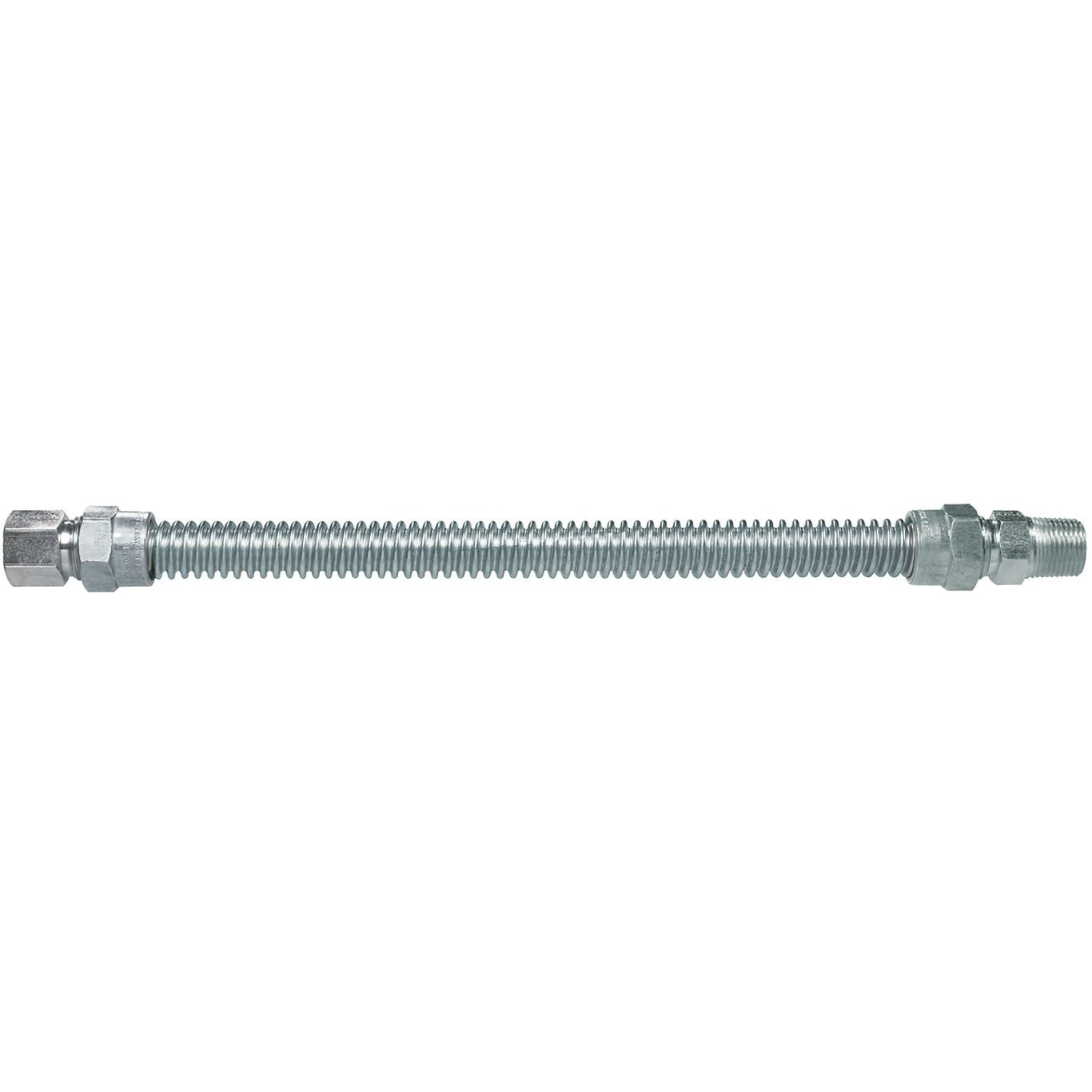

DORMONT 20-3122-18 Gas Connector - 1/2 in OD x 3/8 in ID - 18 in Length

Product Description

The DORMONT 20-3122-18 is a gas connector designed for safe and efficient gas distribution. This connector features a 1/2 inch outer diameter and a 3/8 inch inner diameter, measuring 18 inches in length. It has a 1/2 inch MIP (Male Iron Pipe) to 3/8 inch FIP (Female Iron Pipe) connection, ensuring compatibility with various gas appliances.

• Constructed from 304 stainless steel for durability.
• Certified by CSA for indoor and outdoor use.
• Temperature rating from -40 to 150 degrees Fahrenheit.

Product Highlights

This gas connector is suitable for both residential and commercial applications, including gas dryers and water heaters, providing a reliable solution for gas connection needs.

Product Information

Standard Information

• Brand: DORMONT
• Type: Gas Connector

Technical Specifications

• Appliance Location: Indoor; Outdoor
• Application: Residential, Commercial
• Body Material: Stainless Steel
• Inner Diameter: 3/8 in
• Outer Diameter: 1/2 in
• Length: 18 in
• Temperature Rating: -40 to 150 Deg F
• Minimum Flow Capacity: 93100 BTU/HR (Natural Gas), 148960 BTU/HR (Propane Gas)
• End Connection: 1/2 Male Threaded x 3/8 Female Threaded
