DORMONT 20-3122-12 Gas Connector - 1/2 in. OD x 3/8 in. ID, 12 in. Length

Product Description

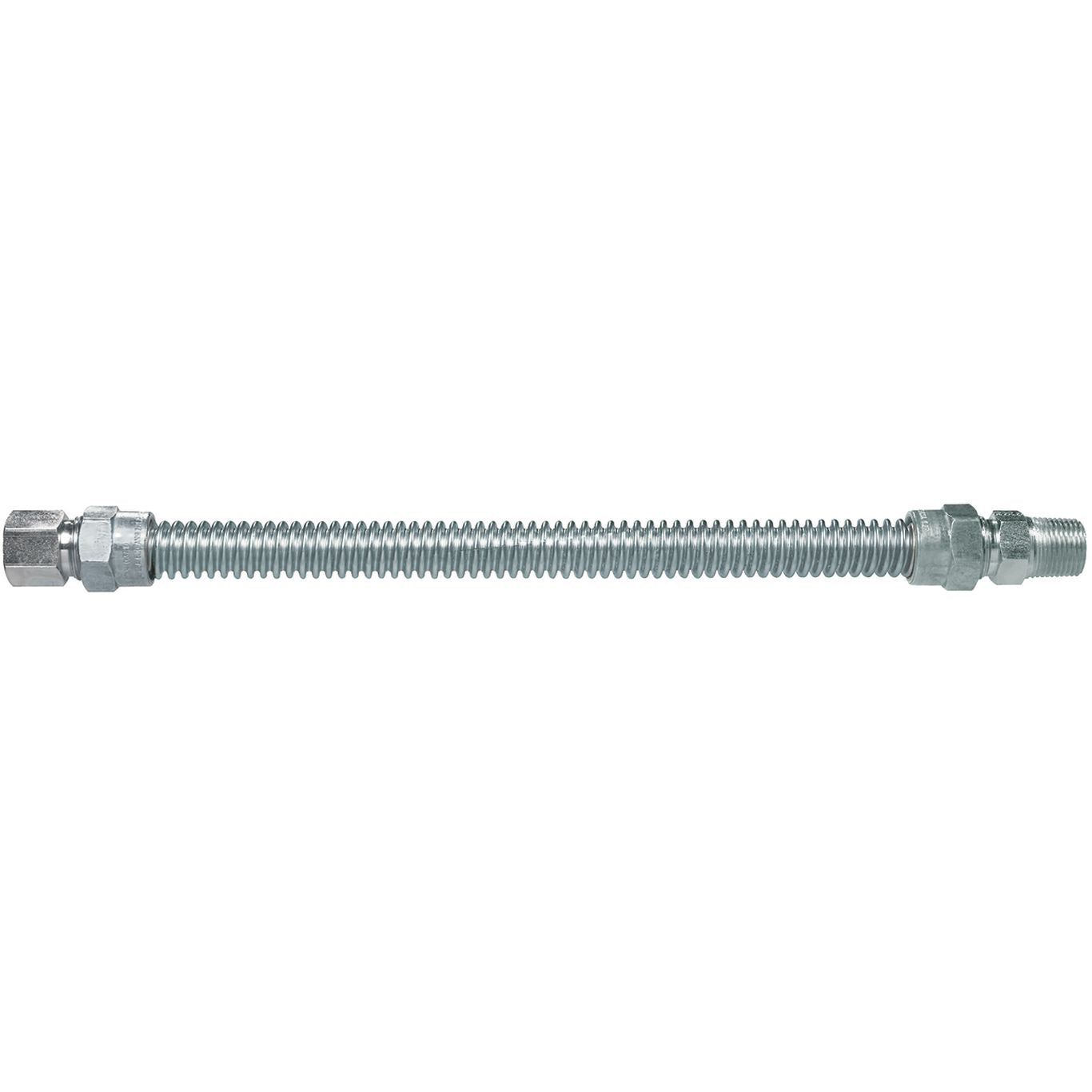

The Dormont 20-3122-12 is a gas connector with a length of twelve inches. It has an outside diameter of one half inch and an inside diameter of three eighths inch. This connector is made from ASTM A240 annealed 304 stainless steel, which ensures durability and resistance to corrosion. The end fittings are composed of brass and plated steel. One end features a male threaded connection of one half inch, while the other end has a female threaded connection of three eighths inch. This product is suitable for both indoor and outdoor applications with appliances such as fire pits, dryers, tanked water heaters, gas logs, and fireplaces. The connector meets CSA certification for several industry standards including ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27. It functions effectively in temperatures ranging from negative forty to one hundred fifty degrees Fahrenheit. The minimum flow capacities are one hundred two thousand BTU per hour for natural gas and one hundred sixty-three thousand two hundred BTU per hour for propane gas.

• Features flared end adapters for a secure metal-to-metal seal.
• Constructed from stainless steel for enhanced corrosion resistance.
• Certified for both indoor and outdoor use.

Product Highlights

The Dormont 20-3122-12 gas connector is ideal for connecting gas appliances safely and reliably.

Product Information

Standard Information

• Item: Gas Connector
• Manufacturer Name: Dormont

Technical Specifications

• Body Material: Stainless Steel
• Inside Diameter: 3/8 inches
• Length: 12 inches
• Outside Diameter: 1/2 inches
• Temperature Rating: -40 to 150 degrees Fahrenheit
• Minimum Flow Capacity: 102000 BTU/HR (Natural Gas), 163200 BTU/HR (Propane Gas)
• End Connection: 1/2 MPT x 3/8 FPT
• Design Certification: CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27
