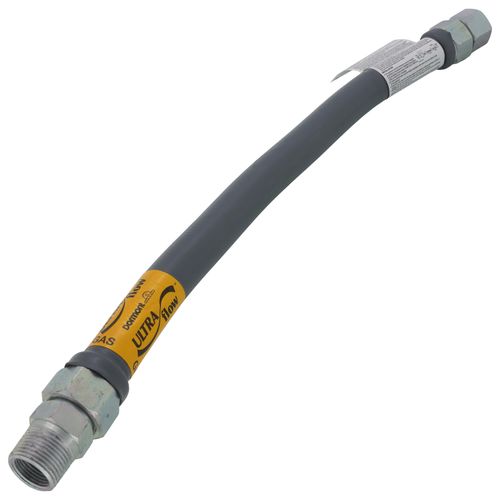

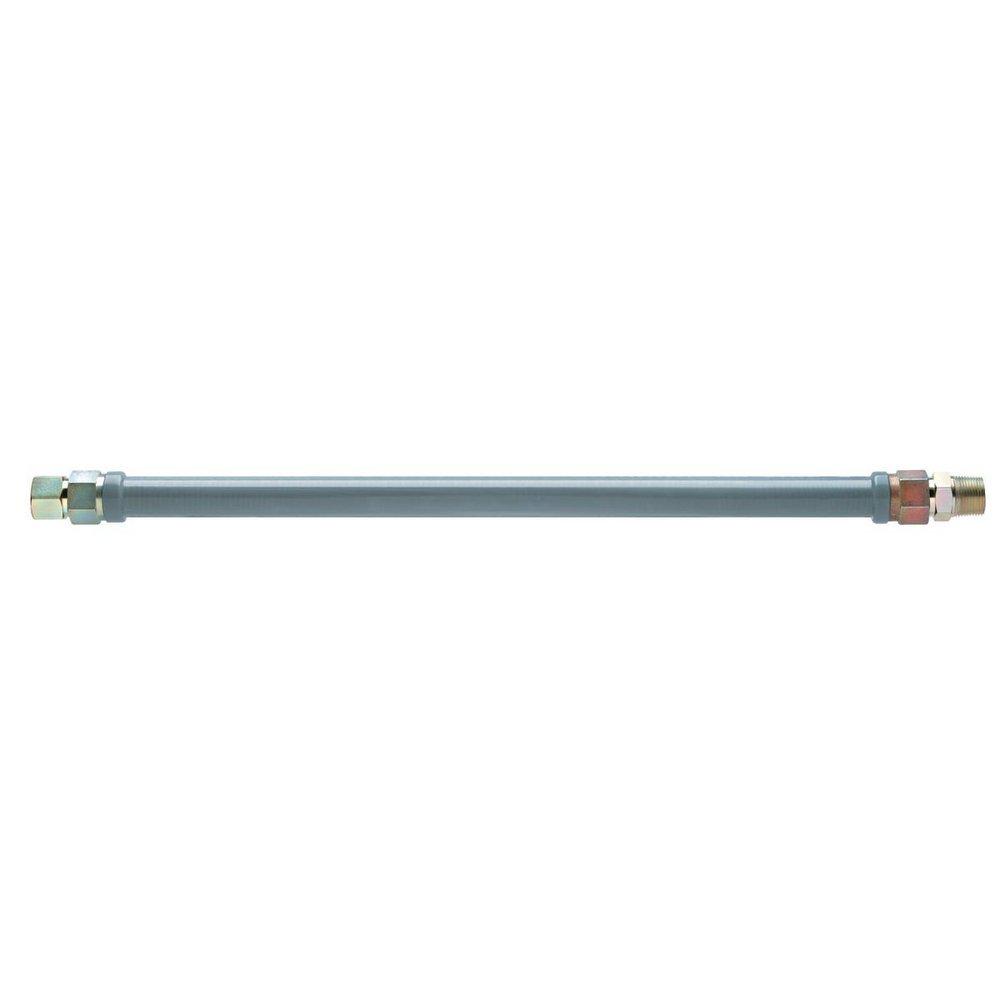

Dormont 0241029 Model 51-5152-24 Gas Connector 1 inch ID (1-1/4 inch OD) 24 inch Length

Product Description

The DORMONT 0241029 Model 51-5152-24 gas connector features a 1 inch ID and 1-1/4 inch OD. This durable, corrosion-resistant stainless steel connector has 1 inch MIP x 1 inch FIP adapters and a 24 inch length. It features a hot-dipped, heavy-duty gray PVC coating and is designed for indoor and outdoor high BTU applications.

• Constructed from annealed 304 stainless steel tubing (ASTM A240)
• Features a heavy-duty, antimicrobial, hot-dipped gray PVC coating that will not hold a flame
• Approved for indoor and outdoor use with an operating temperature range of -40°F to 150°F

Product Highlights

This CSA-approved gas connector is 100% leak tested and designed for high BTU demand, offering flexibility and extended service life.

Product Information

Standard Information

• Brand: DORMONT
• Manufacturer Part Number: 0241029
• Country of Origin: USA

Technical Specifications

• ID: 1"
• OD: 1-1/4"
• Size: 1"
• Type: Corrugated
• Coating: Gray Coated
• Material: Stainless Steel
• Application: Heating, High BTU
• Connection Type: MNPT x FNPT
• Length: 24"
• LP Capacity (BTU): 930880
• NG Capacity (BTU): 581800
• Appliance Location: Indoor;Outdoor
• Body Material: Stainless Steel
• Brand: Dormont®
• Buy American Act Compliant: NO
• Design Certification: CSA certified to ANSI Z21.24/CSA 6.10; CSA certified to ANSI Z21.75/CSA 6.27; IAPMO certified to TS 9-2003
• End Connection 1 Size: 1 IN
• End Connection 1 Style: Fitting
• End Connection 1 Thread Type: IPS
• End Connection 1 Type: Male Threaded
• End Connection 2 Size: 1 IN
• End Connection 2 Style: Fitting
• End Connection 2 Thread Type: FPT
• End Connection 2 Type: Female Threaded
• Inner Diameter: 1 IN
• Outer Diameter: 1 1/4 IN
• Product Market Application: Residential
• Temperature: - 40°F to 150°F
• Maximum Pressure: standard line pressure up to 1/2 PSI
• Flow Capacity for Natural Gas (Straight Length): 581,800 BTU/hr
• Flow Capacity for LPG/Propan (Straight Length): 930,880 BTU/hr
• Tubing: Annealed, 304 stainless steel (ASTM A240)
• Nuts & Adapters: Zinc plated carbon steel
• ANSI: ANSI Z21.24, ANSI Z21.75
• CSA Certified: CSA 6.10, CSA 6.27
• Collection: 51 Series
• End Connection 1: MPT
• End Connection 2: FPT
• End Connections: MPT x FPT
• Fitting Size 1: 1 in
• Fitting Size 2: 1 in
• Fitting Sizes: 1 in
• Material Type: 304
• BTU Rating: 581800 Btu, 930880 Btu
• Finish: PVC-Coated
• Fitting Size: 1 in
• Pressure Rating: 0.5 psi, 250 psi
• Temperature Rating: -40 to 150 deg F
• Nominal Size: 1 in
• End Style: MNPT x FNPT
• Domestic/Import: Domestic
• Series: 51
• UNSPSC: 40141720
• Alternate Part Number 1: 241029
• Manufacturer: Watts Water Technologies
