DORMONT 0240927 Dormont SafetyShield High BTU Gas Connector 24 inches

Product Description

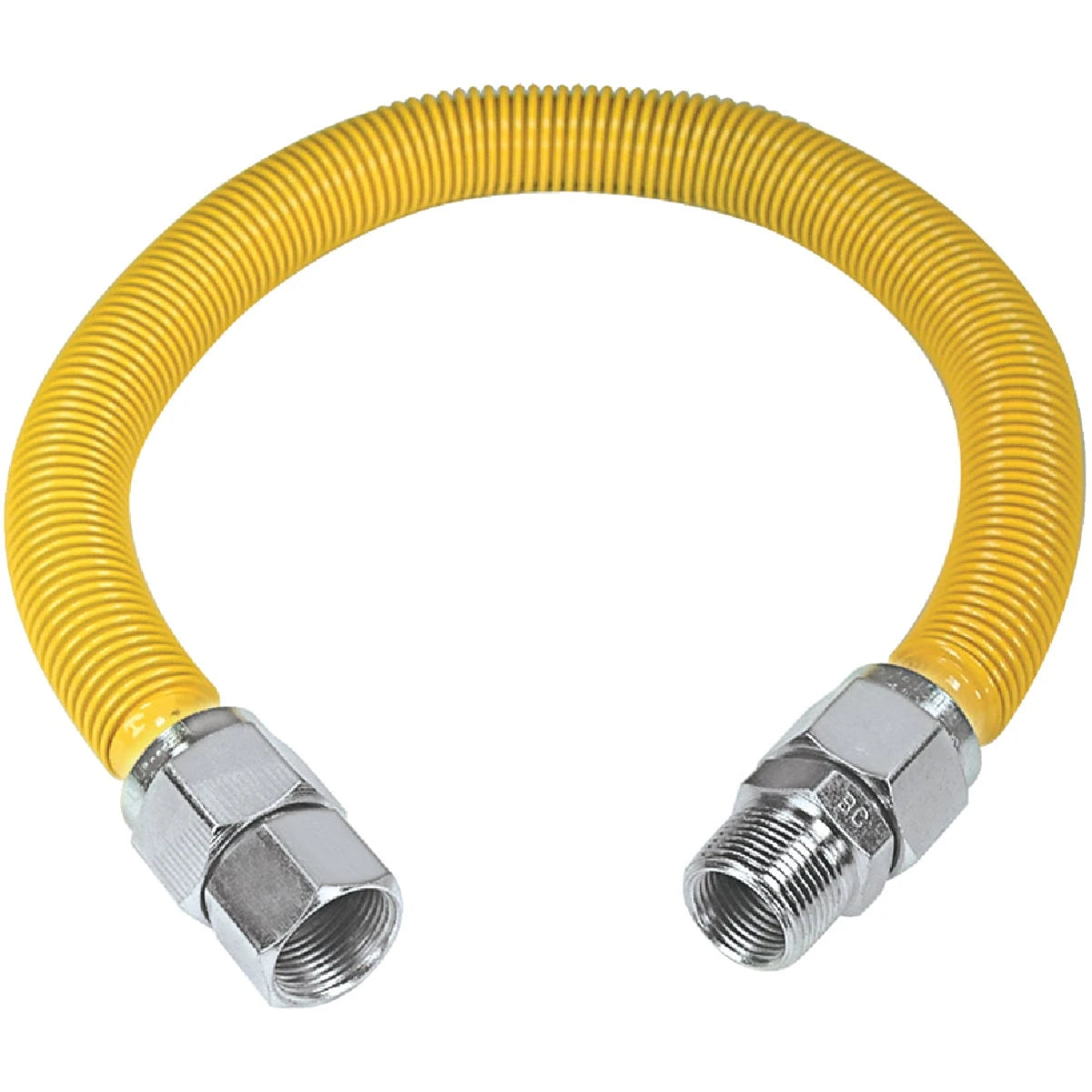

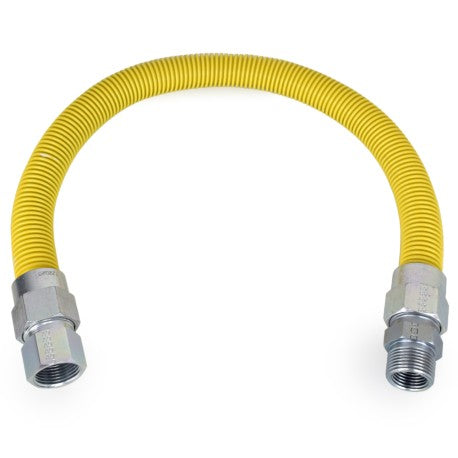

The DORMONT SafetyShield 0240927 is a 24-inch long gas connector made for high-BTU appliances. It has a nominal size of 3/4 inches and is made from durable 304 stainless steel, ensuring long-lasting use. This connector features a yellow polymer coating for corrosion resistance and easy visibility. It is ideal for connection to appliances like boilers and tankless water heaters. The connector offers MNPT x FNPT end connections.

• Constructed from 304 stainless steel for durability.
• Yellow polymer coating offers corrosion resistance.
• Designed for high-BTU gas applications.

Product Highlights

This gas connector enables safe and efficient installation of gas appliances, ensuring compliance with industry standards.

Product Information

Standard Information

• Brand: DORMONT
• MPN: 0240927

Technical Specifications

• Series: 40C
• Nominal Size: 3/4 inches
• End Style: MNPT x FNPT
• End Connection 1 Type: 3/4 IN MIP
• End Connection 2 Type: 3/4 IN FIP
• Length: 24 inches
• Material: 304 Stainless Steel
• Outside Diameter: 1 inch
• Coating: Antimicrobial Yellow Powder Coated
• Hose Diameter: 3/4 ID (1 OD)
• Temperature: - 40°F to 150°F
• Maximum Pressure: Standard line pressure up to 1/2 PSI
• Flow Capacity for Natural Gas: 290,900 BTU/hr
• Flow Capacity for LPG/Propane: 465,440 BTU/hr
• Tubing Material: Annealed, 304 stainless steel (ASTM A240)
• Coating Material: Custom formulated yellow polymer
• Nuts & Adapters Material: Zinc plated carbon steel
• Color: Yellow
