Dormer PREDO-10327 Long Length Premium Quick Helix Taper Length Drill, 11/64 in Drill - Fraction

Product Description

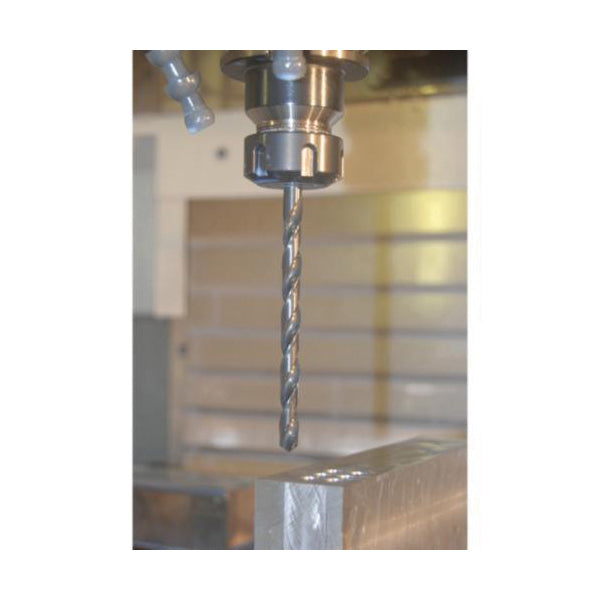

The Dormer PREDO-10327 is a Long Length Premium Quick Helix Taper Length Drill designed for versatility and efficiency in drilling tasks. This drill has a size of 11/64 inches and an overall length of 126 millimeters. It is made from high-speed steel (HSS) with a steam oxide finish, making it suitable for various materials.

• Drill size: 11/64 inches (0.1719 inches - decimal)
• Overall length: 126 millimeters
• Applicable for soft and hard metal drilling

Product Highlights

This drill is ideal for general drilling applications, offering strong performance in both ferrous and non-ferrous materials.

Product Information

Standard Information

• Brand: Dormer
• MPN: PREDO-10327

Technical Specifications

• Drill Size - Fraction: 11/64 in
• Drill Size - Decimal Inch: 0.1719 in
• Overall Length: 126 mm
• Cutting Depth: 6XD
• Flute Length: 82 mm
• Cutting Edge Material: HSS
• Point Angle: 118 deg
• Series: A110
• Finish: Steam Oxide
• Flute Type: Spiral
• Shank Type: Straight
• Point Type: Split
• Applicable Materials: Magnetic Soft Steel, Structural Steel, Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Hardened and Tempered Steel
• Cutting Direction: Right Hand
