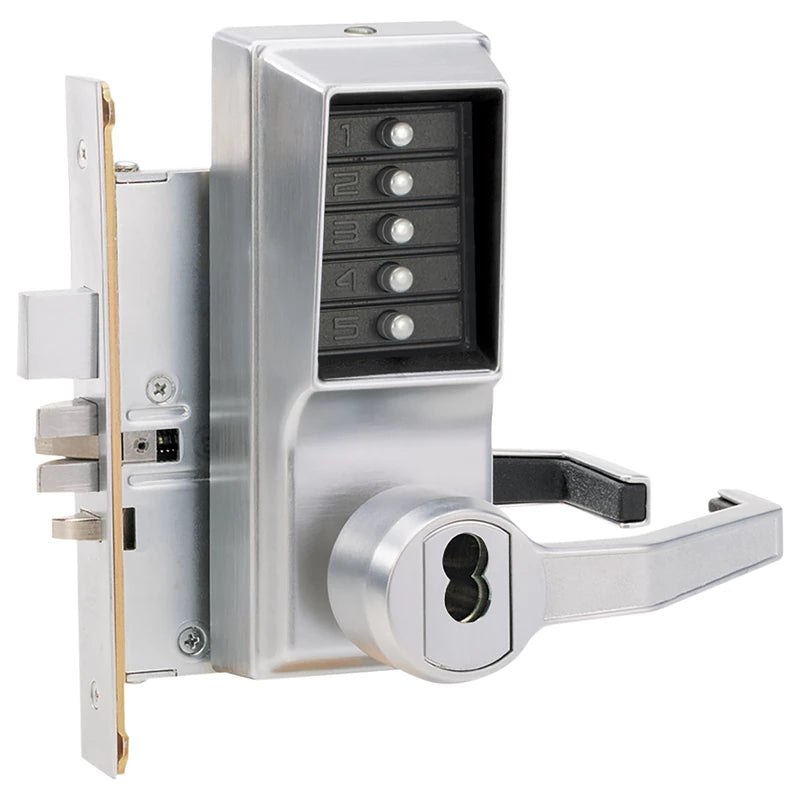

Dormakaba RR8148B-26D-41 Mortise Combination Lever Lock Key Override Passage Lockout Less Core

Product Description

The DORMAKABA RR8148B-26D-41 is a mortise combination lever lock with key override, designed for passage doors. It features a lockout function and comes less core. The Simplex mechanical pushbutton lock offers combination-based access control without the need for batteries or wiring. It is designed for commercial applications where reliability matters.

• Mortise combination lever lock
• Key override
• Passage function
• Lockout feature
• Less core

Product Highlights

The RR8148B-26D-41 offers a convenient way to control access between public and private areas. Combinations can be changed in seconds without removing the lock from the door.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: RR8148B-26D-41
• Country of Origin: Mexico

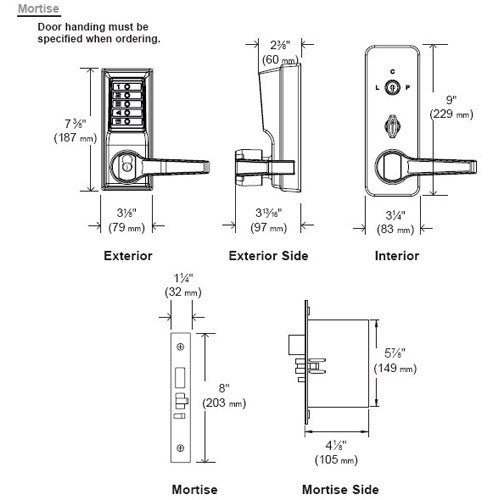

Technical Specifications

• Locking Device: Mortise with 1 in. deadbolt 3/4 in. two-piece anti-friction latch

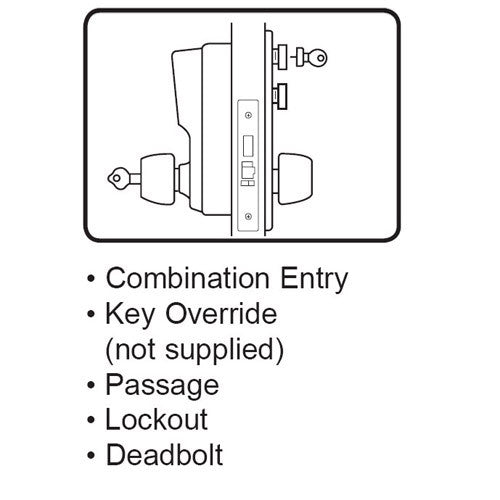

• Operation Modes: Pushbutton Access, Passage, Lockout, and Deadbolt
• Backset: 2-3/4 in. (70mm)
• Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Minimum Stile Recommended: 5 in. (127 mm)
• Strike: 4-7/8 in. x 1-1/4 in. x 1/4 in. Deadbolt/Latch mortise strike plate
• Fire Rating: 3-hour UL/ULC
• Accessibility Standard: Americans with Disabilities Act (ADA) fixed ADA-compliant levers
• Durability: Weather resistant
• Brand: Kaba
• Product Code: RR8148B-26D-41
• Handing: Factory-handed; not field reversible
• Key Override: Best and Equivalents SFIC (6 or 7-pin length); core sold separately
• Latch Throw: 3/4 in. deadbolt
• Model: RR8148B-26D-41
• Series: Simplex 8100 Series
• Function: Mortise Lock
• Grade: ANSI/BHMA Grade 1
• Override: Best and Equivalents (6 or 7-pin length) as key override feature; core not included
• SFIC Prep: 6/7-Pin
• Core: Less Core
