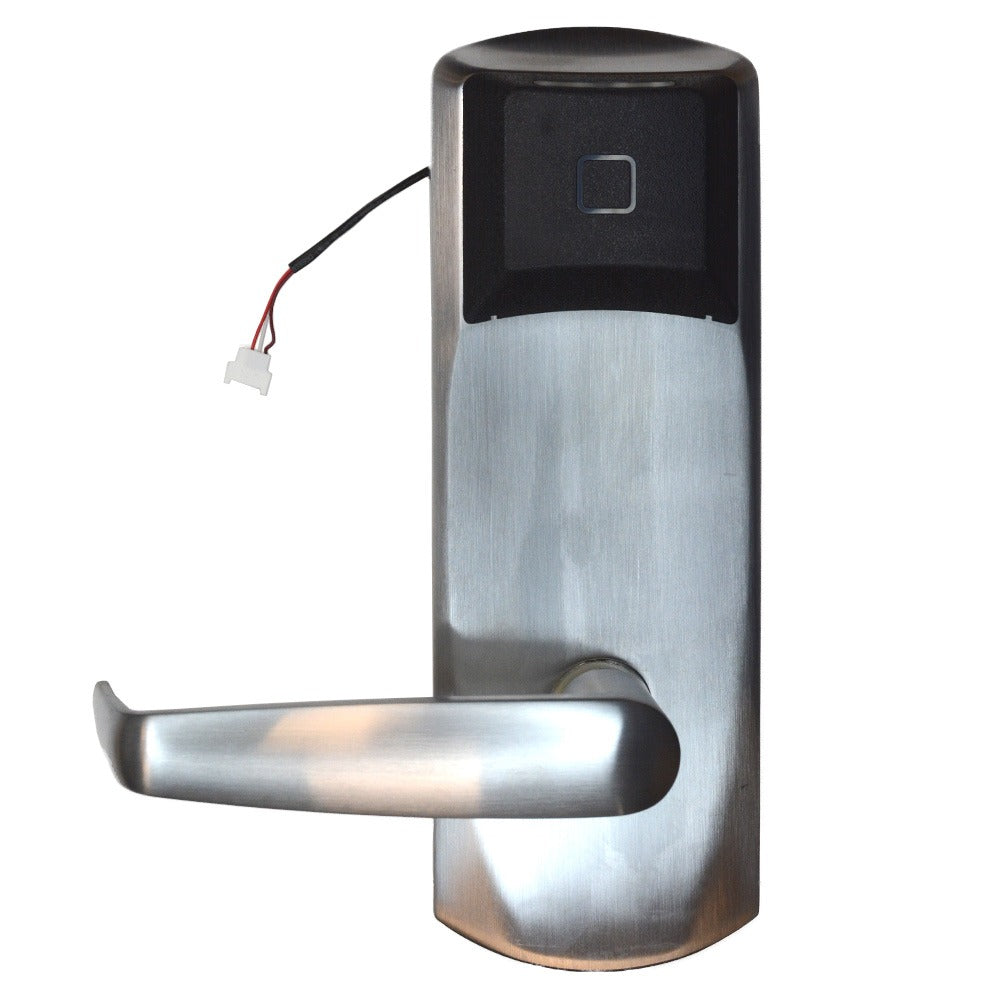

Dormakaba Multi-housing 79PS112T1EL32626 Mortise Lockset Ble

Product Description

The DORMAKABA MULTI-HOUSING 79PS112T1EL32626 is a standalone utility RFID proximity mortise lockset engineered for multi-housing and commercial access control applications. This unit ships with no deadbolt and features a long lever trim, a toggle function, and a 1-1/4 inch ASM (adjustable strike measurement). Built-in Bluetooth Low Energy (BLE) connectivity enables wireless credential management and configuration without a wired network connection. The Electronic Lock Override (ELO) function allows authorized personnel to override the lock electronically when credential-based access is unavailable. The lockset ships in a Satin Chrome (626) finish and is field-configurable for left-hand or right-hand reverse handing, reducing the need to stock separate units for different door swings.

This mortise lockset is designed for residential multi-housing environments including apartment buildings, dormitories, and managed-access facilities where RFID proximity cards or fobs are the primary credential type. The standalone configuration means no panel wiring or access control head-end infrastructure is required at the door level, making it well suited for retrofit installations or properties expanding keyless access incrementally. The BLE capability supports mobile credentialing workflows when paired with compatible software platforms. The toggle function is appropriate for utility rooms, mechanical spaces, storage areas, and similar doors that do not require a traditional passage or privacy function.

Key Features

• RFID proximity reader integrated into a mortise lockset body for keycard or fob access
• Bluetooth Low Energy (BLE) for wireless configuration and mobile credential support
• Electronic Lock Override (ELO) provides authorized electronic bypass when needed
• 1-1/4 inch ASM accommodates standard mortise door prep dimensions
• Toggle function suited for utility, storage, and mechanical room doors
• Field-reversible handing — left hand or right hand reverse — from a single SKU
• Satin Chrome (626) finish for corrosion resistance and clean aesthetic in high-traffic areas

Compatibility

Designed as an OEM-style standalone mortise lockset for multi-housing and light commercial doors prepared to accept a standard mortise lock body. Verify door thickness, mortise pocket dimensions, and lever backset against the published template before ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified access control technician familiar with mortise lock prep and low-voltage electronic hardware. Confirm door handing and backset before beginning — incorrect handing selection requires returning to the supplier rather than field modification of the electronic chassis. Disconnect or isolate any building access control wiring at the door before working on the lock body. Follow ANSI A156.13 mortise lock standards and all applicable local building and fire codes when selecting and mounting this hardware.
