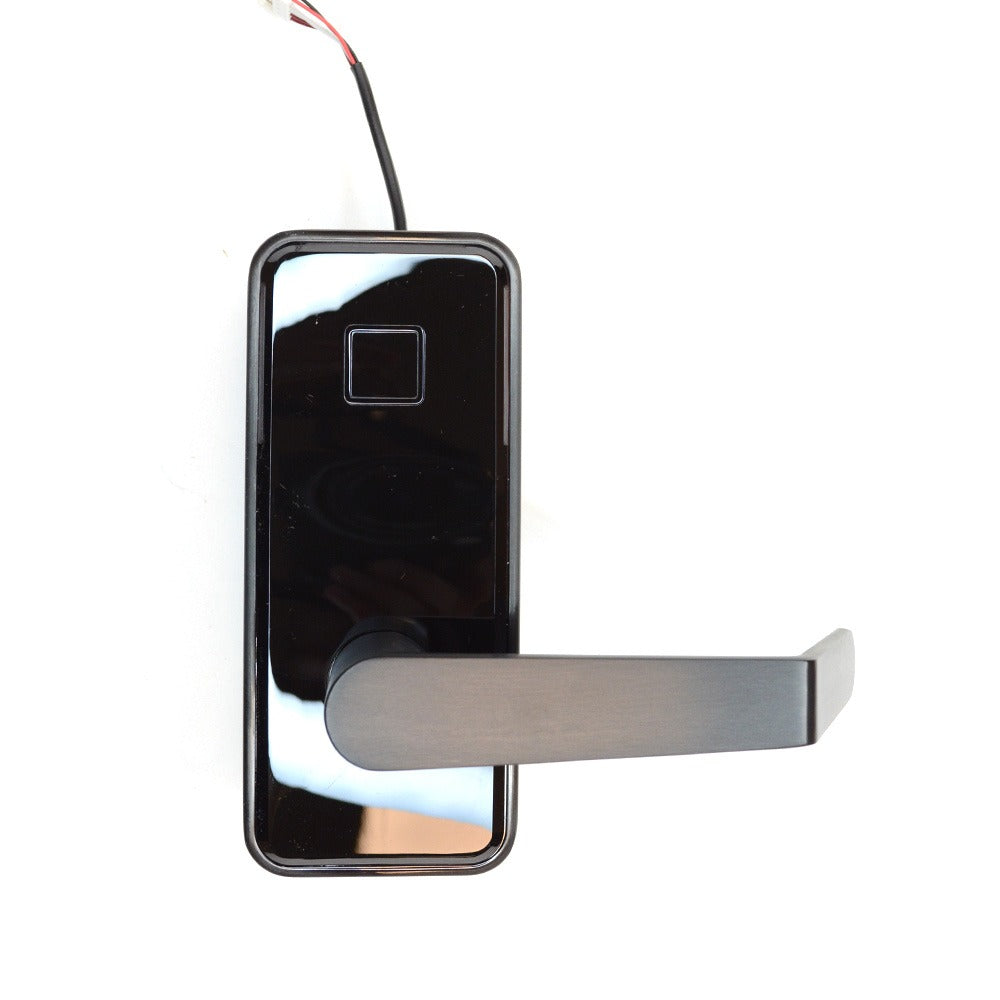

Dormakaba M002ELKBPLTKB11R Saffire Rfid Mortise Lock Ble

Product Description

The DORMAKABA MULTI-HOUSING M002ELKBPLTKB11R is a Saffire Electronic LX-M RFID privacy mortise lockset designed for multi-housing applications requiring keyless access control with Bluetooth connectivity. This right-hand unit features a long lever with toggle operation, Bluetooth Low Energy (BLE) for mobile credential management, and Electronic Lock Override (ELO) for emergency access situations. The 1-1/4 inch automatic deadbolt assembly engages automatically on closing, reducing the risk of unsecured doors. The lockset ships in a black finish with black facia. Licensed locksmiths, access control technicians, and commercial door hardware installers are the primary trades for this unit.

This lockset is suited for residential multi-housing environments such as apartment complexes, dormitories, and assisted living facilities where privacy function and electronic access management are required. The RFID and BLE capability supports mobile credentials alongside traditional card-based access. The right-hand designation applies to doors with the hinge on the left when viewed from the exterior. This unit is intended for mortise-prep door frames and is not suited for bored cylindrical lock preps.

Key Features

• Bluetooth Low Energy (BLE) enables mobile credential and remote management capability
• RFID-compatible for card and fob-based access control integration
• Electronic Lock Override (ELO) provides emergency access without credential dependency
• 1-1/4 inch automatic deadbolt ASM engages on door close for passive security
• Toggle-style long lever for ADA-conscious operation in multi-housing corridors
• Black with black facia finish for consistent hardware aesthetics

Compatibility

Designed as an OEM-style mortise lockset replacement or new installation for right-hand mortise-prepped doors in multi-housing and commercial residential applications. Specific compatible door prep dimensions and backset requirements should be confirmed against the manufacturer installation template before ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified access control technician familiar with mortise lockset procedures and local building code requirements. Verify door hand and mortise pocket dimensions against the manufacturer template prior to installation. Disconnect or de-energize any existing access control wiring before beginning work. BLE and RFID commissioning should follow the manufacturer programming sequence after mechanical installation is complete.
