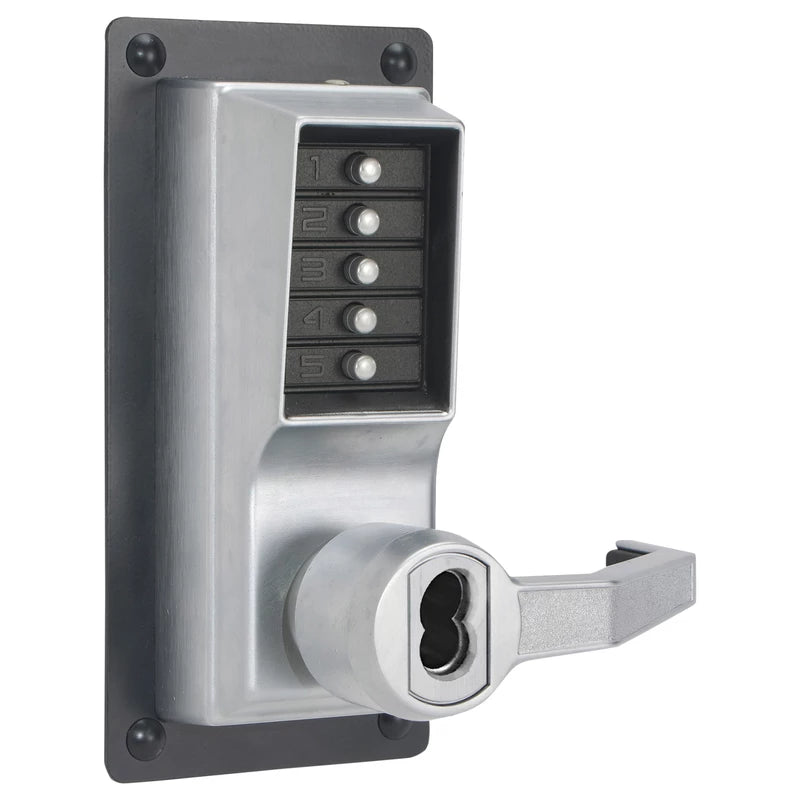

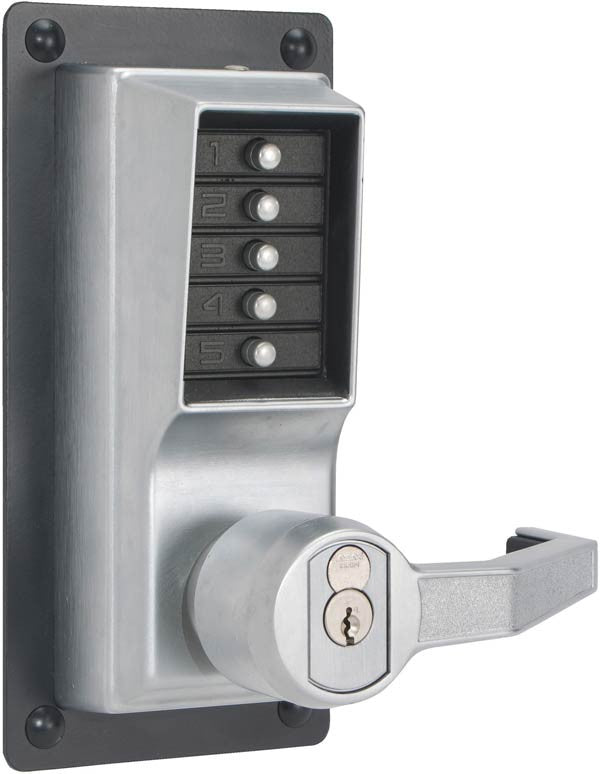

Dormakaba LRP1020B-26D-41 Simplex Exit Trim Pushbutton Lock w/ Lever Combination Entry SFIC Best

Product Description

The DORMAKABA LRP1020B-26D-41 Simplex exit trim is a mechanical pushbutton lock that provides combination-based access control without the need for batteries or wiring. The numeric keypad is vandal-resistant, featuring solid metal pushbuttons. It is compatible with most leading brands of exit devices. The lock is easily programmed via the keypad without removing it from the door.

• Numeric Keypad is Vandal resistant with solid metal pushbuttons
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Easy-to-manage single access code for all users

Product Highlights

This heavy-duty, weather-resistant lock has a fixed ADA-compliant lever and a 3-hour UL/ULC fire rating for "A" labeled doors.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LRP1020B-26D-41

Technical Specifications

• Strike: Supplied with Exit Device
• Tailpiece: 2-3/4 in. for Exit Device operation from outside
• Minimum Stile Recommended: 5 in.
• SFIC: Best and Equivalents (6 or 7-pin length) Core not included
• Door Preparation: Recessed through bolts may be required for Exit Device preparation
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Accessibility Standard: Americans with Disabilities Act (ADA) fixed ADA-compliant lever
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Lock is: Weather Resistant
• Supplied with the Lock: Installation Manual, Full-Scale Template, and Required Installation Hardware
• Design Style: Lever
• Door Prep: 2-1/8"
• Door Type: Wood or Metal
• Environment Rating: Highly Weather Resistant
• Function: Nightlatch
• Grade: Grade 1 - Heavy Duty Commercial
• Handing: Right Hand Reverse
• Industry Finish: US26D/626 Satin Chrome
• Key Override: Small Format Interchangeable Core (SFIC) 6 or 7Pin (Core not Included)
• Keyway: Less Core
• Knob/Lever: Lever
• Locking Device: Exit Device (Not Included)
• Manufacturer: dormakaba
• Misc: Can not be used with surface-mounted Exit Devices with clockwise rotating hubs with mortise design or most vertical rod Exit Devices. Weight 8 lbs. (3.6 kg)
• Options: Exit Device Operator
• Pin Access: Single Code 1 - 5 Digits (Pressed Individually or Simultaneously)
• Pinning: 6-Pin or 7-Pin - Less Core
• Series: 1000
• Standards / Ratings: ANSI 156.2 / Grade 1 / 3-Hour UL/ULC Fire Rating for "A" Label Doors, ADA Compliant
• Strike Type: ASA 4-7/8"
• Type - Additional Info: Exit Device Trim
• Model: LRP1020B-26D-41
• Finish: Satin Chrome (US26D/626)
• Backset: N/A (exit trim)
• Latch Throw: N/A
