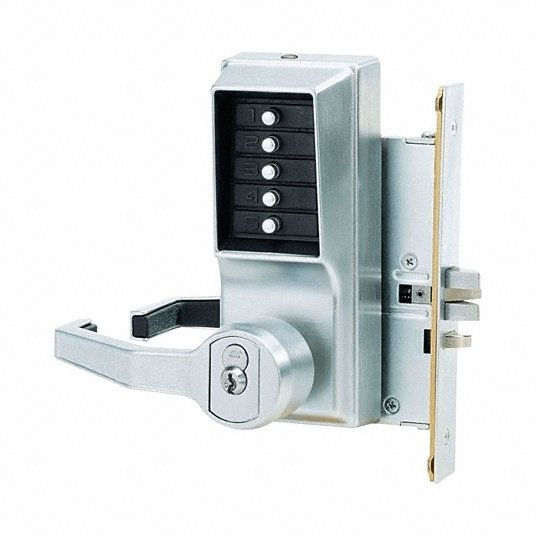

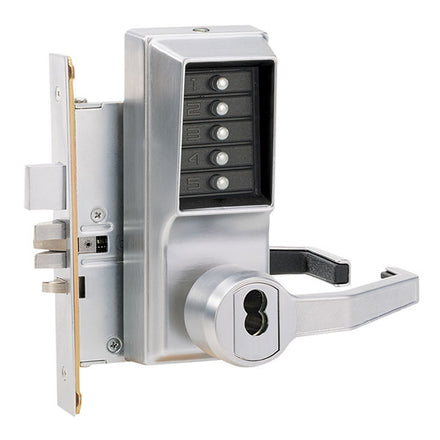

Dormakaba LR8148B-26D-41 Simplex Mechanical Pushbutton Mortise Lock with Deadbolt Best

Product Description

The DORMAKABA LR8148B-26D-41 Simplex mechanical pushbutton mortise lock provides combination-based access control without the need for batteries or wiring. Designed for commercial applications, it ensures reliability with a mortise and optional deadbolt for added security. It allows exterior access by combination and free egress.

• Mechanical pushbutton lock eliminates costs of managing keys and cards.
• Lock is easily programmed via keypad without removing it from the door.
• Vandal-resistant, solid metal pushbuttons.

Product Highlights

This cost-effective access control solution is easily programmed and field reversible. It features a single access code for all users.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LR8148B-26D-41
• Country of Origin: USA

Technical Specifications

• Brand: Kaba
• Product Code: LR8148B-26D-41
• Handing: Factory-handed; not field reversible
• Locking Device: Mortise with 1" (25 mm) deadbolt, 3/4" (19 mm) two-piece anti-friction latch
• Key Override: Best and Equivalents (6 or 7-pin length); core sold separately
• Construction: Cast front housing; unified trim plate; fixed ADA compliant levers
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Standard Finish: Satin Chrome 26D (626)
• Backset: 2 " (70 mm)
• Latch: " (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
• Minimum Stile Recommended: 5" (127 mm)
• Strike: 4?" (124 mm) L x 1 " (32 mm) W x " (6 mm) D Deadbolt/Latch mortise strike plate
• Finishes: US26D (626) Satin Chrome

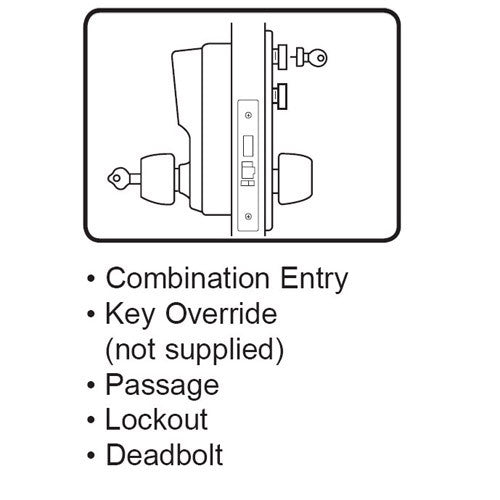

• Lock Function: Combination Entry/Passage Function with Key Override
• Usage: Heavy Duty
• Deadbolt: 1" deadbolt
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Door Thickness: 1-3/4 in. to 2-1/4 in.
• Model: LR8148B-26D-41
• Series: Simplex 8100 Series
• Function: Mortise Lock
• Finish: Satin Chrome (US26D/626)
• Grade: ANSI/BHMA Grade 1
• Latch Throw: 3/4 in. deadbolt
• Fire Rating: 3-hour UL/ULC
• Color: Satin Chrome
• Base Material: Brass or Bronze
• Installation: Commercial
• Finish Family: Matte Silver
• Cylinder Type: SFIC Prep Less Core
• Lock Platform: Mortise Lock with Keypad Trim
• Details: Provides exterior access by combination, while allowing free egress.
• Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: Weather resistant
• Special Marks: Complies with ADA accessibility guidelines
• Package Qty: 1
• Color Code: 626/US26D
• Hand: Left Hand
• Strike Size: 4-7/8" x 1-1/4"
• Latch Size: 3-1/4 Inch
• Standards: UL/ULC Fire Rating
• Cylinder Type Used: Small Format Interchangeable Core
• Function Family: Pushbutton Lock
• Product Projection: 3-13/16 Inch

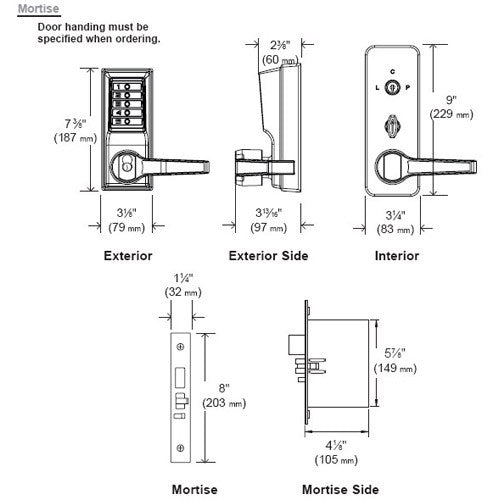

• Rose/Escutcheon Width: 3-1/8" (Exterior); 3-1/4" (Interior)
• Rose/Escutcheon Length: 7-3/8" Exterior; 9" Interior
• Number of Pins: 6 or 7
• Manufacturer Parent: DormaKaba
• Sub-Series: LR8148-B-26D-41
• Alternate Part Number-1: 189565
