Product Description

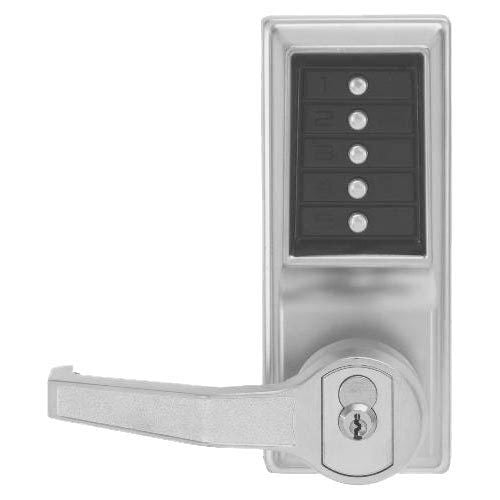

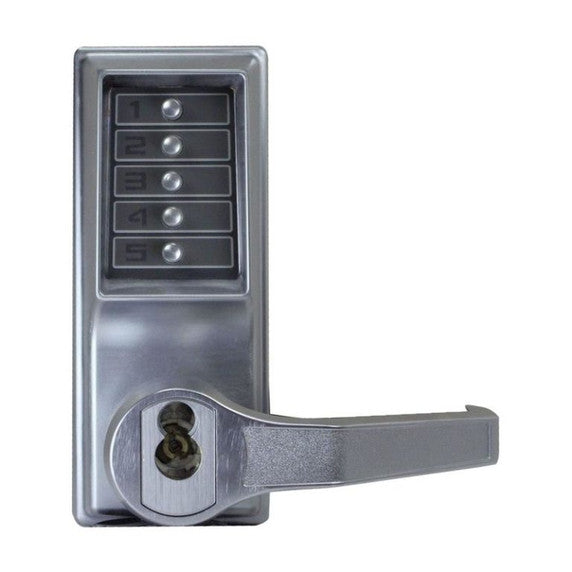

The DORMAKABA LR1041B-26D-41 is a Simplex mechanical pushbutton lock with a small format I/C, Best and Equivalents key bypass, and passage mode, designed to control access between public and private areas. It features an ADA-compliant lever and requires no batteries. The lock is easily programmed via the keypad without removing it from the door.
- Single access code for all users.
- Factory-handed; not field reversible.
- Allows access without using the lock entry code when activated from the inside.
Product Highlights
This mechanical pushbutton lock offers keyless entry with a single access code, key override, and passage mode. It is ADA-compliant and weather-resistant, suitable for indoor and outdoor use.
Product Information
Standard Information
-
Brand: DORMAKABA
-
Manufacturer Part Number: LR1041B-26D-41
-
Country of Origin: United States
Technical Specifications
-

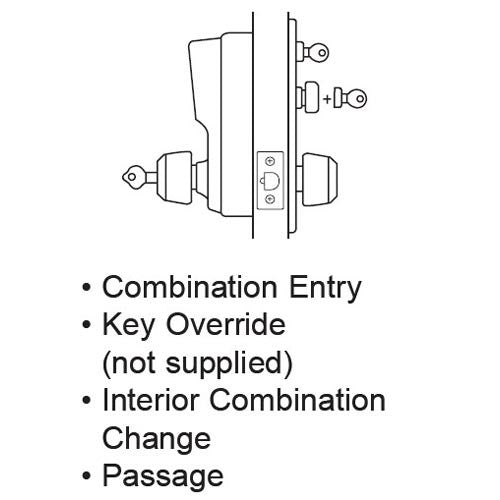

Function: Cylindrical Lock, Combination Entry, Key Override and Passage Mode
-
Locking Device Option: Cylindrical 1/2 (13mm) throw latch, floating face plate
-
Key Override Options: Small Format I/C, Best and Equivalents (6 or 7-pin Length), core not included
-
Series: Simplex L1000 Series
-
Finish: Satin Chrome (US26D/626)
-
Grade: ANSI/BHMA Grade 1
-

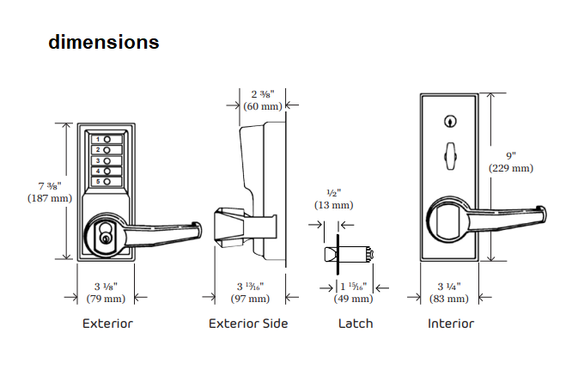

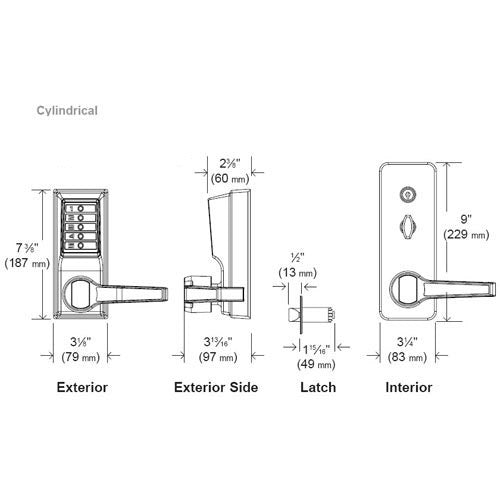

Backset: 2-3/4 in. (70mm)
-
Latch Throw: 1/2 in. (13mm)
-
Door Thickness: 1-3/8 in. to 2-1/4 in.
-
Handing: Right Hand (factory handed)
-
Fire Rating: 3-hour UL/ULC
-
Key Override: Best SFIC (core not included)
-
Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
-
Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on A labeled doors
-
Numeric Keypad: Vandal resistant, solid metal pushbuttons
-
Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)
Optional Finishes Bright Brass 03 (605), Bright Chrome 026 (625)
-
Latch: (13 mm) throw latch, (19 mm) throw latch (optional)
-
Minimum Stile Recommended: 5" (127 mm)
-
Strike: Standard strike plate; ASA strike plate
-
Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
-
Interchangeable Cores: Small format Best and equivalents (6 or 7-pin length); core not included
-
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
-
Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
-
Model: Kaba Simplex LR1041B 26D, LR1041B 05, LR1041B 03, LR1041B 026
-
MPN: LR1041B-26D-41
-
Combinating: SFIC - Small Format Interchangeable Core
-
Design Style: Lever
-
Door Prep: 2-1/8" x 1" with two 1" Holes for Combination Change and Passage Option and two 1/4" Holes for Mounting Bolts
-
Door Type: Wood or Metal
-
Environment Rating: Highly Weather Resistant
-
Pin Access: Single Code 1 - 5 Digits (Pressed Individually or Simultaneously)
-
Pinning: 6-Pin or 7-Pin - Less Core
-
Standards / Ratings: ANSI 156.2 / Grade 1 / 3-Hour UL/ULC Fire Rating for "A" Label Doors
-
Strike Type: ASA 4-7/8"
-
Type - Additional Info: Cylindrical
-
Latch/Bolt/Backset: 2-3/4"
