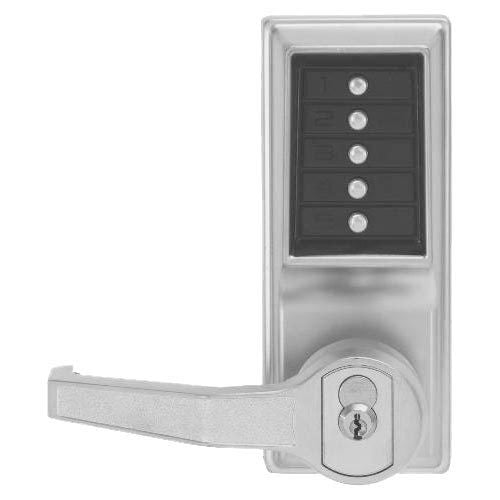

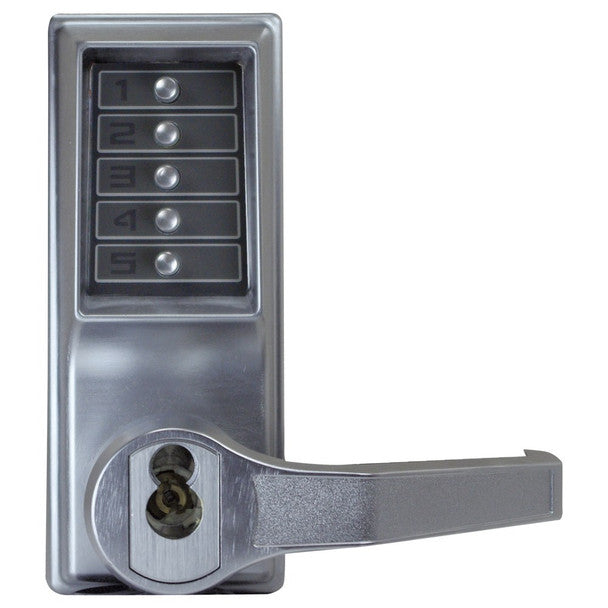

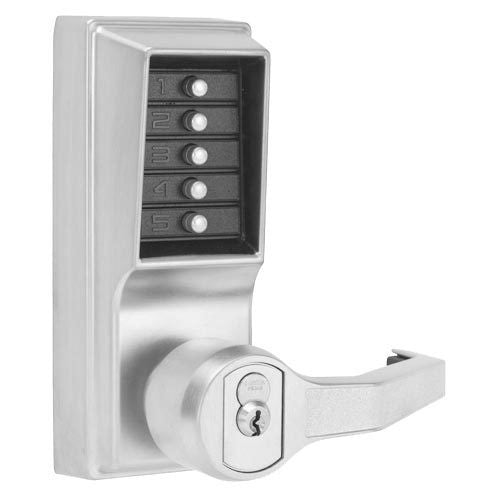

Dormakaba Lr1021s-26d-41 Kaba Simplex Push Button Lock Schlage prepped

Product Description

The DORMAKABA LR1021S-26D-41 is a mechanical push button lock that offers combination entry and Schlage key override. This Simplex lock provides access control without the need for batteries or wiring. It is factory-handed and features an ADA-compliant lever design and vandal-resistant metal pushbuttons.

• Single access code for all users
• Easily programmed via keypad without removing the lock
• Prepped for Schlage SFIC key override (core sold separately)

Product Highlights

DORMAKABA LR1021S-26D-41 offers a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, and no batteries to replace.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LR1021S-26D-41

Technical Specifications

• Finish: 26D Satin Chrome (626)
• Handing: Right Hand or Right Hand Reverse
• Keying: Schlage Removable Core Prep, (less core)

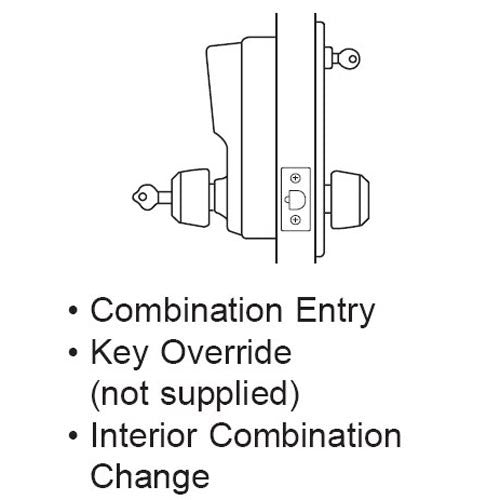

• Function: Combination Entry with Key Override

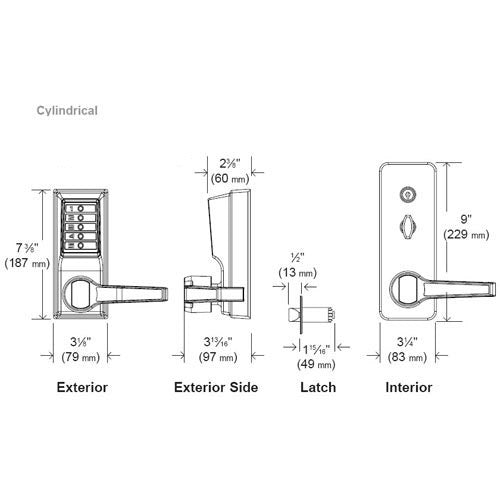

• Locking Device: Cylindrical 1/2 (13mm) throw latch, floating face plate 2-3/4 (70mm) backset (UL listed)
• Lock Type: Cylindrical lock with combination entry and key override
• Fire Rating: 3-hour UL/ULC
• Key Override: Schlage SFIC (core not included)
• Minimum Stile: 5" (127 mm)
• Face Plate: Floating face plate
• Cylindrical Throw Latch: 1/2 inch (13 mm) throw latch
• Backset: 2-3/4 in. (70mm)
• Model: LR1021S-26D-41
• Series: Simplex L1000 Series
• Grade: ANSI/BHMA Grade 1
• Latch Throw: 1/2 in. (13mm)
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Brand: Simplex
• Special Feature: Push Button Lock
• Material: Alloy Steel
• Style: Modern
• Number of Pieces: 1
• Manufacturer: DORMAKABA USA INC kaba
• Unit Count: 1.0 Count
• Manufacturer Part Number: LL1021S-26D
• Additional Features: Push Button Lock
• Controller Type: Hand Control
• Control Method: Touch
• Style Name: Modern
• Material Type: Alloy Steel
