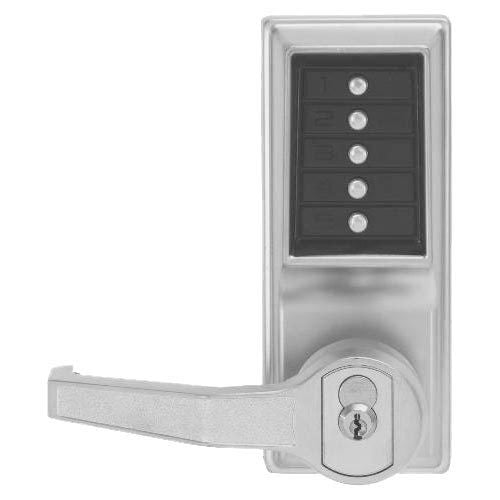

Dormakaba LR1021R-26D-41 Pushbutton Lever Lock with Sargent Core Override

Product Description

The DORMAKABA LR1021R-26D-41 Simplex Pushbutton Lever Lock eliminates the costs associated with managing keys and cards. It provides exterior access via combination and allows free egress. This vandal-resistant hardware is ideal for high-traffic commercial, institutional, and government buildings. It installs easily on wood or metal doors and covers existing standard ASA 161 door holes.

• Keyless lock is simple to install, use, and maintain
• Easily programmed via keypad without removing the lock from the door
• Sargent key override feature; core not included

Product Highlights

DORMAKABA LR1021R-26D-41 is a mechanical pushbutton lever lock prepped for Sargent I.C. Key Bypass (less core) to control access. There are no keys or cards to manage, no computers to program, and no batteries to replace.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LR1021R-26D-41
• Country of Origin: United States

Technical Specifications

• Brand: Dormakaba
• MPN: LR1021R-26D-41
• SKU: LR1021R-26D-41
• Function: Cylindrical Lock, Combination Entry and Key Override
• Locking Device Option: Cylindrical 1/2 (13mm) throw latch, floating face plate
• Backset: 2-3/4 (70mm)
• Key Override Options: Large Format R/C, Sargent (5 or 6 pin length), core not included
• Operation Mode Options: Single credential access
• Certification and Standards: Americans with Disabilities Act (ADA)
• Fire Rating: 3-hour UL/ULC fire rating for "A" label doors
• Country of Origin: United States
• Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
• Door Thickness: 1 3/8" (35 mm) to 2 1/4" (57 mm) Pre-assembled to accommodate 1 5/8" (41 mm) to 2" (51 mm) doors
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Latch: 1/2" (13 mm) throw latch, 3/4" (19 mm) throw latch (optional)
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
