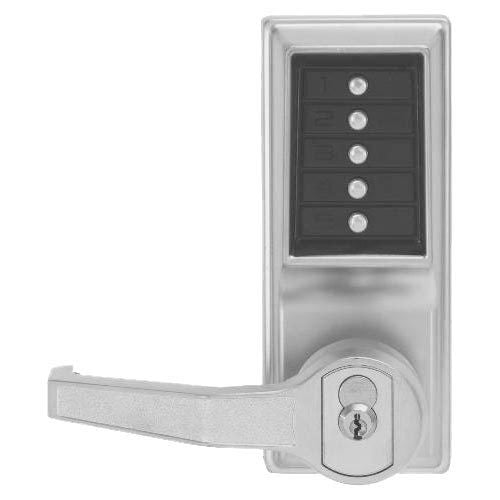

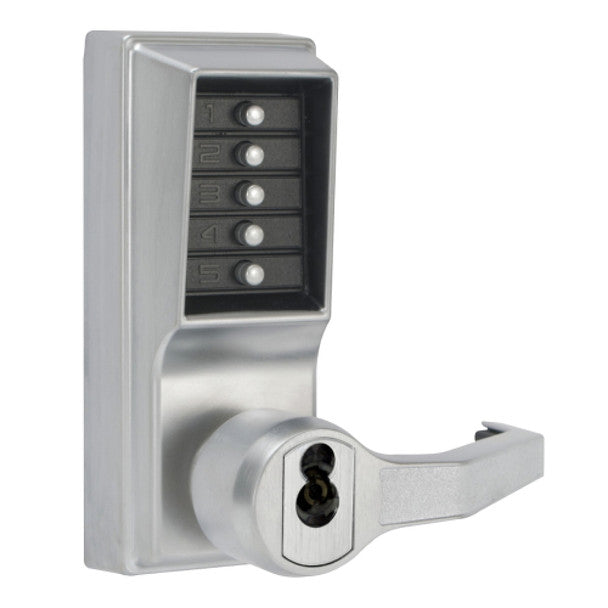

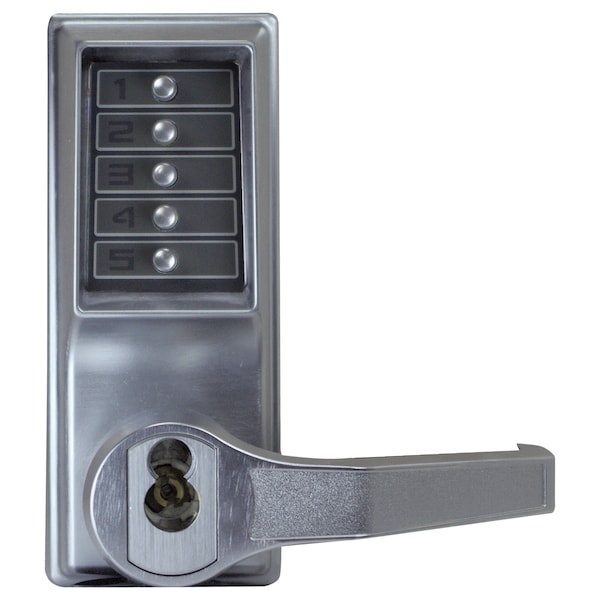

Dormakaba LR1021M-26D-41 Simplex L1000 Series Pushbutton Lever Lock Combination Entry Key Override Medeco/Yale/ASSA/Abloy LFIC Prep Right Hand/Right Hand Reverse

Product Description

The DORMAKABA LR1021M-26D-41 Simplex L1000 Series is a pushbutton cylindrical lever lock with combination entry and key override. It eliminates the need for battery replacements and has a single access-code. Easily installs on wood or metal doors with ASA 161 door preparation with additional through holes. It is factory-handed and not field reversible.

• Pushbutton Cylindrical Lever Lock
• Combination Entry Function with Key Override
• 2-3/4" Backset

Product Highlights

This heavy-duty cylindrical lock has a cast front housing, unified trim plate, and fixed ADA-compliant levers. It is weather resistant

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LR1021M-26D-41
• Country of Origin: Mexico

Technical Specifications

• Installation: Commercial
• Fire Rating: 3 Hours
• ADA Compliance: Yes
• Std. Strike Type: ASA
• Lever/Knob Design Family: Curved Return Lever
• Lock Platform: Cylindrical Lock with Keypad Trim
• Latch Backset Dimension: 2-3/4"
• Access Function: Field Configurable
• Handing: Right Hand/Right Hand Reverse
• Keypad Type: Mechanical
• Series Name: Simplex
• Function: Cylindrical Lock, Combination Entry, and Key Override
• Door Thickness: 1-3/8" to 2-1/4"
• Cylinder Type: Medeco, Yale, ASSA LFIC Less Core
• Locking Device Option: Cylindrical 1/2” (13mm) throw latch, floating face plate 2-3/4” (70mm) backset (UL listed)
• Key Override Options: Large Format R/C, Medeco/ASSA/Yale (5 or 6 pin length), core not included
• Operation Mode Options: -Single credential—access -Passage (select models)—Allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models) -Privacy (select models)—Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only when in this mode
• Certification and Standards: -Americans with Disabilities Act (ADA) -Compliance with D.O.D. 5220.22M; Highly weather resistant -3-hour UL/ULC fire rating for "A" label doors
• Minimum Stile Recommended: 5" (127 mm)
• Face Plate: Floating face plate
• Cylindrical Throw Latch: 1/2 inch (13 mm) throw latch
• Backset: 2-3/4 inch (70 mm)
• MFR #: LR1021M-26D-41
