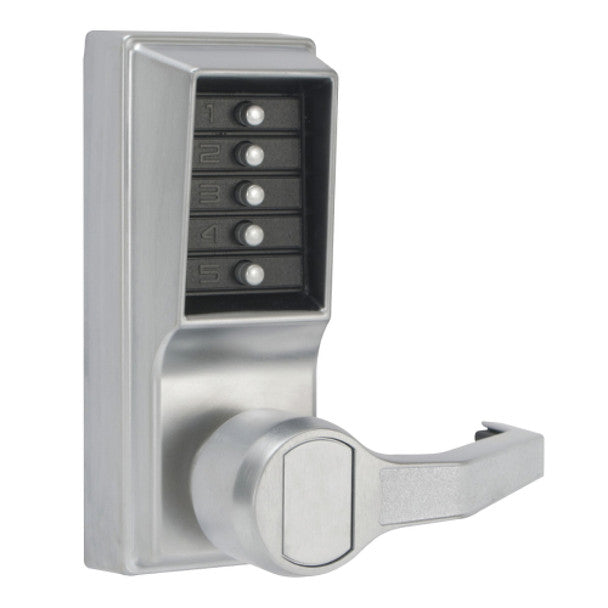

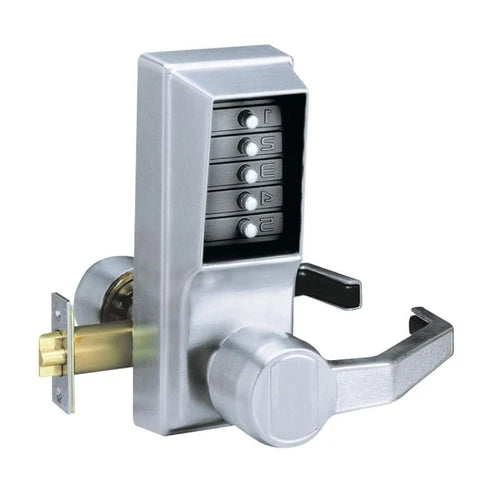

Dormakaba LR1011-26D-41 Kaba Simplex Mechanical Push Button Lock Right Hand/Right Hand Reverse

Product Description

The DORMAKABA LR1011-26D-41 Kaba Simplex mechanical pushbutton lock offers a convenient way to control access between public and private areas. This cylindrical lever lock features a single access code and is easily programmed via the keypad without removing it from the door. It has a 2-3/4" backset and a 1/2" throw latch.

• Single access code for all users
• Easily programmed via keypad without removing the lock
• Factory-handed; not field reversible

Product Highlights

Durable and weather-resistant mechanical pushbutton lock with ADA compliance. Ideal for controlling access without keys or cards.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LR1011-26D-41

Technical Specifications

• Brand: Kaba
• Product Code: LR1011-26D-41
• Finish: 26D Satin Chrome (626)
• Handing: Right Hand or Right Hand Reverse
• Function: Cylindrical Lock, Combination Entry Only, No Key Override
• Locking Device: Cylindrical 1/2 (13mm) throw latch, floating face plate 2-3/4 (70mm) backset (UL listed)
• Installation: Commercial
• Fire Rating: 3 Hours
• ADA Compliance: Yes
• Std. Strike Type: ASA
• Lever/Knob Design Family: Curved Return Lever
• Lock Platform: Cylindrical Lock with Keypad Trim
• Latch Backset Dimension: 2-3/4"
• Keypad Type: Mechanical
• Series Name: Simplex
• Door Thickness: 1-3/8" to 2-1/4"
• Access Function: Entry
