Dormakaba Llp1020s-26d-41 Simplex Exit Trim Pushbutton Lock w/ Lever Combination Entry Lfic Schlage Llp1020s-26d-41

Product Description

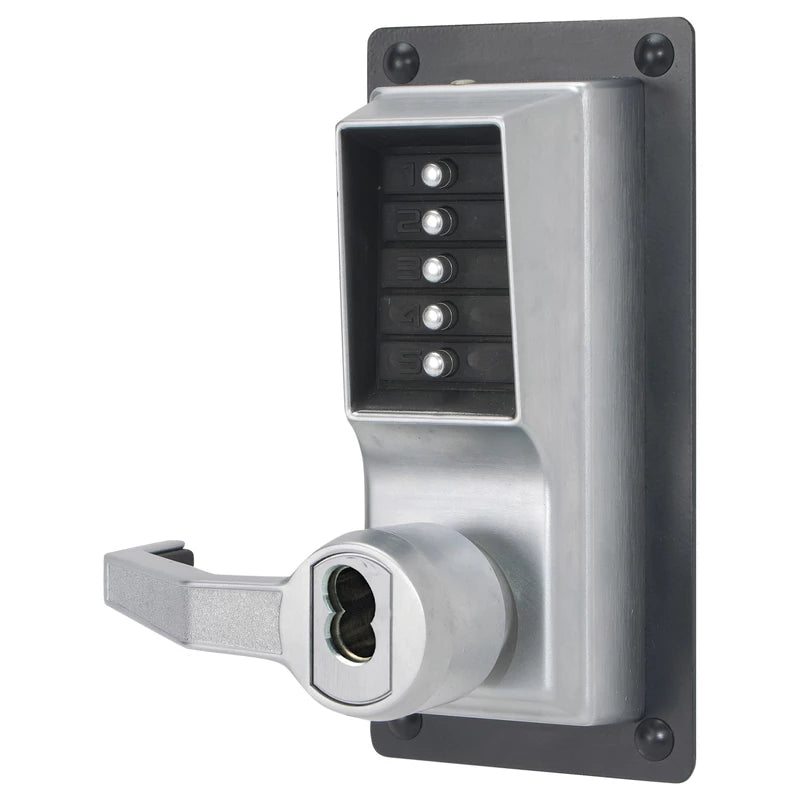

The DORMAKABA LLP1020S-26D-41 Simplex mechanical pushbutton lock is a lever prepped for Schlage I.C. Key Bypass (less core) to control access between public and private areas. The numeric keypad is vandal resistant with solid metal pushbuttons. This fully mechanical lock eliminates battery replacements. It features an easy-to-manage single access code for all users.

• Numeric Keypad is Vandal resistant with solid metal pushbuttons
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Easy-to-manage single access code for all users

Product Highlights

This rim exit locking device is compatible with most leading brands of exit devices. It is factory handed for left hand or left hand reverse and is not field reversible. The lock has a 3-hour UL/ULC fire rating.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LLP1020S-26D-41

Technical Specifications

• Strike: Supplied with Exit Device
• Tailpiece: 2-3/4 in. tailpiece for Exit Device operation from outside
• Minimum Stile Recommended: 5 in.
• Core: SFIC Best and Equivalents (6 or 7-pin length) Core not included
• Door Preparation: Recessed through bolts may be required for Exit Device preparation
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Accessibility Standard: Americans with Disabilities Act (ADA) fixed ADA-compliant lever
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Weather Resistance: Lock is Weather Resistant
• Brand: Kaba
• Product Code: LLP1020S-26D-41
