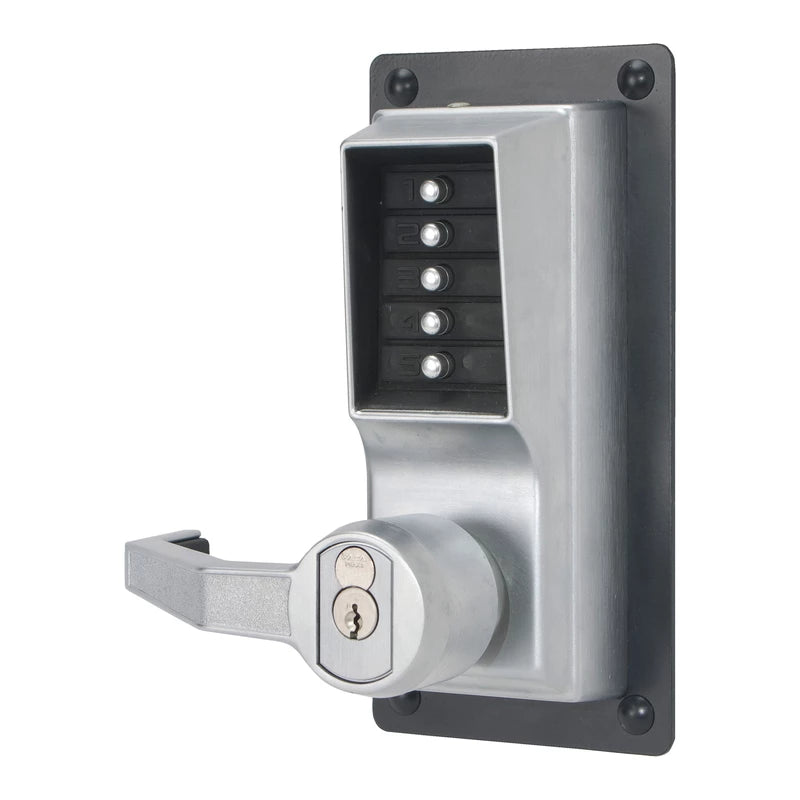

Dormakaba LLP1020B-26D-41 Simplex Exit Trim Pushbutton Lock w/ Lever Combination Entry SFIC Best

Product Description

The DORMAKABA LLP1020B-26D-41 Simplex Exit Trim provides exterior access by combination while allowing free egress with an exit device (not supplied). The numeric keypad is vandal resistant with solid metal pushbuttons. This fully mechanical lock eliminates the expense of battery replacements, and the lock is easily programmed via the keypad.

• Numeric Keypad is Vandal resistant with solid metal pushbuttons
• Fully mechanical lock eliminates the material and labor expense of battery replacements
• Easy-to-manage single access code for all users

Product Highlights

The DORMAKABA Simplex Exit Trim offers a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, and combinations can be changed in seconds.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LLP1020B-26D-41
• Country of Origin: Mexico

Technical Specifications

• SFIC: Best and Equivalents (6 or 7-pin length) Core not included
• Door Preparation: Recessed through bolts may be required for Exit Device preparation
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Accessibility Standard: Americans with Disabilities Act (ADA) fixed ADA-compliant lever
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Lock Platform: Exit Device Trim, Rim with Keypad
• Cylinder Type: SFIC Prep Less Core
• Finish: Satin Chrome
• For Use With: Simplex LP1000 Series
• Material: Brass or Bronze
• Includes: Rim Exit Trim with Keypad
• Features: SFIC Prep Less Core
