Product Description

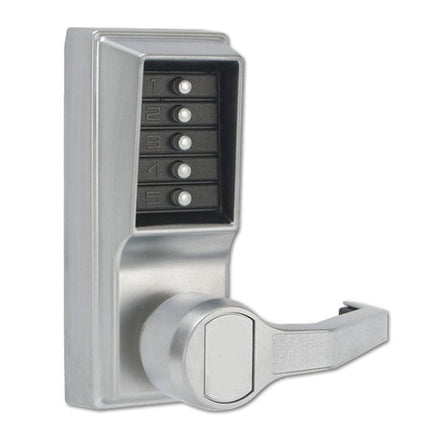

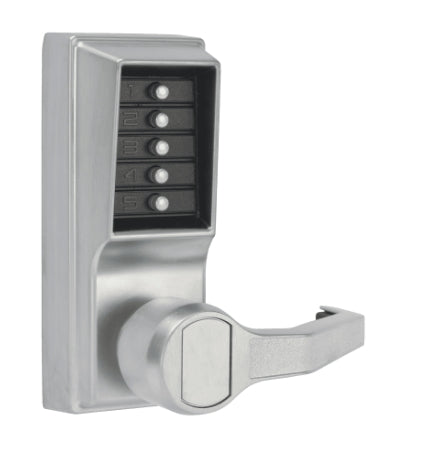

The DORMAKABA LL1031-26D-41 Simplex Push Button Passage Lock allows combination or passage entry. The passage feature allows access without using the lock entry code and is activated from the inside with a thumb turn. This mechanical lock doesn't need batteries and has an ADA-compliant lever.
- Passage function allows access without entry code.
- Left Hand or Left Hand Reverse Only, (factory handed, not field reversible)
- ADA-compliant lever
Product Highlights
This heavy-duty cylindrical lock provides exterior access by combination and allows free egress. It eliminates the costs associated with issuing and controlling keys and cards.
Product Information
Standard Information
-
Brand: DORMAKABA
-
Manufacturer Part Number: LL1031-26D-41
-
Country of Origin: United States
Technical Specifications
-
Brand: Dormakaba
-
Product Code: LL1031-26D-41
-
Finishes: US26D (626) Satin Chrome, US5 (609) Antique Brass, US3 (605) Bright Brass, US26 (625) Bright Chrome
-

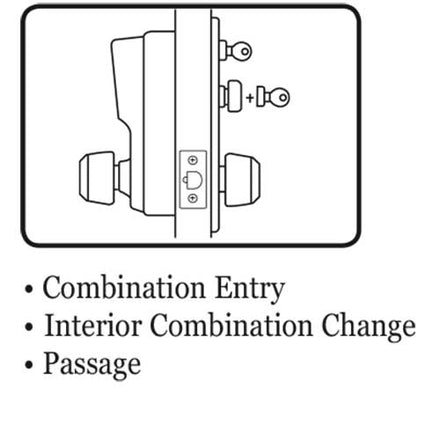

Lock Function: Combination Entry/Passage Functions Only
-
Usage: Heavy Duty
-
Backset: 2-3/4"
-
Latch: 2-3/4" Backset, 1/2" Throw Latch - Standard
-
Strike: ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
-
Fire-Rating: UL and cUL Listed – up to 3 Hours
-
ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
-
Door Thickness: Cylindrical: 1-3/8" to 2-1/4"; Pre-Assembled to Accommodate Door: 1-5/8" to 2"
-
Warranty: 3 Year Limited
-
Color Code: 626/US26D
-
Lock Platform: Cylindrical Lock
-
Base Material: Brass or Bronze
-
Dimensions: 7-3/8"H x 3-1/8"W x 3-13/16"D
-
Handle Type: Lever
-
Pack Size: 1
-
Access Type: Keypad
-
Finish: Satin Chrome
-
Handing: LH
-
Finish Description: Satin Chrome
-
Function: 3-Combination Entry and Passage
-
Product Type: Push Button Lock
-
Series: L1000 Series Simplex
-
ADA Approved: False
-
UNSPSC: 46171500
-
Application: Commercial; Residential; Industrial; Healthcare; Education; Military and Government; Utilities
-
Hand: Left Hand
-
Latch Throw: 1/2 Inch
-
ADA Compliant: No
-
Finish Family: Satin Chrome
-
Included Components: Installation Manual; Full-Scale Template; Required Installation Hardware
-
Lever Style: Simplex
-
Rose/Escutcheon Trim: Simplex
-
Locking Device: Cylindrical
-
Standards: UL Listed; D.O.D. Compliant
-
Function Family: Pushbutton Lock
-
Minimum Stile Width: 5 Inch
-
Faceplate Type: Floating
-
Features: Lock is Easily Programmed Via Keypad Without Removing Lock From the Door; Heavy-Duty Cylindrical Lock Housing With Cast Front Housing; Unified Trim Plate; Weather Resistant; Solid Metal Pushbuttons
-
Manufacturer Parent: DormaKaba
-
Programming Method: Keypad
-
Number of Access Codes: 1
-
Lock Dimensions: 7-3/8" x 3-1/8"
-
Sub-Series: LL1031-26D-41
-
Alternate Part Number-1: 119577
-
Lock Category: Cylindrical Lock
-
Proximity Format: Pushbutton Combination
-
Knob/Lever Style: Lever
-
Aluminium Bottle Contents: Swinging
-
ProductType: Manual
-
Height: 8.07
-
Length: 10.83
-
Width: 10.24
-
Grade: Grade 1
-
Model: Combination Entry and Passage
-
Keyed: No
-
Door Handing: Field Reversible
-
Substrate Type: Brass or Bronze
-
Stile Width: 5"
-
Lock Type: Cylindrical
-
Door Strike: Standard Strike plate, ASA Strike plate
-
Condition: New
-
Country of Origin: United States
-
Item Weight: 9.0000
