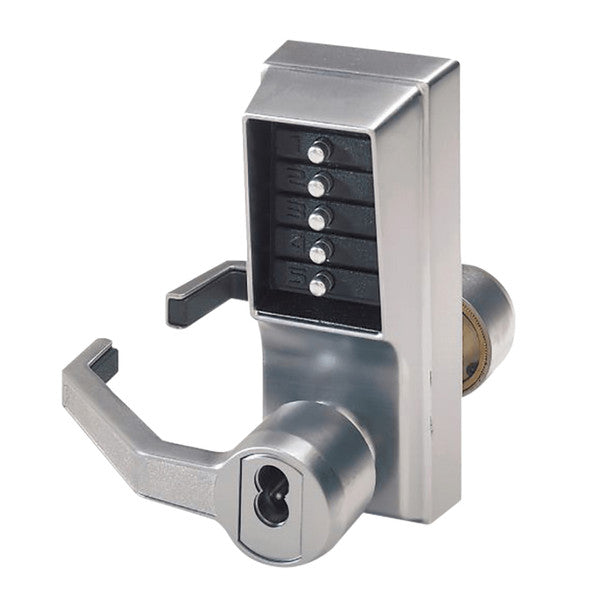

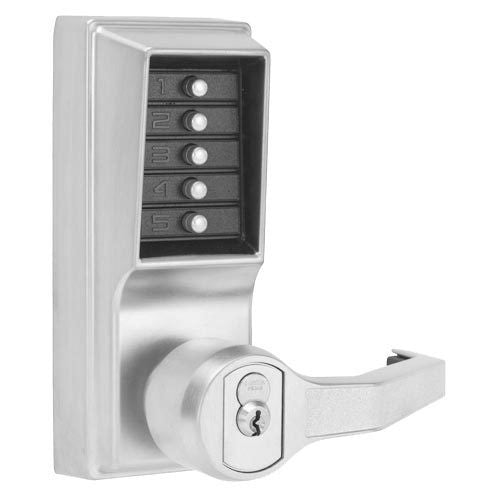

Dormakaba LL1021R-26D-41 Pushbutton Lever Lock Prepped For Sargent Core Override

Product Description

The DORMAKABA LL1021R-26D-41 Simplex Pushbutton Lock eliminates the need for keys and cards, providing exterior access via combination and free egress. This lock is weather-resistant and ANSI Grade 1 rated. It grants entry with a pre-programmed 1 to 5 digit code and is suited for high-traffic commercial, institutional, and government buildings.

• Keyless lock is simple to install, use and maintain
• Thousands of possible code combinations
• Vandal resistant hardware with solid metal pushbuttons

Product Highlights

This cylindrical lock features combination entry and key override. It's economical, ADA compliant, and has a single access code for all users.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LL1021R-26D-41
• Country of Origin: United States

Technical Specifications

• Finish: Satin Chrome
• Lock Type: Cylindrical lock
• Key Override: Sargent key override feature; core not included
• Door Compatibility: It easily installs on wood or metal doors
• Minimum Stile: 5" (127 mm)
• Face Plate: Floating face plate
• Cylindrical Throw Latch: 1/2 inch (13 mm) throw latch
• Backset: 2-3/4 inch (70 mm)
• Handing: Factory-handed left hand or left hand reverse handing operation; not field reversible
• UL Listed: UL listed hardware
• Fire Rating: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Lock Platform: Cylindrical Lock with Keypad Trim
• Access Function: Field Configurable
• Keypad Type: Mechanical
• Cylinder Type: Sargent LFIC Less Core
• Door Thickness: 1-3/8" to 2-1/4"
• Latch Backset Dimension: 2-3/4"
• Strike Type: ASA
• Function: Cylindrical Lock, Combination Entry and Key Override
• Locking Device Option: Cylindrical 1/2 (13mm) throw latch, floating face plate
• Key Override Options: Large Format R/C, Sargent (5 or 6 pin length), core not included
• Brand: dormakaba
• MPN: LL1021R-26D-41
• Condition: New
• Country of Origin: United States
