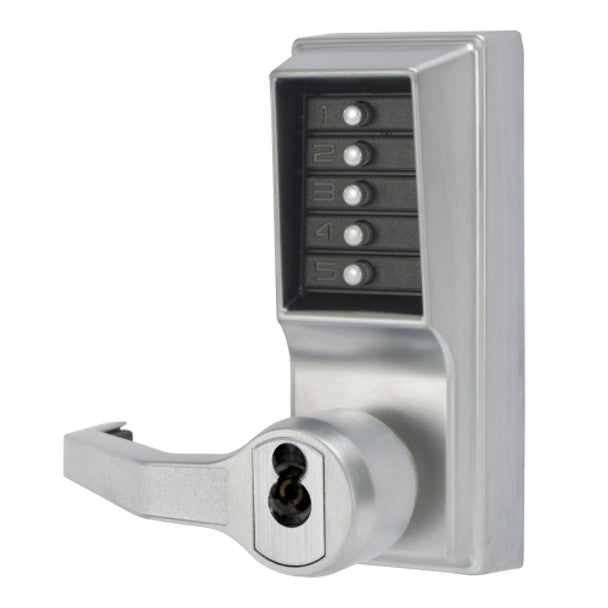

Dormakaba LL1021M-26D-41 Lever Yale/Medeco Prepped

Product Description

The DORMAKABA LL1021M-26D-41 is a Simplex mechanical pushbutton lock with Yale/Medeco I.C. Key Bypass (less core) designed to control access between public and private areas. It features a single access code that is easily programmed via the keypad without removing the lock from the door. It has a factory-handed left hand configuration.

• Single access code—one easy to manage code for all users
• Lock is easily programmed via keypad without removing lock from the door
• Factory-handed; not field reversible

Product Highlights

The LL1021M-26D-41 is a heavy-duty cylindrical lock with a cast front housing, ADA-compliant levers, and vandal-resistant, solid metal pushbuttons.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LL1021M-26D-41
• Country of Origin: United States

Technical Specifications

• Function: Cylindrical Lock, Combination Entry and Key Override
• Locking Device Option: Cylindrical 1/2 (13mm) throw latch, floating face plate 2-3/4 (70mm) backset (UL listed)
• Key Override Options: Large Format R/C, Medeco/ASSA/Yale (5 or 6 pin length), core not included
• Operation Mode Options: Single credential access
• Certification and Standards: -Americans with Disabilities Act (ADA) -Compliance with D.O.D. 5220.22M; Highly weather resistant -3-hour UL/ULC fire rating for "A" label doors
• Brand: dormakaba
• MPN: LL1021M-26D-41
• Country of Origin: United States
• Installation: Commercial
• Fire Rating: 3 Hours
• ADA Compliance: Yes
• Std. Strike Type: ASA
• Lever/Knob Design Family: Curved Return Lever
• Lock Platform: Cylindrical Lock with Keypad Trim
• Latch Backset Dimension: 2-3/4"
• Access Function: Field Configurable
• Handing: Left Hand/Left Hand Reverse
• Keypad Type: Mechanical
• Series Name: Simplex
• Door Thickness: 1-3/8" to 2-1/4"
• Cylinder Type: Medeco, Yale, ASSA LFIC Less Core
• Finish Description: Satin Chrome
• Finish Family: Matte Silver
• Strike Type: ASA
• Product Type: Cylindrical Locks with Keypad Trim
• Manufacturer: DormaKaba
• Door Hand: Left Hand
