Product Description

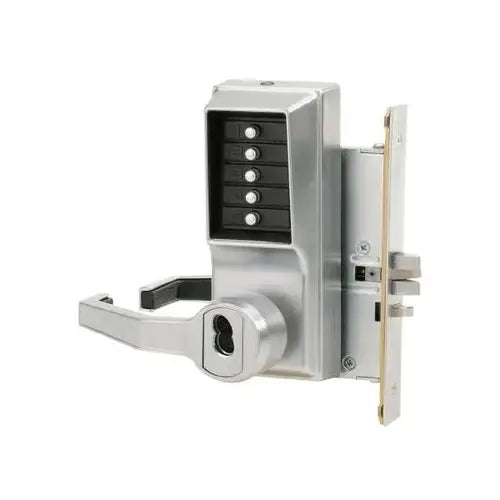

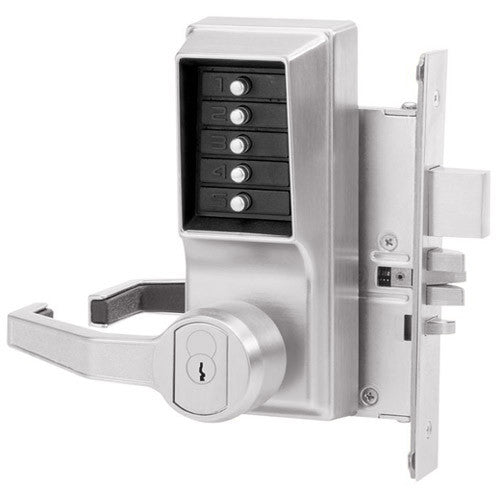

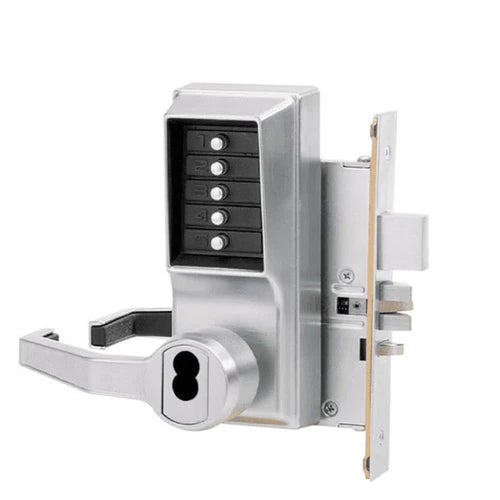

The DORMAKABA L8148B-26D-41 from the Simplex 8100 Series is a mechanical pushbutton mortise lock trusted in government facilities, hospitals, and commercial buildings worldwide. It provides exterior access by combination and allows free egress. The combination can be changed at the keypad without removing the lock from the door.
- All-mechanical operation - no batteries to replace, no wiring required
- Single access combination with thousands of possible codes
- Prepped for Best SFIC key override - core sold separately
Product Highlights
This vandal-resistant, weather-resistant lock has an ADA-compliant lever design and a 3-hour UL/ULC fire rating.
Product Information
Standard Information
-
Brand: DORMAKABA
-
Manufacturer Part Number: L8148B-26D-41
-
Country of Origin: US
Technical Specifications
-
Model: L8148B-26D-41
-
Series: Simplex 8100 Series
-
Function: Entry
-
Finish: Satin Chrome (US26D/626)
-
Grade: ANSI/BHMA Grade 1
-
Backset: 2-3/4 in. (70mm)
-
Latch Throw: 3/4 in. deadbolt
-
Door Thickness: 1-3/4 in. to 2-1/4 in.
-
Handing: Left Hand (factory handed)
-
Fire Rating: 3-hour UL/ULC
-
Warranty: 3 Year
-
Key Override: Best SFIC (core not included)
-
MPN: L8148B-26D-41
-
Type: Mechanical Push Button Lockset
-
California Prop 65 Warning: N
-
Country of Origin: US
-
NumberOfItems: 1
-
Style: Mechanical Push Button Lockset
-
Item: Mechanical Push Button Lockset
-
Weight: 12.3000
-
Length: 11.000
-
Width: 10.500
-
Depth: 10.500
-
Voltage: N/A
-
Handle Type: Lever
-
Features: Mechanical Push Button Lockset, Handle Type Lever, Function Entry
-
Case Material: Steel
-

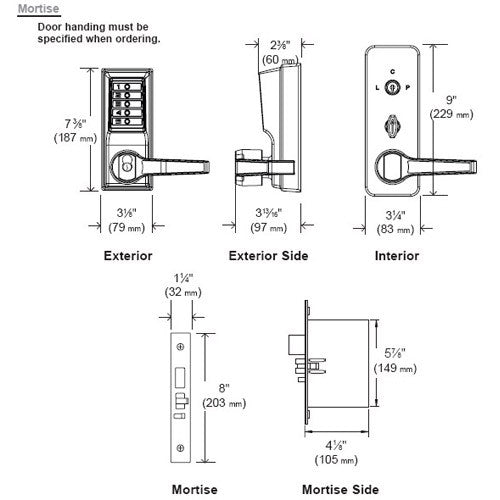

Inside Width: 3-1/4"
-
Inside Depth: 2-3/8"
-
Power Source: N/A
-
Manufacturers Warranty Length: 3 yr.
-
Number of Batteries: N/A
-
Battery Size: N/A
-
Battery Included: No
-
Inside Height: 9"
-
Outside Height: 7-3/8"
-
Weather Resistant: Yes
-
Motor Type: N/A
-
Battery Capacity: N/A
-
Battery Life: N/A
-
ADA Compliant: Yes
-
Outside Width: 3-1/8"
-
Cable Length: N/A
-
Outside Depth: 3-13/16"
-
Max. User Codes: 1
-
Key Override Options: Best and Equivalents (6 or 7 Pin)
-
MADE IN THE USA: Yes
-
Package Quantity: 1
-
UL Listed: Yes
-
Door Handing: Left Handed
-
Assembled Product Depth: 2.9 in.
-
AbilityOne: No
-
UNSPSC: 46171503
-
Commercial/Residential: Commercial
-
Assembled Product Height: 2.9 in.
-
Lockset Function: Passage
-
Assembled Product Width: 2.4 in.
-
GSA Approved: No
-
Keyway: C 123
-
TAA/BAA Compliant: Yes
-
Locking Device: Mortise with 1" (25 mm) deadbolt, 3/4" (19 mm) two-piece anti-friction latch
-
Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.
-
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
-
Locking Device Options: Mortise with 1" (25 mm) deadbolt, 3/4" (19 mm) two-piece anti-friction latch Mortise with 3/4" (19 mm) two-piece anti-friction latch.
-
Number of Codes: Single access code—one easy-to-manage code for all users
-
Programming: Lock is easily programmed via keypad without removing lock from the door
-

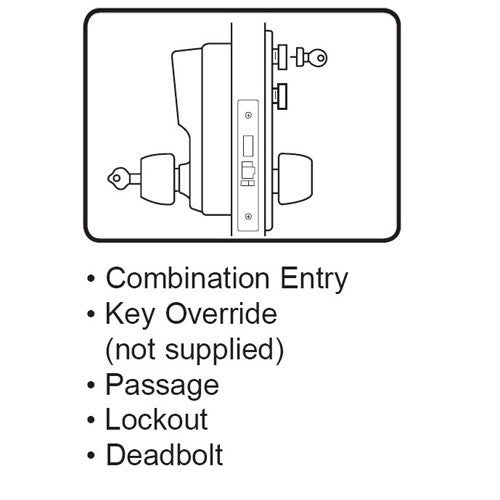

Operation Modes: Pushbutton Access
Passage (select models)—allows access without using the lock entry code.
Feature activated from the inside with a thumbturn or key (included with all passage feature models).
Deadbolt (select models)—added security of 1" deadbolt. Access permitted by combination or key override.
Lockout (all models)—disables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.
-
Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
-
Numeric Keypad: Vandal resistant, solid metal pushbuttons
-
Standard Finish: Satin Chrome 26D (626)
-
Latch: ¾" (19 mm) two-piece anti-friction latch;
1" (25 mm) optional deadbolt
-
Minimum Stile Recommended: 5" (127 mm)
-
Strike: 4?" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
