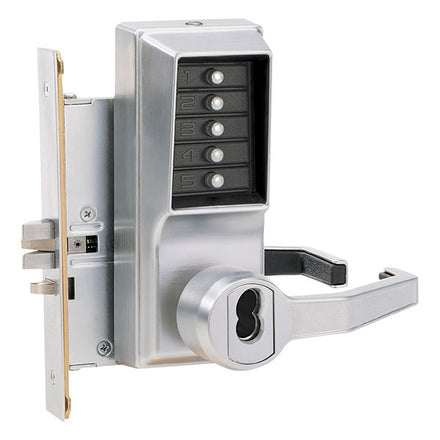

Dormakaba L8146S-26D-41 Simplex Mechanical Pushbutton Mortise Lever Lock Schlage LFIC

Product Description

The DORMAKABA L8146S-26D-41 Simplex mechanical pushbutton mortise lever lock provides exterior access by combination, while allowing free egress. It eliminates the costs associated with managing keys and cards. The lock is easily programmed via the keypad without removing it from the door and is weather-resistant.

• Cost-effective access control solution
• Single access code for all users
• Vandal-resistant, solid metal pushbuttons

Product Highlights

This heavy-duty mechanical lock is a dependable and flexible security solution for various applications. It is ADA compliant and has a 3-hour fire rating.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: L8146S-26D-41
• Country of Origin: United States

Technical Specifications

• Brand: Dormakaba
• MPN: L8146S-26D-41

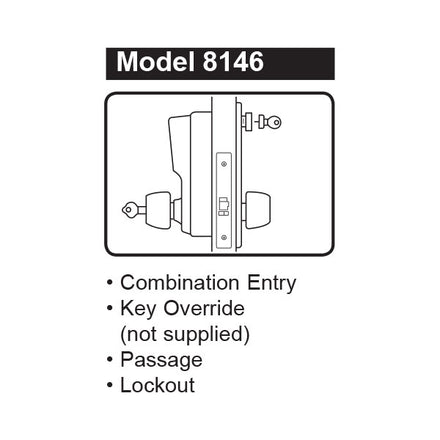

• Lock Function: Combination Entry/Passage Function with Key Override
• Key Override: Schlage Large Format Interchangeable Core (LFIC) (Core not Included)
• Usage: Heavy Duty
• Handing: Left Hand
• Backset: 2-3/4"
• Latch: 3/4" two-piece anti-friction latch
• Strike: 4 ½" L x 1¼" W x ¼" D Deadbolt/Latch mortise strike plate
• Fire-Rating: UL and cUL Listed – up to 3 Hours
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Door Thickness: 1-3/4" - 2-1/4"
• Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Locking Device Options: Mortise with 1" (25 mm) deadbolt, ¾" (19 mm) two-piece anti-friction latch Mortise with ¾" (19 mm) two-piece anti-friction latch.
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Operation Modes: Pushbutton Access
• Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Standard Finish: Satin Chrome 26D (626)
• Minimum Stile Recommended: 5" (127 mm)
• Combinating: LFIC - Large Format Interchangeable Core
• Design Style: Lever
• Door Prep: Standard 86 Prep
• Door Type: Wood or Metal
• Environment Rating: Highly Weather Resistant
• Function: Storeroom or Passage
• Grade: Grade 1 - Heavy Duty Commercial
• Industry Finish: US26D/626 Satin Chrome
• Keyway: Schlage (Less Core)
• Latch/Bolt/Backset: 2-3/4"
• Locking Device: Mortise Deadlatch
• Manufacturer: dormakaba
• Misc: Includes Installation and Combination Change Tool Weight 9.8 lbs. (3.7 kg)
• Pin Access: Single Code 1 - 5 Digits (Pressed Individually or Simultaneously)
• Pinning: Less Core
• Series: 8100
• Standards / Ratings: ANSI 156.2 / Grade 1 / 3-Hour UL/ULC Fire Rating for "A" Label Doors, ADA Compliant
• Strike Type: ASA 4-7/8"
• Type - Additional Info: Mortise
• Country of Origin: United States
