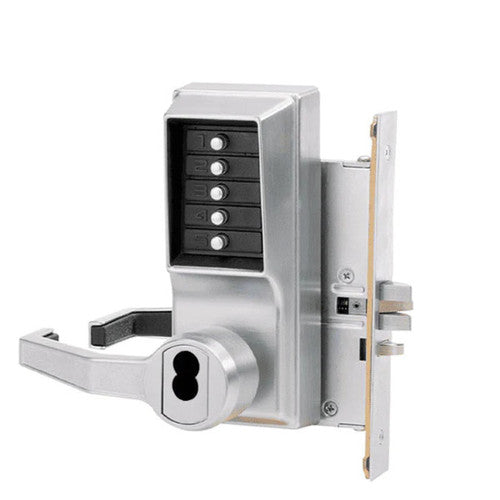

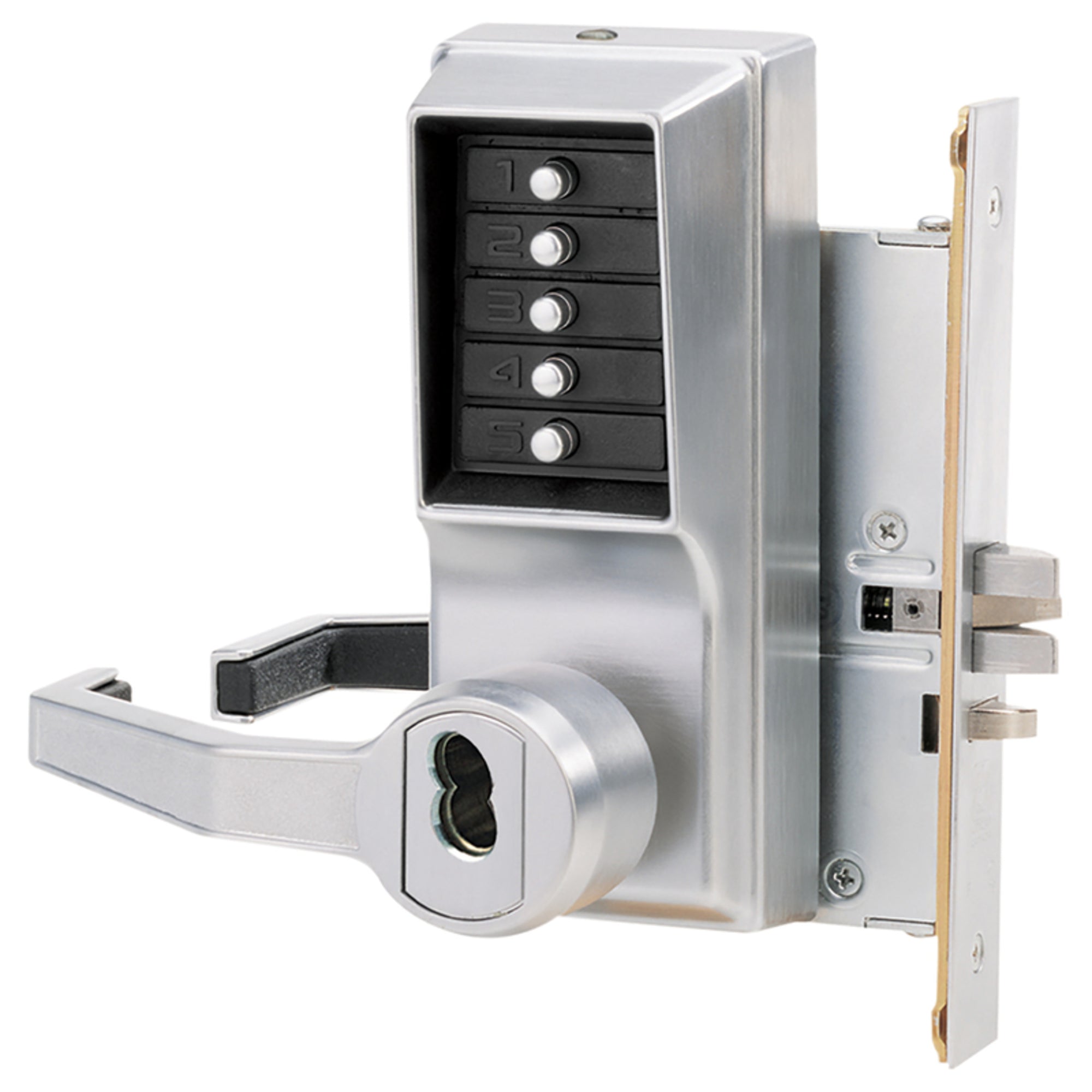

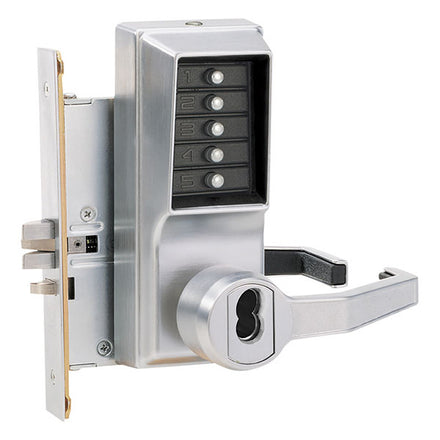

Dormakaba L8146B-26D-41 Mortise Combination Lever Lock Key Override, Lockout, 6/7-Pin SFIC Prep, Less Core

Product Description

The DORMAKABA L8146B-26D-41 is a mortise combination lever lock with key override and lockout feature. It comes with a 6/7-Pin SFIC prep and less core. Designed for exterior access via combination and free egress, this lock eliminates key and card management issues.

• Key Override
• Lockout Feature
• 6/7-Pin SFIC Prep
• Less Core
• Satin Chrome Finish

Product Highlights

This mortise combination lever lock offers key override, lockout, and is SFIC prep for enhanced security and convenience.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: L8146B-26D-41
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: DormaKaba
• Base Material: Brass or Bronze
• Finish: 626/US26D
• Finish Description: Satin Chrome
• Series Name: Simplex
• Lock Platform: Mortise Lock
• Cylinder Type: SFIC Prep Less Core
• Product Type: Pushbutton/Keypad Mortise Locks
• Finishes: US26D (626) Satin Chrome

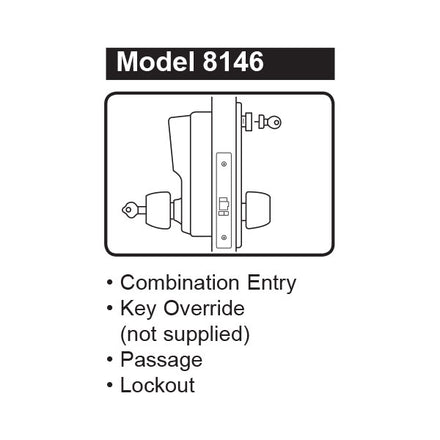

• Lock Function: Combination Entry/Passage Function with Key Override
• Key Override: Small Format Interchangeable Core (SFIC) 6 or 7Pin (Core not Included)
• Usage: Heavy Duty
• Handing: Handed
• Backset: 2-3/4"
• Latch: 3/4" two-piece anti-friction latch
• Strike: 4 frac12" L x 1 frac14" W x frac14" D Deadbolt/Latch mortise strike plate
• Fire-Rating: UL and cUL Listed up to 3 Hours
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Door Thickness: 1-3/4"
• Combinating: SFIC - Small Format Interchangeable Core
• Design Style: Lever
• Door Prep: Standard 86 Prep
• Door Type: Wood or Metal
• Environment Rating: Highly Weather Resistant
• Function: Storeroom or Passage
• Grade: Grade 1 - Heavy Duty Commercial
• Industry Finish: US26D/626 Satin Chrome
• Keyway: Less Core
• Knob/Lever: Lever
• Latch/Bolt/Backset: 2-3/4"
• Locking Device: Mortise Deadlatch
• Operation Modes: Combination Entry Key Override Passage Lockout
• Pin Access: Single Code 1 - 5 Digits (Pressed Individually or Simultaneously)
• Pinning: 6-Pin or 7-Pin - Less Core
• Series: 8100
• Standards / Ratings: ANSI 156.2 / Grade 1 / 3-Hour UL/ULC Fire Rating for "A" Label Doors, ADA Compliant
• Strike Type: ASA 4-7/8"
