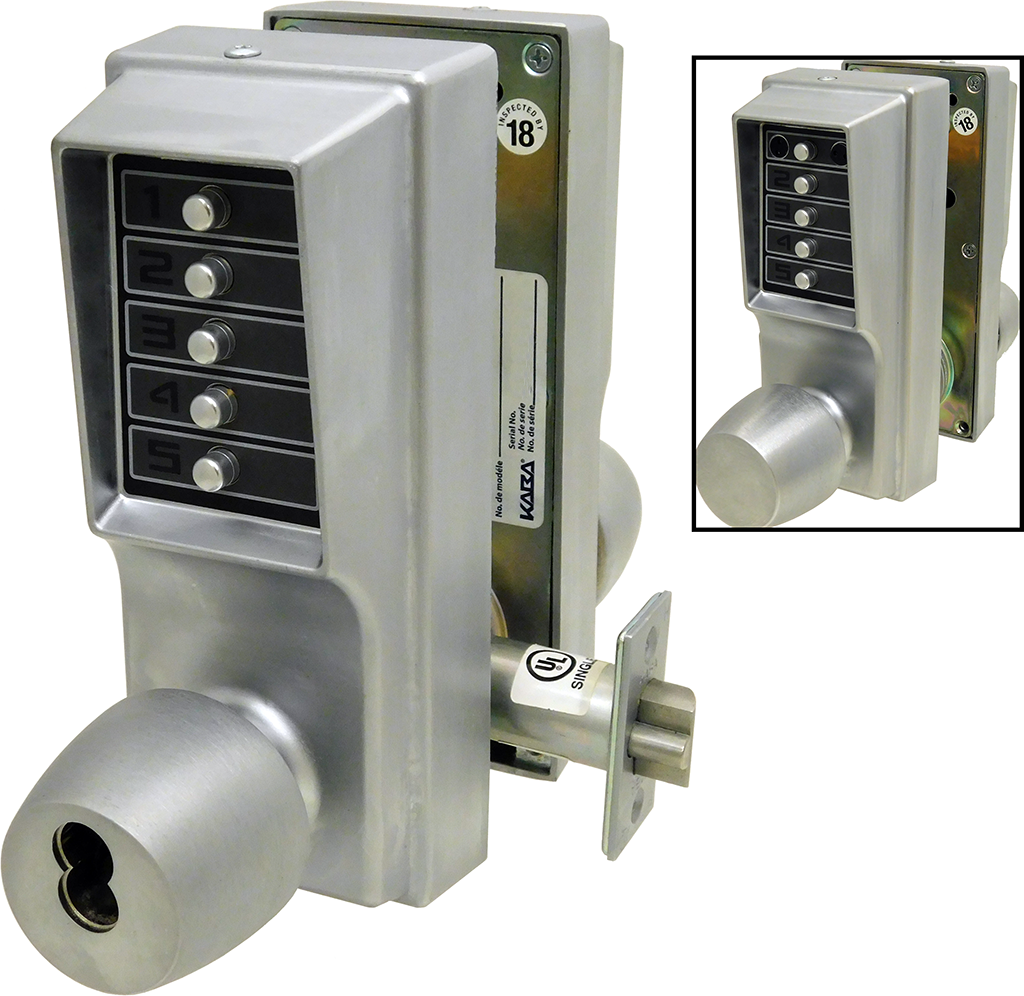

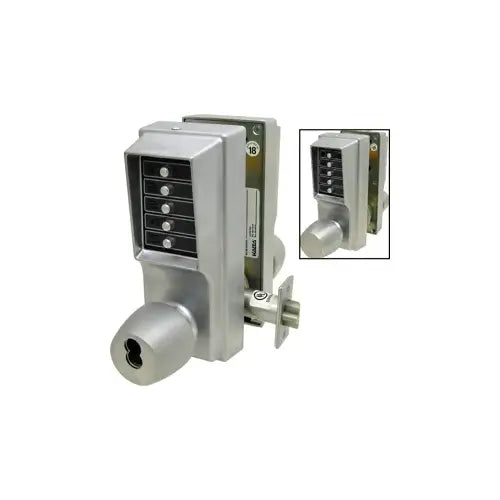

Dormakaba EE21B/11-26D-41 Double 5 Button Combo Knob Locks Less Core

Product Description

The DORMAKABA EE21B/11-26D-41 double 5 button combo knob lock provides interior and exterior access by combination. This mechanical lock eliminates battery replacements and has a single access-code programmed via the keypad without removing it from the door. It features a cylindrical latch with a 3-hour UL/ULC fire rating.

• Fully mechanical lock eliminates battery replacements
• Single access code that is easy to manage for all users
• Easily programmed via keypad without removing the lock

Product Highlights

The DORMAKABA EE21B/11-26D-41 is a cost-effective access control solution with a mechanical lock that removes the need for batteries.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: EE21B/11-26D-41

Technical Specifications

• Alternate Part Number-1: 156933
• Handing: Field Reversible, Left Hand
• Function: Entry
• Door Thickness: 1-3/4 - 2-1/4 inch
• Access Type: Mechanical, Standalone
• Lock Category: Cylindrical Lock
• Knob/Lever Style: Knob
• Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Door Handing: Factory-handed for left-hand doors; easily field reversible
• Backset: 2-3/4" (70 mm)
• Latch: 1/2" (13 mm) throw latch, 3/4" (19 mm) throw latch (optional)
• Strike: Standard strike plate; ASA strike plate
• Door Preparation: ASA 161-door preparation with additional through bore holes
• Minimum Stile Recommended: 5" (127 mm)
