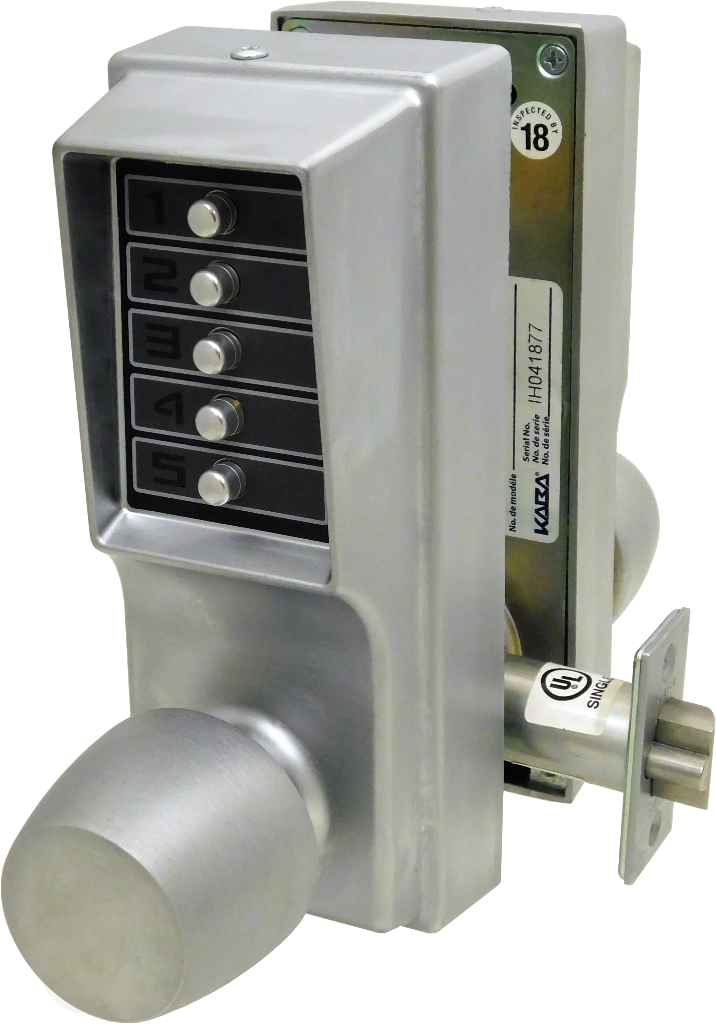

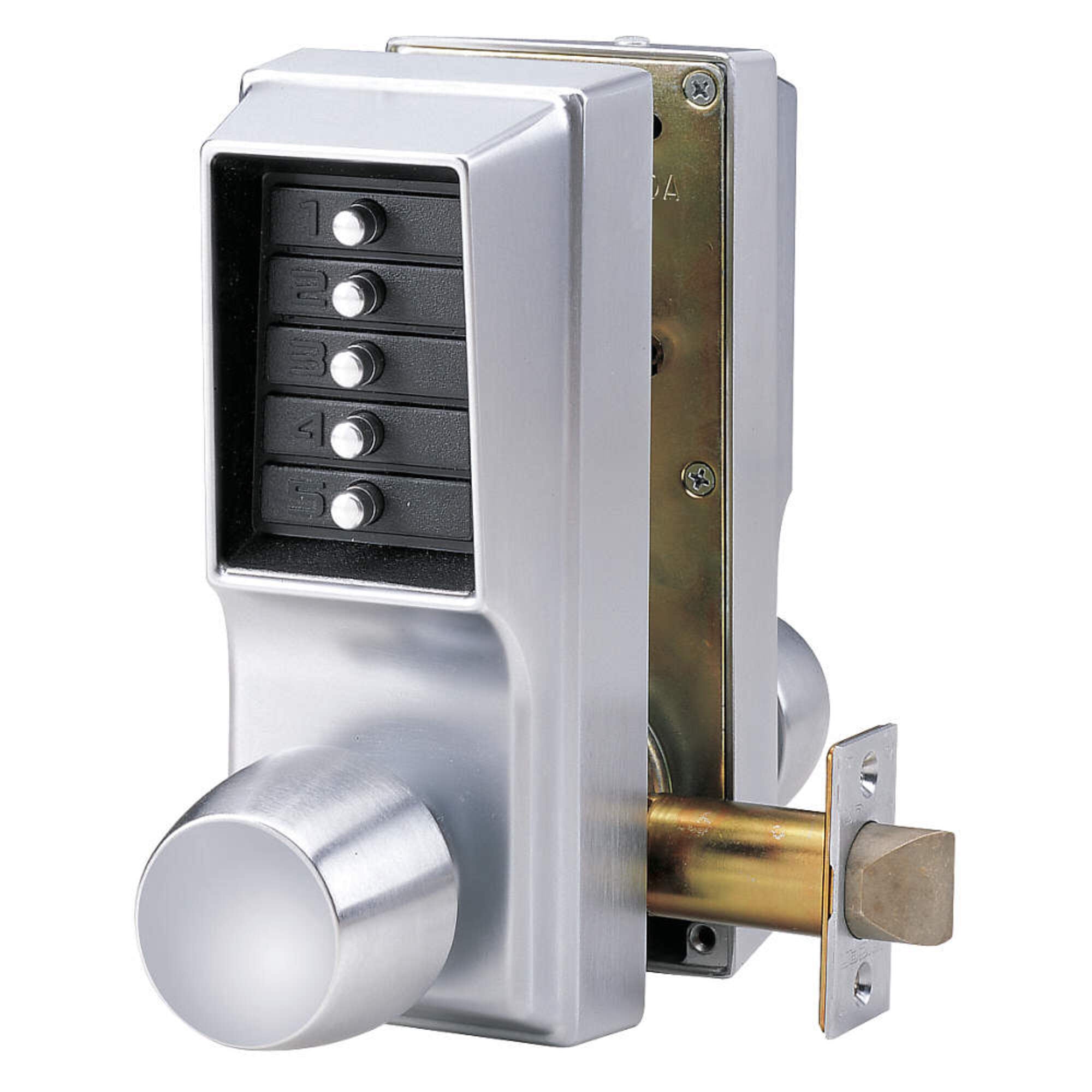

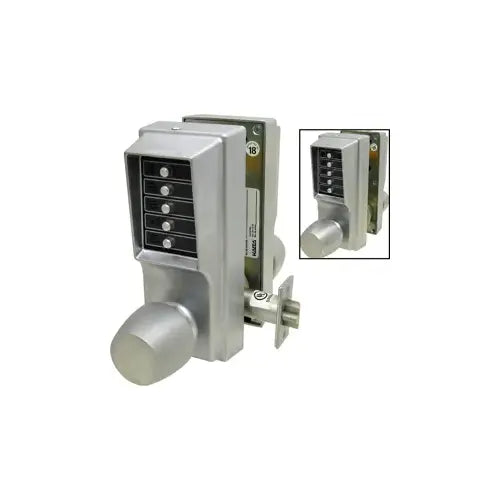

Dormakaba EE11/11-26D-41 Double 5 Button Combination, Back to Back Knob Locks, No Key Override, 2-3/4 inches Backset, 1/2 inches Throw

Product Description

The DORMAKABA EE11/11-26D-41 Simplex E1000 Series mechanical pushbutton lock eliminates the costs associated with managing keys and cards. Providing interior and exterior access by combination, this mechanical lock with knob option eliminates battery replacements. It features a single access-code and is programmed via the keypad without removing it from the door.

• Fully mechanical lock eliminates battery replacements
• Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Lock is easily programmed via keypad without removing lock from the door

Product Highlights

The DORMAKABA EE11/11-26D-41 is a cost-effective access control solution with heavy-duty construction and vandal-resistant, solid metal pushbuttons.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: EE11/11-26D-41
• Country of Origin: Mexico

Technical Specifications

• Alternate Part Number-1: 133844
• Function: Combination Entry and Egress
• Door Thickness: 1-3/4" - 2-1/4"
• Access Type: Mechanical
• Lock Category: Cylindrical Lock
• Proximity Format: Pushbutton Combination
• Knob/Lever Style: Knob
• Height: 8
• Length: 10.5
• Width: 10.5
• Brand: SIMPLEX
• Key Override Options: None
• Hand: Factory Left; Field Reversible
• Finish: Satin Chrome 26D (626)
• Backset: 2-3/4 in
• ADA Compliant: No
• Fire Rated: 3 hr
• Case Material: Zinc
• Outside Height: 7-3/8 in
• Outside Width: 3-1/8 in
• Outside Depth: 3-3/16 in
• Inside Height: 7-3/8 in
• Inside Width: 3-1/8 in
• Inside Depth: 2-3/8 in
• Latch Length: 1/2 in
• Max. User Codes: 1
• Weather Resistant: Yes
• Includes: Combination Change Tool; Lock; Manual; Required Installation Hardware; Template
• Manufacturers Warranty Length: 1 yr
• Electrical/Mechanical: Mechanical
• UNSPSC: 46171619
• Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
• Locking Device: Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset (UL listed)
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Latch: ½" (13 mm) throw latch
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Door Preparation: ASA 161-door preparation with additional through bore holes
• Accessibility Standard: Americans with Disabilities Act (ADA)
• Certification: BAA/NAFTA certified
• Warranty: 3 years manufacturer warranty
