Dormakaba E5066MWL-626-41 E-Plex 5000 Mortise Lock, Winston Lever, 100 Access Codes, 3,000 Audit Events, Medeco/Yale/ASSA/Ablo

Product Description

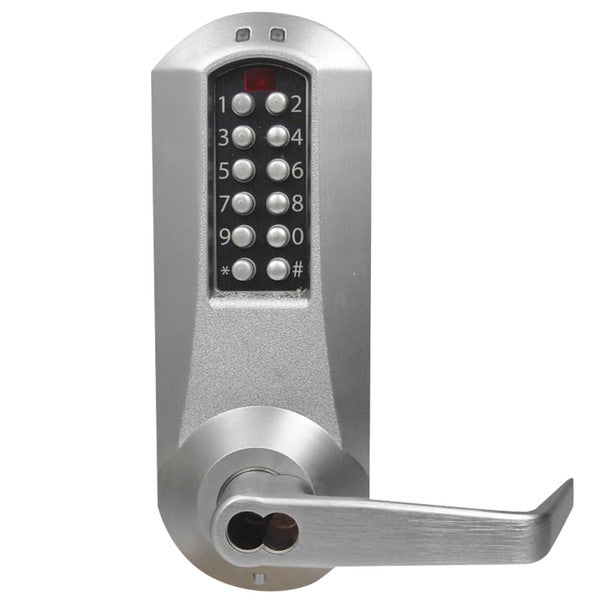

The DORMAKABA E5066MWL-626-41 is an E-Plex 5000 Mortise Lock with a Winston Lever, designed for exterior access via combination while allowing free egress. This electronic pushbutton lock eliminates the costs associated with managing keys and cards. It features 100 access codes and is programmed via keypad or optional Microsoft Excel-based software.

• Features 100 access codes and 3,000 audit events
• Offers PIN access, passage, and lockout operation modes
• Records the most recent 9,000 lock events in memory

Product Highlights

This electronic pushbutton mortise lock is ideal for commercial applications, providing keyless entry and audit trail capabilities.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: E5066MWL-626-41
• Country of Origin: Mexico

Technical Specifications

• Country of Origin (subject to change) [Specifications]: Mexico
• Construction: Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Door Handing: Non-Handed, Reversible
• Backsets: 2 1⁄8" (70 mm), 2 3⁄8" (60 mm)
• Latch: 3⁄4" (19 mm) latch, 1" (25 mm) deadbolt (optional)
• Brand: Kaba
• Product Code: E5066MWL-626-41
• Function: Mortise(ASM)
• Locking Device Option: 1¼" (32 mm) face plate no deadbolt (non-handed)
• Key Override Option: Medeco/ASSA/Yale/Abloy (5 or 6-pin length)
• Access Type: Pushbutton
• Backset Size: 2-3/4 in.
• Bluetooth Enabled: Commercial/Residential
• Commercial: Commercial
• Door Thickness: 1.75 - 2.25 in.
• Electric Strike: None
• Finish: Satin Chrome
• Handle Type: Lever
• Lock Type: Cylindrical
• Number of Batteries: 4
• Package Quantity: 1
• Power Source: Battery
• Security Grade: ANSI Grade 1
• Smart Connectivity: None
• Timed Entry Allowed: None
• Certifications & Standards: AbilityOne
• ADA Compliant: None
• ANSI Certified: None
• UL Listed: None
• BHMA Certified: None
• GSA Approved: None
• Made in the USA: None
• TAA/BAA Compliant: None
• HazMat: Hazardous
• Height: 1.130
• Length: 11.750
• Size Measure: IN
• Weight: 1.600
• Weight Measure: LB
• Width: 4.750
• MFR #: E5066MWL-626-41
• Zoro #: G209957287
• UPC #: 840067622353
• Country of Origin: Mexico
• Item: Mortise Locks with Keypad Trim
• Material: Brass or Bronze
• Series: E-Plex 5000
• Lockset type: Mortise Lock, No Deadbolt
• Lever Style: Winston Lever
• Locking Device: STD Mortise 1¼" (32 mm) face plate no deadbolt (non-handed)
• Access Control: Electronic pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys, and cards
• Number of Codes: 100 access codes per door (upgrade to 300 via software); over 100 million possible code combinations
• Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events
• Programming: Locks are programmed via keypad or with optional Microsoft® Excel®-based software—simplifies management of doors and users as facility’s number of users and access points grow
• Authority Levels: Five different levels allow who has access to specific lock functions, including: Master Level : Performs all set-up and programming functions Manager Level : Administers common programming functions Access User Level : Entry granted with valid PIN Service Level : Codes for single event or single day access, programmable in advance Maintenance Level : No access is granted, but information can be uploaded/downloaded to/from the lock
• User Parameters Code length: Adjustable to accept 4 to 8 digits
• Anti-tamper lockout: Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
• Relock time: Adjustable from 2 to 20 seconds
• Battery Operation: Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail
• Ease of Installation: LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
• Backsets Mortise: 2-3/4" (70 mm) backset
• Latch Mortise: 3⁄4" (19 mm) latch
• Key Override: Key-in-lever cylinders, small format interchangeable cores, large format removable cores
• Minimum Stile Recommended: 5" (127 mm)
• Door Preparation Mortise: ASA 86 door preparation with two additional through bore holes
• Door Thickness Mortise: 1 3⁄4" (44 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)
• Items Supplied Mortise: Lock assembly, installation manual, template, quick reference guide, operations manual, and required hardware
• Additional Items Mortise: Universal Kaba 1599 6-pin cylinder with tailpiece, four additional tailpieces, and two nickel silver keys (Supplied with Key-in-Lever Cylinder Model Only)
• Accessibility Standard: Americans with Disabilities Act (ADA)
• Durability Mortise: ANSI/BHMA A156.13, Grade 1 Certification
• Fire Rating: Three-hour UL/ULC fire door rating for "A" labeled doors
• Environmental Front Housing: -31 °F (-35 °C) to + 151 °F (66 °C)
• Rear Housing: -31 °F (-35 °C) to + 130 °F (55 °C)
• Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory
• For Use With: E-Plex 5000 Series
