Dormakaba E201UXSLL-626-41 E-Plex 2000 Exit Trim (Key-in-Lever)

Product Description

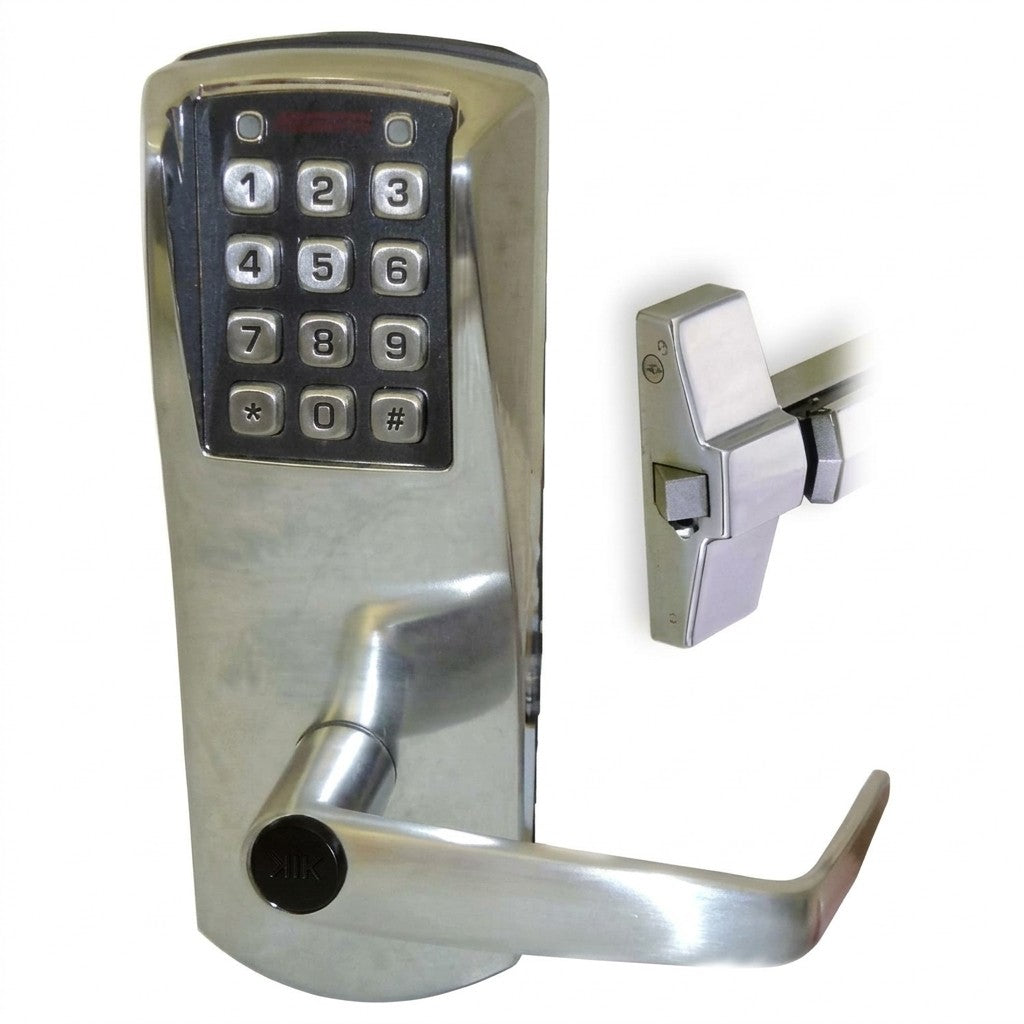

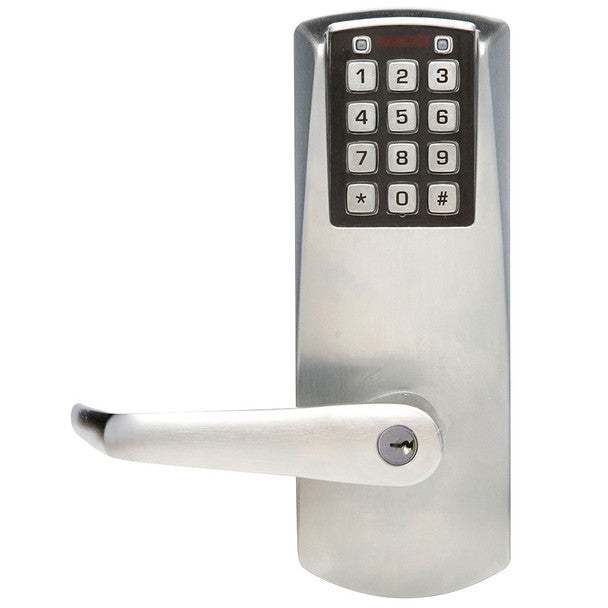

Dormakaba E201UXSLL-626-41 is an E-Plex 2000 electronic pushbutton exit trim that provides exterior access by code while allowing free egress. The unit supports up to 100 access codes, records the most recent 1,000 audit events (software required to view), and includes a Kaba 6-pin cylinder with Schlage C keyway. It is ANSI/BHMA Grade 1, ADA compliant, non-handed, and approved for indoor/outdoor use.

• Supports up to 100 access codes and adjustable 4 to 8 digit code length; stores most recent 1,000 audit events (software required to view).
• Includes Kaba 6-pin Key-in-Lever cylinder (Schlage C keyway); non-handed Grade 1 construction with ADA lever.
• Compatible with rim, mortise, and surface vertical rod (SVR) devices; pre-assembled for 1 3/4 in (44 mm) to 2 1/8 in (54 mm) doors; minimum stile 5 in.

Product Highlights

Electronic pushbutton exit trim; 100-code capacity; 1,000-event audit; Kaba key-in-lever; ANSI/BHMA Grade 1; indoor/outdoor approved.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: E201UXSLL-626-41
• Country of Origin: United States

Technical Specifications

• Brand: DormaKaba
• Manufacturer Part Number: E201UXSLL-626-41
• Model: E201U / E201UXSLL (E-Plex 2000)
• Series: E-Plex 2000
• Product Type: Electronic pushbutton exit trim / panic device trim
• Function: Exterior keypad access with free egress interior
• Key Override: Kaba 6-pin cylinder, Schlage C keyway (cylinder included)
• Access Codes: Up to 100 codes (4 to 8 digits)
• Audit Events: Stores most recent 1,000 events (software required to view)
• Operation Modes: PIN access, Passage, Lockout (programmable)
• Authority Levels: Multiple levels (Master/Manager/User/Service as applicable)
• Battery Type: 3 AA alkaline batteries (exterior housing)
• Battery Life: Up to 100,000 cycles (battery dependent)
• Certifications: ANSI/BHMA Grade 1
• Fire Rating: UL 10C fire rated
• Accessibility: ADA compliant
• Environmental Rating: Approved for indoor/outdoor use; wide temperature range
• Compatibility: Compatible with rim, mortise and surface vertical rod (SVR) devices (exit device not included); some adapters/kits may be required
• Compatible Devices Examples: Detex Rim F1001, Detex SVR 20/F20, Dorma Rim F9300, Von Duprin Rim 89/99 and SVR 9827/9927, Precision Rim 21/FL21 and SVR 22/FL22, Arrow Rim 3800, Sargent Rim 8800 (certain kits required)
• Handing: Non-handed / field reversible
• Minimum Stile: 5 in (127 mm)
• Door Thickness: Pre-assembled for 1 3/4 in (44 mm) to 2 1/8 in (54 mm); accommodates up to 2 1/4 in (57 mm)
• Numeric Keypad: Vandal-resistant solid metal pushbuttons
• Construction: Heavy-duty commercial Grade 1; solid cast exterior housing and levers
• Programming: Programmed via keypad or optional Eplex/Microsoft Excel-based software
• Door Prep / Installation: Through-bolt holes; installs on wood or metal doors; no wiring to or through the door
• Dimensions (Exterior): 8 15/16 in (H) x 3 5/16 in (W) x 2 13/16 in (D)
• Minimum/Maximum Code Attempts: Adjustable anti-tamper lockout (adjustable invalid attempt count and lockout period)
• Re-lock Time: Adjustable (2 to 20 seconds as applicable)
• Items Supplied: Includes universal Kaba cylinder with two keys for key-in-lever models (where applicable)
• Country of Origin: United States
• Notes: Exit device not included; some applications may require accessory kit 062-514-148 or M-Unit kit for audit retrieval
