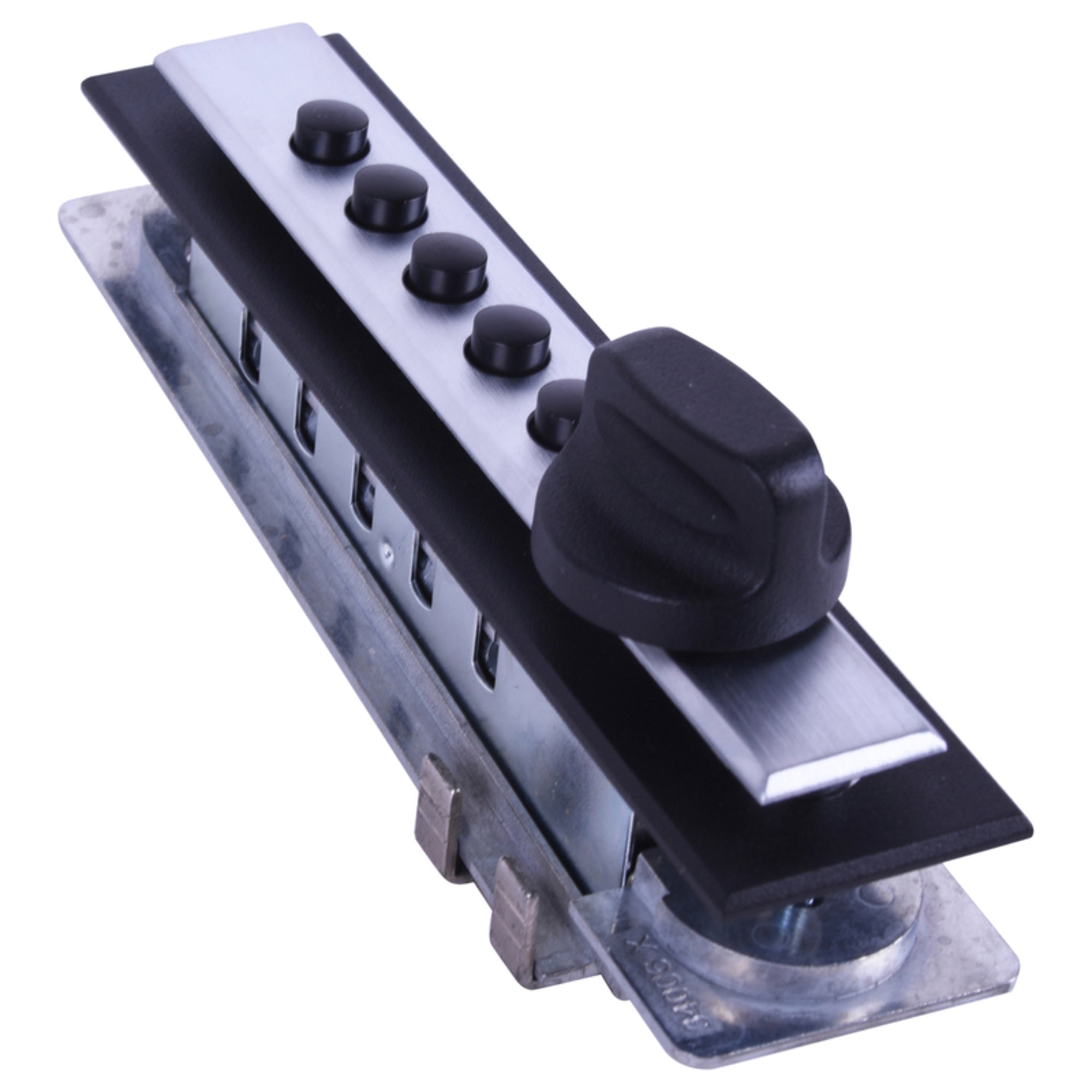

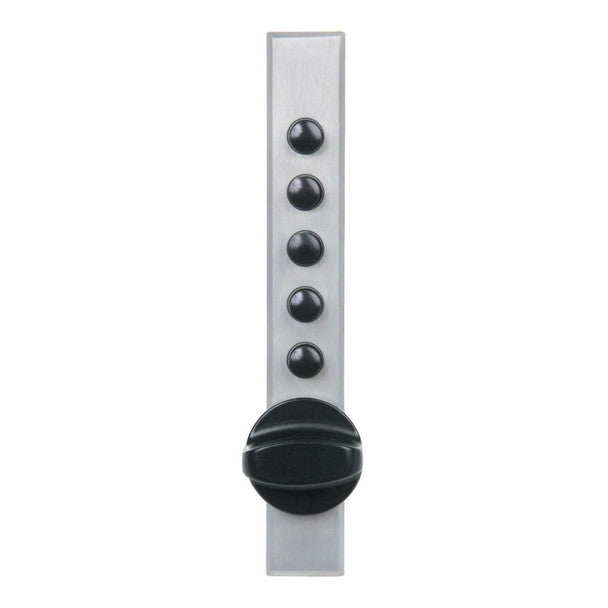

Dormakaba C9602-26D-41 Simplex Cabinet Lock 5/8-7/8in Wood Door/End Throw

Product Description

The DORMAKABA C9602-26D-41 Simplex is a cabinet lock designed for cabinet doors, desk drawers, and similar applications. It is ANSI Grade 1 certified and features a mechanical pushbutton for access control, eliminating the need for batteries. Ideal for medicine chests, liquor cabinets, and tool chests.

• Certified to ANSI Grade 1
• Simple to install, use and maintain
• Thousands of possible codes combinations

Product Highlights

Mechanical pushbutton lock eliminates the material and labor expense of battery replacements. Cost effective access control solution.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: C9602-26D-41

Technical Specifications

• Brand: Dormakaba Mechanical
• SKU: C9602-26D-41
• Condition: New
• Product Code: C9602-26D-41
• Construction: All metal cast face plate; force-resistant, protected exterior knob
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Non-handed
• Finishes: Satin Chrome 26D (626); black trim plate (optional)
• Bolt: End-throw/cross-throw deadbolt (must be manually relocked)
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Operation Mode: Pushbutton access
• Door Thickness: Wood doors: 5/8" (16 mm) to 7/8" (22 mm), Sheet metal applications: 14 to 20 gauge 1\u20443", 1\u204416", 1\u20444"
• Installation: Horizontal or vertical. Two-step mortise installation using router or 5\u00bd" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications). Punched slot or series of 7\u204416" (11 mm) drilled holes (for metal applications).
• Series Name: Simplex
• Lock Platform: Cabinet Lock
• Product Type: Cabinet Locks
