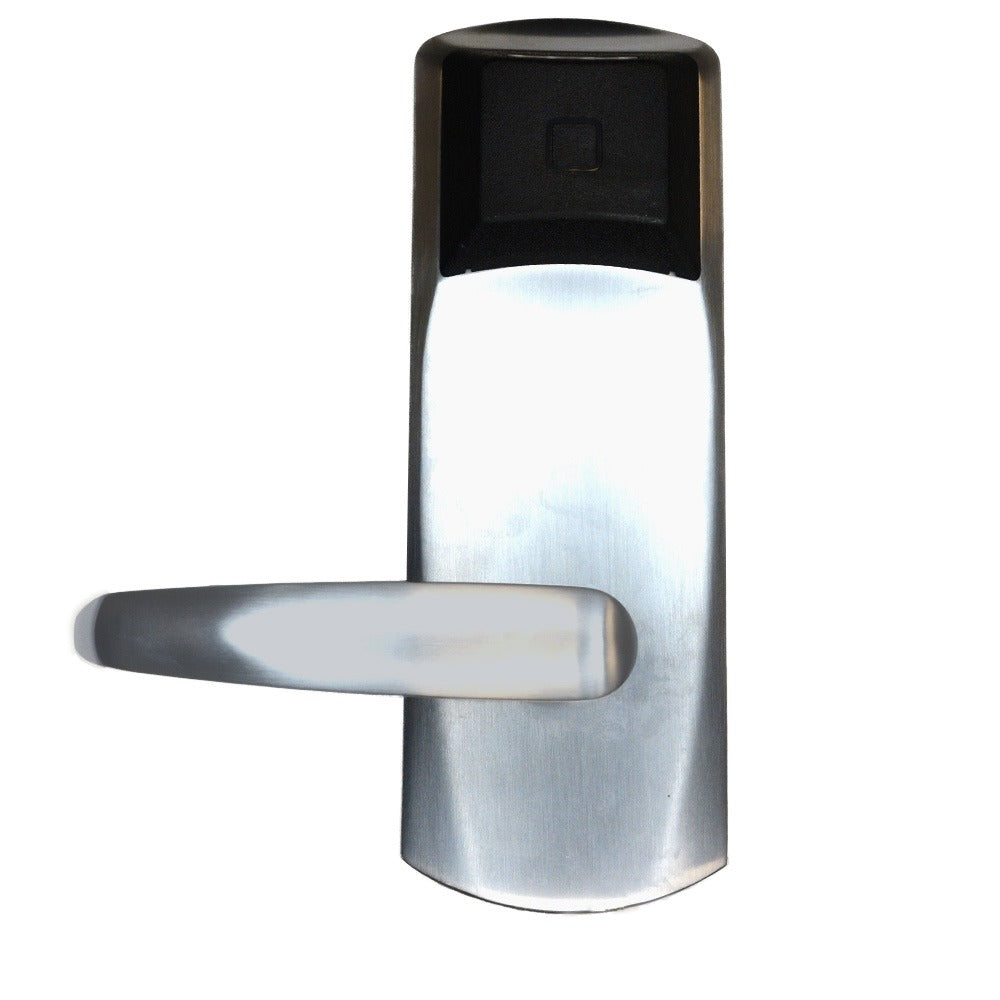

Dormakaba 79PS11221EL32626 Rfid Mortise Lockset Ble Elo

Product Description

The DORMAKABA MULTI-HOUSING 79PS11221EL32626 is a standalone utility RFID mortise lockset designed for exterior access control applications in multi-housing and commercial environments. This lockset features no deadbolt configuration and ships with a 1-1/4 inch ASM (Adjustable Strike Mortise) for flexible door prep compatibility. It integrates Bluetooth Low Energy (BLE) wireless communication and Electronic Lockout Override (ELO) functionality, allowing credential-based access management without a hardwired network connection. The long lever handle and toggle cylinder trim complete the hardware package. The 626 Satin Chrome finish provides corrosion resistance suited to exterior installations. Licensed locksmiths and access control technicians are the primary installers.

This lockset is intended for exterior door applications where weather resistance is required. The RT Plus platform supports standalone RFID credential management, making it well suited for apartment entry doors, utility rooms, laundry facilities, amenity spaces, and similar multi-housing access points. The unit is reversible, accommodating Left Hand or Right Hand Reverse handing configurations without additional parts, which simplifies inventory for property maintenance teams and access control contractors working across mixed door orientations.

Key Features

• Standalone RFID mortise lockset — no network connection required for credential-based access
• Bluetooth Low Energy (BLE) enables wireless programming and audit trail retrieval via compatible mobile device
• Electronic Lockout Override (ELO) allows remote or manual lockout without mechanical key override
• 1-1/4 inch ASM accommodates standard mortise door prep on exterior doors
• Reversible handing — Left Hand or Right Hand Reverse without additional hardware
• Weather resistant construction rated for exterior use
• 626 Satin Chrome finish for corrosion resistance and neutral aesthetic compatibility

Compatibility

Designed as an OEM-style standalone RFID mortise lockset for exterior multi-housing doors requiring RT Plus platform credential management with BLE connectivity.

Installation Notes

Installation should be performed by a licensed locksmith or qualified access control technician familiar with mortise lockset preparation and low-voltage electronic hardware. Power down or remove batteries from the lockset before making wiring connections to the ELO circuit. Verify door handing before installation and confirm the mortise pocket dimensions match the 1-1/4 inch ASM specification. Follow all applicable local building codes and manufacturer programming instructions before commissioning the credential system.
