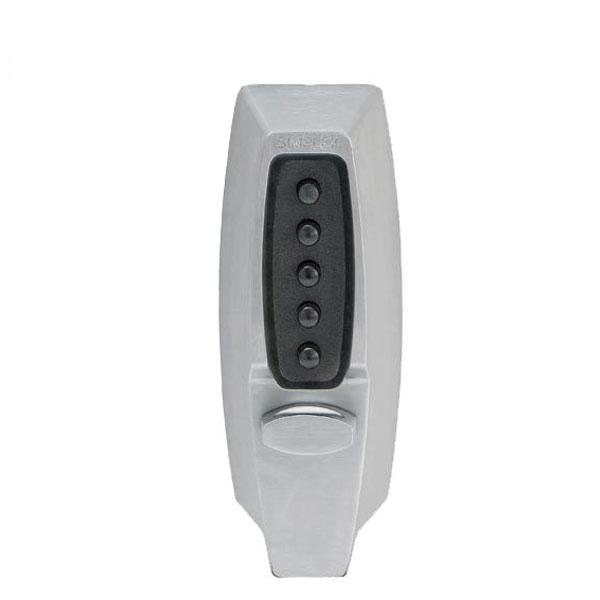

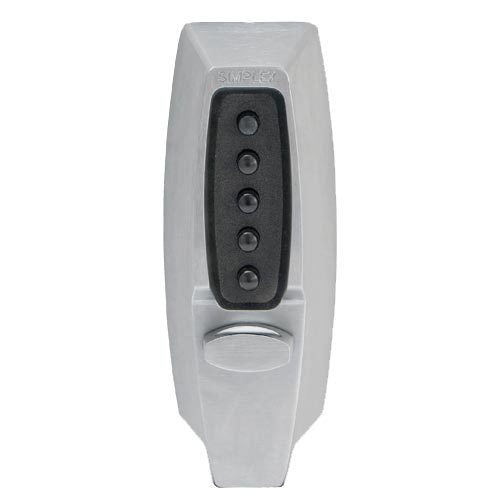

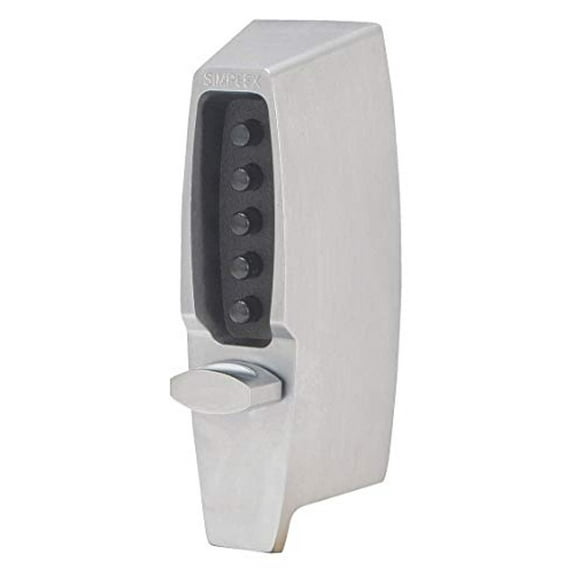

Dormakaba 7104-26D-41 Simplex Mechanical Pushbutton Deadlocking Latch 2 3/8 inches Backset

Product Description

The DORMAKABA 7104-26D-41 Simplex 7104 Mechanical pushbutton Deadlocking Latch eliminates the need for keys or cards. It provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. The deadlocking latch relocks automatically when the door closes.

• Fully mechanical lock eliminates battery replacements.
• Deadlocking Latch relocks automatically when door closes.
• Lock is easily programmed via keypad without removing lock from the door.

Product Highlights

This mechanical pushbutton deadlocking latch offers keyless access control with a single access code for all users. It features vandal-resistant, solid metal pushbuttons and field-reversible handing.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 7104-26D-41
• Country of Origin: Mexico

Technical Specifications

• Construction: All metal cast front housing; force-resistant, clutch-protected exterior thumbturn
• Locking Device: " (13 mm) Deadlocking Latch, flat front face plate Adjustable 2 " (60 mm) to 2 " (70 mm) backset
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Field reversible
• Finish: Satin Chrome 26D (626)
• Backset: Adjustable 2 " (60 mm) to 2 " (70 mm) backset
• Latch: " (13 mm) deadlocking latch
• Minimum Stile Recommended: 4 (102 mm)
• Strike: Curved lip strike plate
• Door Preparation: 1 " (35 mm) diameter through bore 1" (25 mm) diameter cross bore " (19 mm) through bore 2 x " through bores
• Door Thickness: 1 " (35 mm) to 2 " (57 mm), wood or metal
• Durability: Weather resistant
• Certification: BAA/NAFTA Certified
• Door latch & bolt type: Dead Bolt
• Material: Metal
• Backset size: 2 in
