Dormakaba 5067BWL-26D-41 Mortise Combination Lever Lock Deadbolt and Lockout 6/7-Pin SFIC Prep Less Core

Product Description

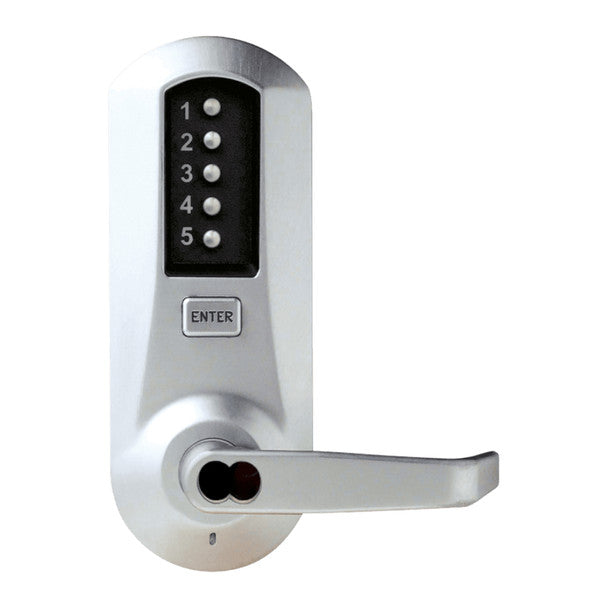

The DORMAKABA 5067BWL-26D-41 is a mechanical pushbutton lock providing combination-based access control without batteries or wiring. It is built for commercial applications where reliability matters. The Simplex 5000 Series provides exterior access by combination, while allowing free egress.

• Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
• Fully mechanical lock eliminates the material and labor expense of battery replacements
• Single access code—one easy-to-manage code for all users

Product Highlights

This mortise combination lever lock features a deadbolt and lockout, and is prepped for a 6/7-Pin SFIC. It is ADA compliant and has a 3-hour UL/ULC fire rating.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 5067BWL-26D-41
• Country of Origin: Mexico

Technical Specifications

• Country of Origin (subject to change): Mexico
• Lock Platform: Mortise Lock
• Cylinder Type: SFIC Prep Less Core
• Model: 5067BWL-26D-41
• Series: Simplex 5000 Series
• Function: Mortise Lock with Key Override
• Finish: Satin Chrome (US26D/626)
• Grade: ANSI/BHMA Grade 1

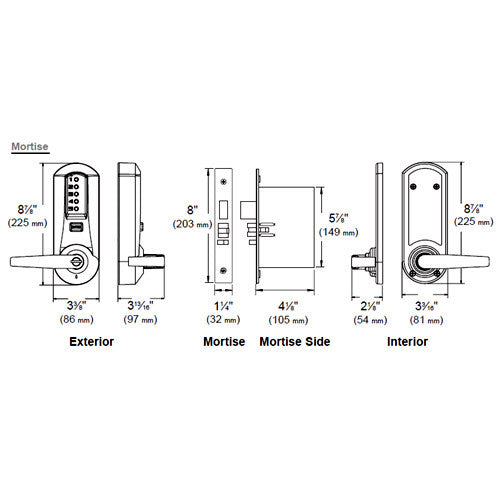

• Backset: 2-3/4 in. (mortise)
• Latch Throw: Mortise with deadbolt
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Handing: Non-handed (field reversible)
• Fire Rating: 3-hour UL/ULC
• Key Override: Best SFIC (core not included)
• Base Material: Brass or Bronze
• Finish Description: Satin Chrome
