Dormakaba 5041xswl-26d-41 Cylindrical Lever Lock

Product Description

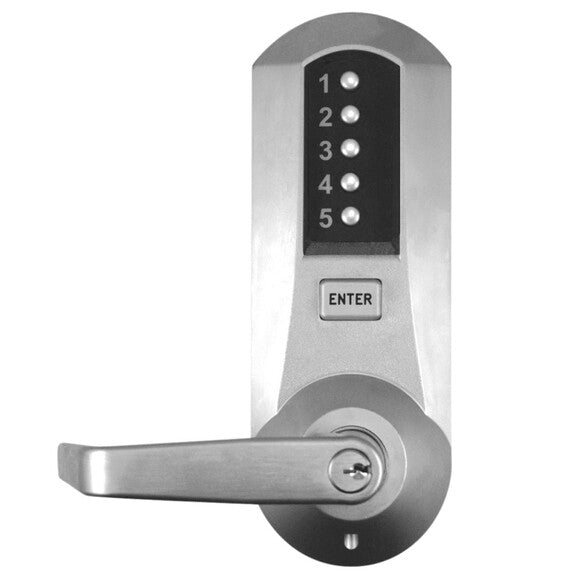

The DORMAKABA 5041xswl-26d-41 is a Grade 1 cylindrical combination lever lock designed for commercial door hardware applications. It features a keypad trim integrated with a conventional cylinder, offering both keyless and keyed entry in a single unit. The passage function allows free egress at all times. Built on the Simplex series platform, this lock uses a 6-pin conventional cylinder with a Schlage C keyway, a 2-3/4 inch backset, and a 1/2 inch throw latch. The satin chrome finish provides a clean, professional appearance suited to commercial interiors. Licensed locksmiths, commercial door hardware installers, and general contractors handle this type of hardware on new construction and retrofit projects.

This lock is intended for commercial interior door applications where controlled access combined with passage function is required. The combination lever format allows facility managers to program keypad codes while retaining conventional keyed override through the Schlage C keyway. The Grade 1 rating makes it appropriate for high-traffic commercial environments such as offices, healthcare facilities, and institutional buildings. The brass or bronze base material contributes to the durability expected in commercial-grade door hardware.

Key Features

• Grade 1 commercial-rated cylindrical lock for high-traffic applications
• Simplex series keypad trim with conventional cylinder override
• 6-pin conventional cylinder with Schlage C keyway compatibility
• 2-3/4 inch backset fits standard commercial door prep
• 1/2 inch throw latch for positive door engagement
• Satin chrome finish over brass or bronze base material

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical lock for commercial doors prepped to accept cylindrical lock hardware with a 2-3/4 inch backset. Keying is compatible with Schlage C keyway systems.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with cylindrical lock installation procedures. Verify door prep dimensions, backset measurement, and door thickness before installation to ensure proper fit. Disengage all power to any associated access control wiring before connecting electronic components. Follow local building codes and the manufacturer instructions for keypad programming and cylinder keying procedures.

Technical Specifications

• Grade: Grade 1
• Lock Platform: Cylindrical Lock
• Series: Simplex
• Function: Passage
• Cylinder Type: Conventional Cylinder
• Number of Pins: 6
• Keyway: Schlage C
• Backset: 2-3/4 inches
• Throw Latch: 1/2 inch
• Base Material: Brass or Bronze
• Finish: Satin Chrome
• Installation Type: Commercial

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 5041xswl-26d-41
