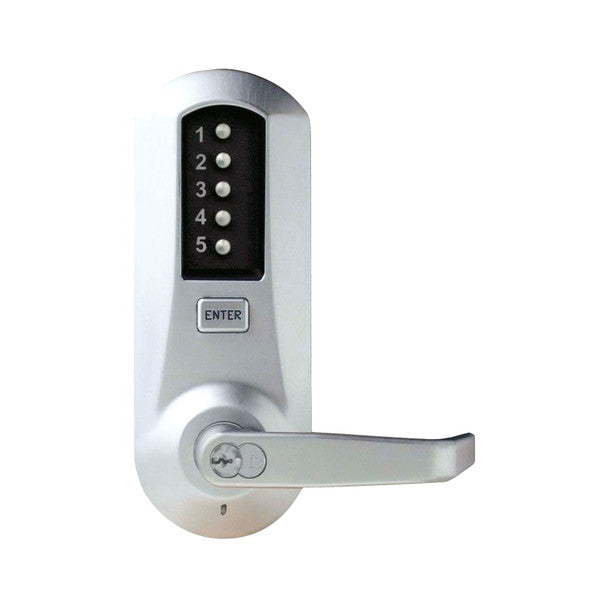

Dormakaba 5041BWL-26D-41 Simplex Pushbutton Lever Lock with Best Core Override

Product Description

The Dormakaba 5041BWL-26D-41 is a mechanical pushbutton lock that offers combination-based access control without the need for batteries or wiring. Designed for commercial applications, it ensures reliability and eliminates the need for keys or cards. Combinations can be changed in seconds without removing the lock.

• All-mechanical operation - no batteries to replace, no wiring required
• Single access combination with thousands of possible codes
• Combination changed at the keypad without removing lock from door

Product Highlights

This vandal-resistant, weather-resistant lock features an ADA-compliant lever design and a 3-hour UL/ULC fire rating. It is prepped for Best SFIC key override (core sold separately) and has a passage mode with interior thumbturn.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 5041BWL-26D-41
• Country of Origin: United States

Technical Specifications

• Model: 5041BWL-26D-41
• Series: Simplex 5000 Series
• Function: Combination Entry with Key Override and Passage Mode
• Finish: Satin Chrome (US26D/626)
• Grade: ANSI/BHMA Grade 1

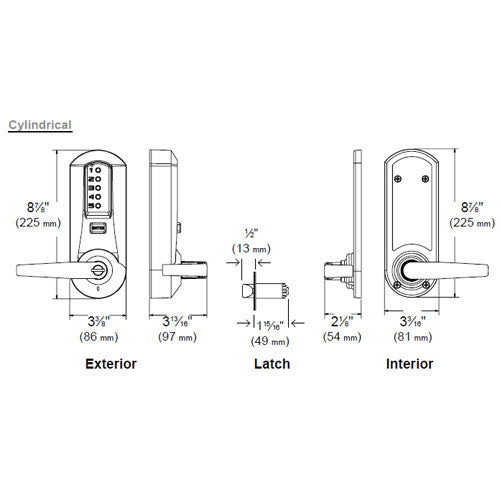

• Backset: 2-3/4 in. (70mm)
• Latch Throw: 1/2 in. (13mm)
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Handing: Non-handed (field reversible)
• Fire Rating: 3-hour UL/ULC

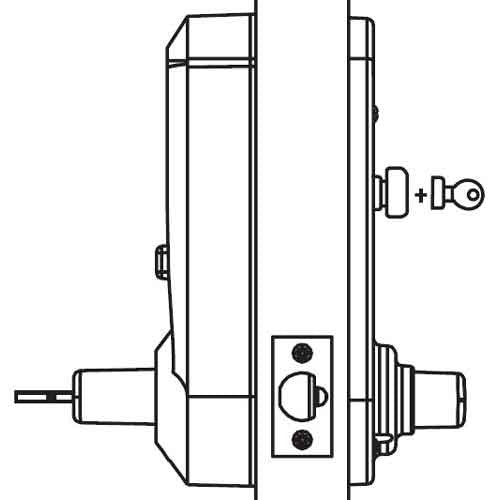

• Key Override: Best SFIC (core not included)
• Product Type: Cylindrical Lock
• Trim: Lever
• Mount Type: Cylindrical
• Brand: dormakaba
• MPN: 5041BWL-26D-41
• Country of Origin: United States
• Access Function: Passage
• Lever: Winston
• Door Type: Wood or Metal Doors
• Cylindrical throw latch: 1/2 inch (13 mm) throw latch
