Dormakaba 5031BWL-26D-41 Simplex 5000 Series Cylindrical Combination Lever Lock Less Core REPLACEMENT MPN

Product Description

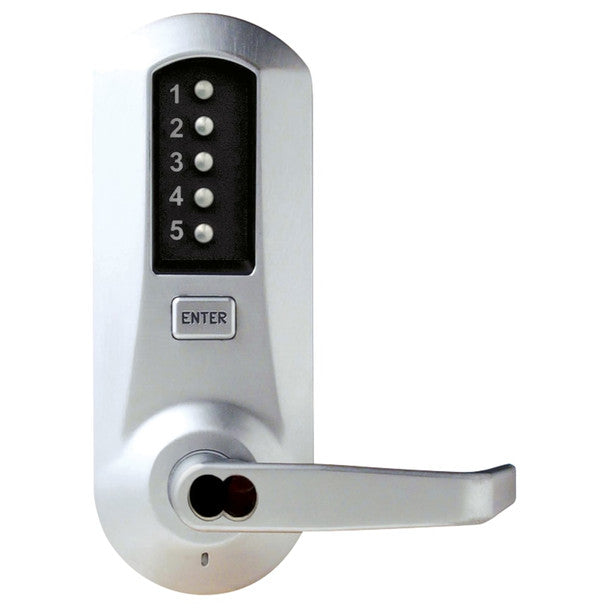

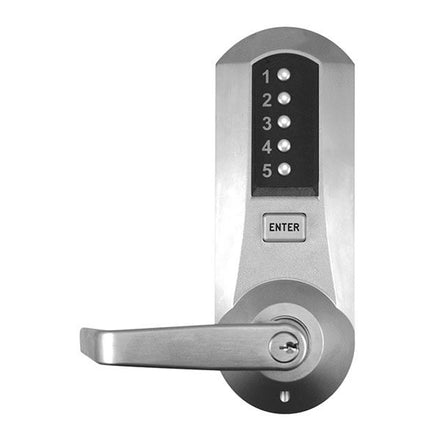

The DORMAKABA 5031BWL-26D-41 Simplex 5000 Series cylindrical combination lever lock provides exterior access by combination and allows free egress. This mechanical pushbutton lock eliminates the costs of managing keys and the expense of battery replacements. It features a single access code that is easily programmed via the keypad without removing the lock.

• Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
• Fully mechanical lock eliminates the material and labor expense of battery replacements
• Single access code—one easy-to-manage code for all users

Product Highlights

The Simplex 5000 Series offers unparalleled strength, convenience, and flexibility. Designed for easy installation, its non-handed design fits both left and right hand doors.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 5031BWL-26D-41

Technical Specifications

• Product Type: Cylindrical Locks with Keypad Trim
• Cylinder Type: SFIC Prep Less Core
• Grade: Grade 1
• Backset: 2-3/4"
• Function: Cylindrical Lock

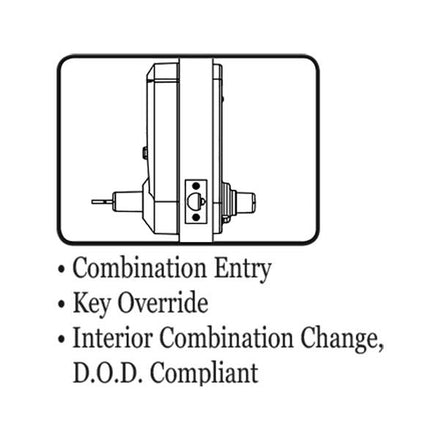

• Operation Modes: Combination Entry and Key Override
• Interior Combination Change: D.O.D. (Required by Department of Defense)
• Finish: Satin Chrome 26D
• Key Override Options: Best & Equivalent SFIC (6 or 7 Pin) Less Core
• Cylindrical Latch: 1/2 inch faceplate and 2-3/4 inch backset.
• Latch: 1⁄2 (13 mm) throw latch, floating face plate.
• Number combinations: Thousands of possible combinations.
• Code changing: Accomplish with the lever release combination change tool from the lock interior.
• Emergency access: Mechanical key override.
• Fire rating: Three-hour UL/ ULC Fire rating for A label doors.
• Finish (housings): Black 676
• Finish (levers and accents): Satin Chrome 26D (626)
• Handing: Completely Reversible
• Accessibility Standard: Americans with Disabilities Act (ADA)
• D.O.D. Compliant: 5220.22M for supplemental access control
• Weather resistant: Wear tested for extensive use in indoor and outdoor applications
• Brand: Dormakaba
• Lock Function: Combination Entry Function with Key Override
• Usage: Heavy Duty
• Strike: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
• Fire-Rating: UL and cUL Listed – up to 3 Hours
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Door Thickness: 1-3/4"
• Warranty: 3 Year Limited
• Throw Latch: 1/2
• SFIC Prep: 6/7-Pin
• Core: Less Core
