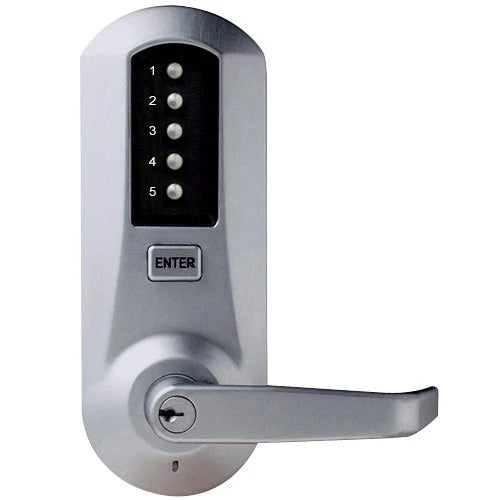

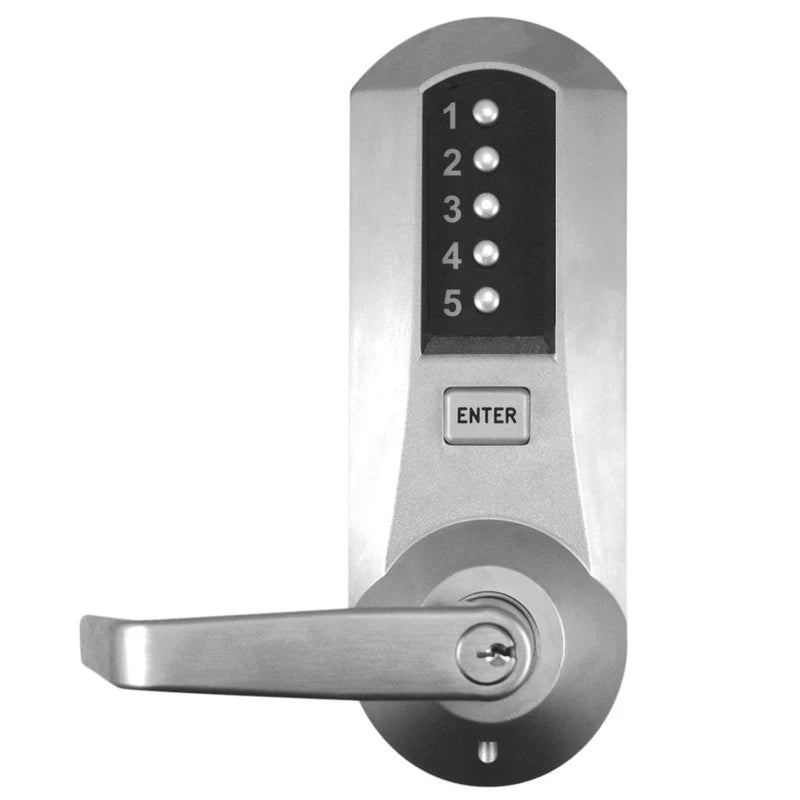

Dormakaba 5021XSWL-26D-41 Simplex Pushbutton Cyl. Lock w/ Lever Combination Entry-KIL Kaba/Schlage C-Exterior Combination Change

Product Description

The DORMAKABA 5021XSWL-26D-41 Simplex 5000 Series provides exterior access by combination, while allowing free egress. The numeric keypad is vandal resistant with solid metal pushbuttons. This fully mechanical lock eliminates the material and labor expense of battery replacements. The lock is easily programmed via keypad without removing the lock from the door.

• Numeric Keypad is Vandal resistant with solid metal pushbuttons
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Easy-to-manage single access code for all users

Product Highlights

The DORMAKABA Simplex lock provides exterior access by combination and allows free egress. It is a fully mechanical lock that eliminates the need for batteries and is easily programmed via the keypad.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 5021XSWL-26D-41

Technical Specifications

• Operation Mode: Single Access Code
• Door Thickness: 1-3/4"
• Minimum Stile Recommended: 5 in.
• Handing: Non-handed. Pre-assembled for left-hand door installations. Easily changed in the field.
• Accessibility Standard: Americans with Disabilities Act (ADA)
• D.O.D. Compliance: 5220.22M for supplemental access control
• Fire Rating: 3-hour UL/ULC fire rating for A-label doors and installed with an existing fire-rated exit device (where applicable)
• Backset: 2-3/4"
• Latch Throw: 1/2"
• Keyway: Schlage C
• Finish: Satin Chrome
• Grade: 1
• Type: Cylindrical Combination Lever Lock
• Access Control: Mechanical pushbutton lock —eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
• No Battery: Fully mechanical lock —eliminates the material and labor expense of battery replacements
• Number of Codes: Single access code —one easy-to-manage code for all users
• Programming: Lock is programmed via keypad without removing the lock from the door
• Key Override: 5021XS: KIL, Schlage C Keyway, 5021C: Prepped for Corbin Russwin 6-Pin LFIC, 5021M: Prepped for Medeco/Yale/ASSA/Abloy LFIC, 5021R: Prepped for Sargent LFIC, 5021S: Prepped for Schlage FSIC, 5021B: Prepped for 6 or 7-pin SFIC
• Brand: Dormakaba
• Finishes: US26D (626) Satin Chrome

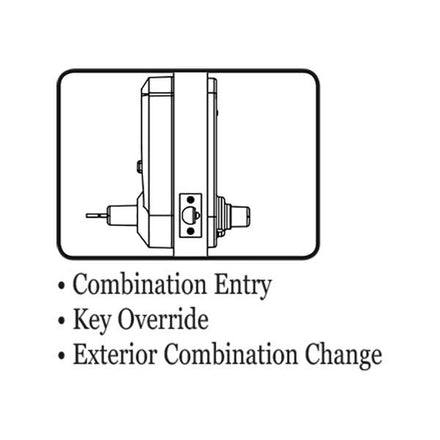

• Lock Function: Combination Entry Function with Key Override
• Usage: Heavy Duty
• Latch: 1/2" throw - 1-1/8" x 2-1/4" face
• Strike: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
• Fire-Rating: UL and cUL Listed – up to 3 Hours
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Warranty: 3 Year Limited
• Pushbuttons: 5 numeric pushbuttons constructed with anodized aluminum and are vandal resistant
• Combination code: One code per lock: one to five numbers pressed individually or simultaneously
• Weather resistance: The lock is weather resistant
• Tailpiece Compatibility: Abloy 5277, Kaba Gemini 4730, Abloy 5477 Kaba Peaks 1099, Arrow C100, Marks, ASSA 65611, Medeco 20W200H1, ASSA 65691, Sargent 10 Line, Corbin Russwin 2000-03, Schlage 23-001, Kaba 1539, Schlage Primus 20-760 and Kaba 1599 key in lever cylinders.
