Product Description

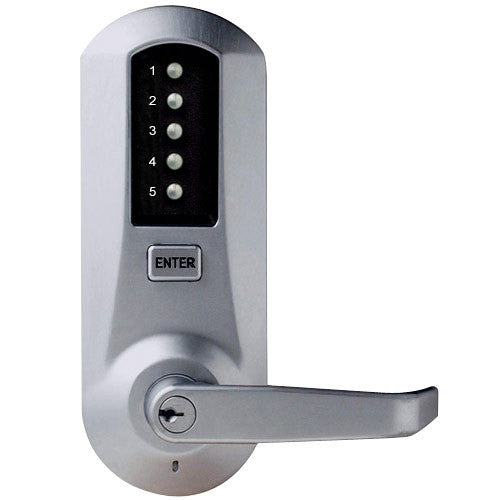

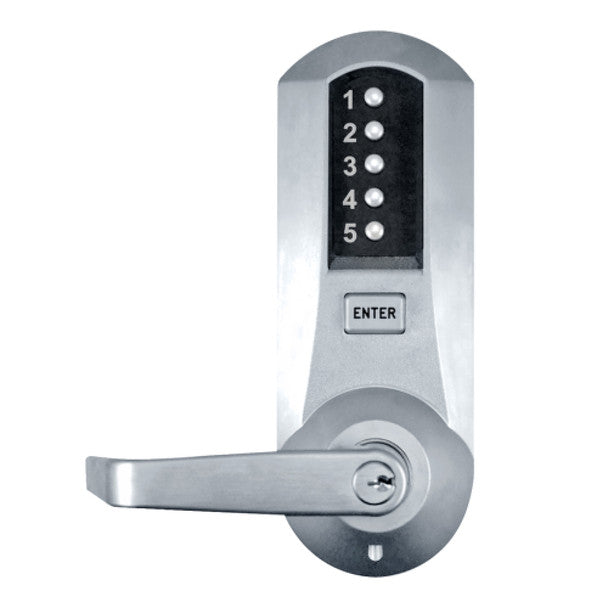

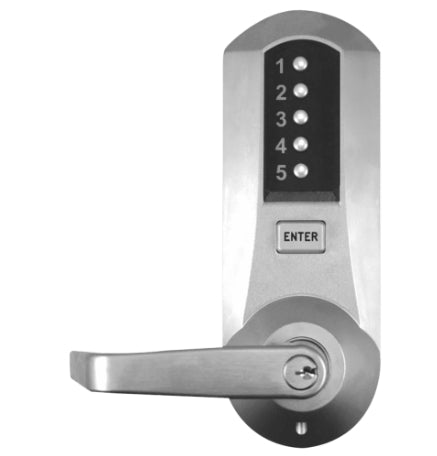

The DORMAKABA 5021XKWL-26D-41 Kaba Pushbutton Lock is a Simplex 5000 series pushbutton cylindrical lever lock with Kaba Key in Lever Override (Kaba 90 keyway included). This Simplex mechanical pushbutton lock controls access between public and private areas. It is a stand-alone programmable pushbutton lock and is non-handed.
- Mechanical Pushbutton Lock with single access code
- Cylindrical & Exit Trim- Lever/Knob ANSI/BHMA Grade 1 Certified
- Lock is easily programmed via keypad without removing lock from the door
Product Highlights
This heavy-duty mechanical pushbutton lock provides keyless entry and exterior access by combination, while allowing free egress. It eliminates the costs associated with keys and cards, and is ADA compliant.
Product Information
Standard Information
-
Brand: DORMAKABA
-
Manufacturer Part Number: 5021XKWL-26D-41
Technical Specifications
-
Function: Cylindrical Lock
-

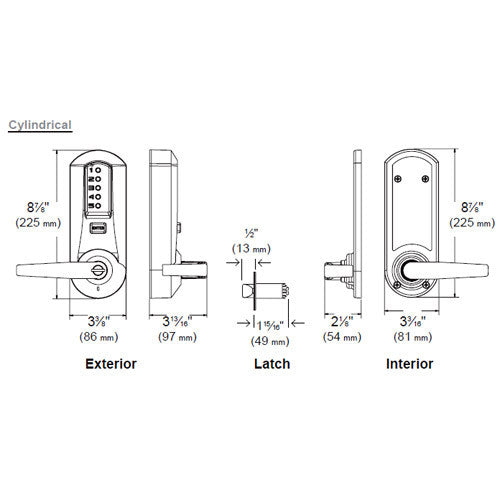

Backset: 2-3/4"
-
Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
-
Key Override: Kaba Key in Lever Override (Kaba 90 keyway included)
-
Series: Simplex 5000 Series
-
Finish: Satin Chrome (US26D/626)
-
Grade: ANSI/BHMA Grade 1
-
Latch Throw: 1/2 in. (13mm)
-
Door Thickness: 1-3/4"
-
Fire Rating: 3-hour UL/ULC
-
Installation Notes: Standard cylindrical prep - 2-1/8 in. cross bore, 1 in. edge bore
No electrical or low-voltage work required
Template and mounting hardware included
Ships LH - easily field reversed for RH doors
-
Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
-
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
-
Number of Codes: Single access code—one easy-to-manage code for all users
-
Programming: Lock is easily programmed via keypad without removing the lock from the door
-
Accessibility Standard: Americans with Disabilities Act (ADA)
-
Brand: Dormakaba
-
Finishes: US26D (626) Satin Chrome
-
Lock Function: Combination Entry Function with Key Override
-
Usage: Heavy Duty
-
Latch: 1/2" throw - 1-1/8" x 2-1/4" face
-
Strike: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
-
Fire-Rating: UL and cUL Listed – up to 3 Hours
-
ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
-
Keyway: Kaba 90
