Dormakaba 5010XSWL-26D-41 Simplex 5010 Mechanical Pushbutton Exit Device Lever Trim with Key Override

Product Description

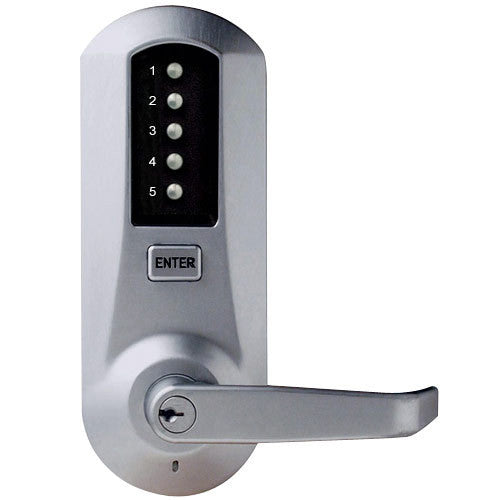

The DORMAKABA 5010XSWL-26D-41 Simplex 5010 is a mechanical pushbutton exit device lever trim with key override. This heavy-duty lock eliminates the costs of managing keys and cards. It features a single access code, programmed via the keypad without removing it from the door, and allows free egress. It is suitable for heavy-duty usage and is ADA compliant.

• Mechanical pushbutton lock eliminates the costs of managing keys and cards
• Fully mechanical lock eliminates battery replacements
• Lock is easily programmed via keypad without removing the lock from the door

Product Highlights

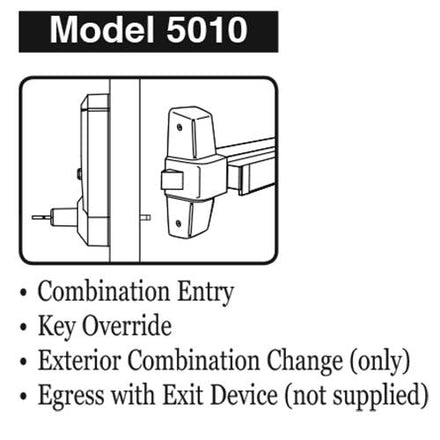

The Simplex 5010 provides exterior access by combination and allows free egress. It is easily programmed and field-reversible.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 5010XSWL-26D-41
• Country of Origin: United States

Technical Specifications

• Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing the lock from the door
• Handing: Completely Reversible
• Key Override: KIL, Schlage C Keyway
• Accessibility Standard: Americans with Disabilities Act (ADA)
• Brand: Dormakaba
• Finishes: US26D (626) Satin Chrome
• Lock Function: Combination Entry Function with Key Override
• Usage: Heavy Duty
• Fire-Rating: UL and cUL Listed – up to 3 Hours
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Door Thickness: 1-3/4"
• Function: Exit Trim
• Locking Device Options: Rim Exit Device : Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)
• Key Override Option: Kaba Cylinder(Schlage C keyway) K-I-L included
• Finish: Satin Chrome 26D (626) - Dark Bronze 744 housings and levers with Brass accents
• Certification and Standards: Americans with Disabilities Act (ADA) ANSI/BHMA 156.2 and 156.13, Grade 1 Certification; weather resistant, wear tested for extensive use in indoor and outdoor application 3-hour UL/ULC fire rating for "A" label doors and installed with an existing fire-rated exit device (where applicable)
• MPN: 5010XSWL-26D-41
• SKU: 5010XSWL-26D-41
• Condition: New
