Dormakaba 203037-000-01 L1000 Service Kit Rh

Product Description

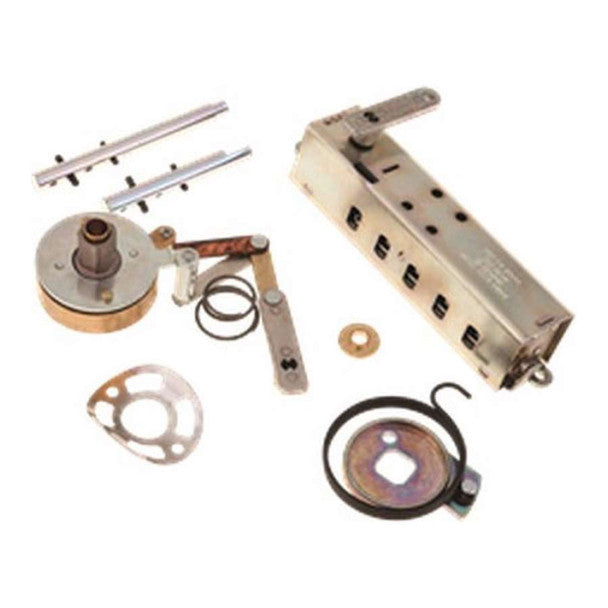

The DORMAKABA 203037-000-01 is a right-hand service kit for the Simplex L1000 Series mechanical pushbutton lockset. This kit supplies the internal components needed to restore or rebuild a worn or damaged L1000 right-hand lock assembly. It covers the core mechanical elements of the lock: the chamber shaft bushing, clutch assembly, combination chamber, drive shaft configurations for both key-override and non-key-override setups, lever return spring, fixed sleeve, and stop plate. Locksmiths and door hardware technicians install this kit during scheduled maintenance or corrective service on L1000 units.

This service kit is intended for right-hand door applications using the Simplex L1000 Series pushbutton lock. It addresses common wear points in the mechanical combination mechanism and lever return system. The included drive shaft options accommodate both standard no-key-override and key-override configurations, making the kit suitable for a range of L1000 field installations without requiring separate part orders.

Key Features

• Right-hand configuration — components are specific to RH door handing
• Includes chamber shaft bushing and clutch assembly for combination mechanism rebuild
• Covers both key-override and no-key-override drive shaft variants
• Lever return spring and fixed sleeve support proper lever reset after actuation
• Stop plate included for complete mechanical reassembly

Compatibility

Designed as a factory service kit for DORMAKABA Simplex L1000 Series right-hand mechanical pushbutton locksets.

Installation Notes

Installation should be performed by a qualified locksmith or door hardware technician familiar with Simplex L1000 Series disassembly and reassembly procedures. Disengage the door from service and ensure no load is on the lever mechanism before disassembling the lock body. Follow the manufacturer service documentation for correct component sequencing, particularly when selecting the appropriate drive shaft for the existing key-override configuration. Verify proper lever return and combination function before returning the door to service.

Technical Specifications

• Door Handing: Right Hand
• Compatible Series: Simplex L1000
• Key Override: Both configurations included (key override and no key override)

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 203037-000-01
